RKP-C110
Rackmount computers with 11th Gen Intel® Core™ Tiger Lake processor base model and high-interface models
- 1U rackmount computer with fanless design
- 11th Gen Intel® Celeron®, or Intel® Core™ i5 or i7 processor
- Rich interface options for up to 12 LAN ports and up to 10 serial ports
- Standard form factor that fits most field applications
- Unified front-panel connectivity design for easy access of interfaces
- -30 to 60°C operating temperature range
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionaleModele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C1-TRackmount 1U computer with Intel® Celeron® 6305E processor, 4 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureOut of stock Garanție: 7.725,00 RON9.501,75 RONIntră în cont pentru a vedea prețurile RKP-C110-C1-TRackmount 1U computer with Intel® Celeron® 6305E processor, 4 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:7.725,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C1-8L-TRackmount 1U computer with Intel® Celeron® 6305E processor, 12 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureOut of stock Garanție: 10.015,00 RON12.318,45 RONIntră în cont pentru a vedea prețurile RKP-C110-C1-8L-TRackmount 1U computer with Intel® Celeron® 6305E processor, 12 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:10.015,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C1-8C-TRackmount 1U computer with Intel® Celeron® 6305E processor, 4 LAN ports, 10 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureOut of stock Garanție: 8.635,00 RON10.621,05 RONIntră în cont pentru a vedea prețurile RKP-C110-C1-8C-TRackmount 1U computer with Intel® Celeron® 6305E processor, 4 LAN ports, 10 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:8.635,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C1-2L4C-TRackmount 1U computer with Intel® Celeron® 6305E processor, 6 LAN ports, 6 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureOut of stock Garanție: 9.125,00 RON11.223,75 RONIntră în cont pentru a vedea prețurile RKP-C110-C1-2L4C-TRackmount 1U computer with Intel® Celeron® 6305E processor, 6 LAN ports, 6 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:9.125,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C5-TRackmount 1U computer with Intel® Core™ i5-145G7E processor, 4 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureÎn stocGaranție: 10.800,00 RON13.284,00 RONIntră în cont pentru a vedea prețurile RKP-C110-C5-TRackmount 1U computer with Intel® Core™ i5-145G7E processor, 4 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate:În stocPreț net:10.800,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C5-8L-TRackmount 1U computer with Intel® Core™ i5-145G7E processor, 12 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureOut of stock Garanție: 13.205,00 RON16.242,15 RONIntră în cont pentru a vedea prețurile RKP-C110-C5-8L-TRackmount 1U computer with Intel® Core™ i5-145G7E processor, 12 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:13.205,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C5-8C-TRackmount 1U computer with Intel® Core™ i5-145G7E processor, 4 LAN ports, 10 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureOut of stock Garanție: 12.025,00 RON14.790,75 RONIntră în cont pentru a vedea prețurile RKP-C110-C5-8C-TRackmount 1U computer with Intel® Core™ i5-145G7E processor, 4 LAN ports, 10 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:12.025,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C5-2L4C-TRackmount 1U computer with Intel® Core™ i5-145G7E processor, 6 LAN ports, 6 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureOut of stock Garanție: 12.300,00 RON15.129,00 RONIntră în cont pentru a vedea prețurile RKP-C110-C5-2L4C-TRackmount 1U computer with Intel® Core™ i5-145G7E processor, 6 LAN ports, 6 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:12.300,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C7-TRackmount 1U computer with Intel® Core™ i7-185G7E processor, 4 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureÎn stocGaranție: 12.575,00 RON15.467,25 RONIntră în cont pentru a vedea prețurile RKP-C110-C7-TRackmount 1U computer with Intel® Core™ i7-185G7E processor, 4 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate:În stocPreț net:12.575,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C7-8L-TRackmount 1U computer with Intel® Core™ i7-185G7E processor, 12 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureÎn stocGaranție: 15.020,00 RON18.474,60 RONIntră în cont pentru a vedea prețurile RKP-C110-C7-8L-TRackmount 1U computer with Intel® Core™ i7-185G7E processor, 12 LAN ports, 2 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate:În stocPreț net:15.020,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C7-8C-TRackmount 1U computer with Intel® Core™ i7-185G7E processor, 4 LAN ports, 10 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureOut of stock Garanție: 13.720,00 RON16.875,60 RONIntră în cont pentru a vedea prețurile RKP-C110-C7-8C-TRackmount 1U computer with Intel® Core™ i7-185G7E processor, 4 LAN ports, 10 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:13.720,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C7-2L4C-TRackmount 1U computer with Intel® Core™ i7-185G7E processor, 6 LAN ports, 6 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureOut of stock Garanție: 13.915,00 RON17.115,45 RONIntră în cont pentru a vedea prețurile RKP-C110-C7-2L4C-TRackmount 1U computer with Intel® Core™ i7-185G7E processor, 6 LAN ports, 6 serial ports, 8 DIs, 8 DOs, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 2 SSD slots, 12/24 VDC power input, -30 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:13.915,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C7-2HV-TRackmount 1U, i7-1185G7E, LANx4, COMx2, 8 DI, 8 DO, USBx3, 1 VGA, 1 HDMI, 2 SSD slots, dual 100-240 VAC/VDC, -30 do 60°COut of stock Garanție: 25.285,00 RON31.100,55 RONIntră în cont pentru a vedea prețurile RKP-C110-C7-2HV-TRackmount 1U, i7-1185G7E, LANx4, COMx2, 8 DI, 8 DO, USBx3, 1 VGA, 1 HDMI, 2 SSD slots, dual 100-240 VAC/VDC, -30 do 60°CDisponibilitate: Out of stockPreț net:25.285,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C5-2HV-TRackmount 1U, i5-1145G7E, LANx4, COMx2, 8 DI, 8 DO, USBx3, 1 VGA, 1 HDMI, 2 SSD slots, dual 100-240 VAC/VDC, -30 do 60°COut of stock Garanție: 22.695,00 RON27.914,85 RONIntră în cont pentru a vedea prețurile RKP-C110-C5-2HV-TRackmount 1U, i5-1145G7E, LANx4, COMx2, 8 DI, 8 DO, USBx3, 1 VGA, 1 HDMI, 2 SSD slots, dual 100-240 VAC/VDC, -30 do 60°CDisponibilitate: Out of stockPreț net:22.695,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C3-2HV-TRackmount 1U, i3-1115G4E, LANx4, COMx2, 8 DI, 8 DO, USBx3, 1 VGA, 1 HDMI, 2 SSD slots, dual 100-240 VAC/VDC, -30 do 60°COut of stock Garanție: 21.340,00 RON26.248,20 RONIntră în cont pentru a vedea prețurile RKP-C110-C3-2HV-TRackmount 1U, i3-1115G4E, LANx4, COMx2, 8 DI, 8 DO, USBx3, 1 VGA, 1 HDMI, 2 SSD slots, dual 100-240 VAC/VDC, -30 do 60°CDisponibilitate: Out of stockPreț net:21.340,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRKP-C110-C1-2HV-TRackmount 1U, Celeron 6305E, LANx4, COMx2, 8 DI, 8 DO, USBx3, 1 VGA, 1 HDMI, 2 SSD slots, dual 100-240 VAC/VDC, -30 do 60°COut of stock Garanție: 17.375,00 RON21.371,25 RONIntră în cont pentru a vedea prețurile RKP-C110-C1-2HV-TRackmount 1U, Celeron 6305E, LANx4, COMx2, 8 DI, 8 DO, USBx3, 1 VGA, 1 HDMI, 2 SSD slots, dual 100-240 VAC/VDC, -30 do 60°CDisponibilitate: Out of stockPreț net:17.375,00 RON
Descriere
Introduction
The RKP-C110 rackmount computers are powered by 11th Gen Intel® Celeron®, or Intel® Core™ i5 or i7 processor. The computers come with a rich set of interface options including up to up to 12 Gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports, and 8 digital inputs and 8 digital outputs. The communication interfaces are all located on the front panel for enabling easy access and convenient expansion for industrial applications. Two hand-rotated 2.5” SSD storages and an outer replaceable RTC battery design deliver a reliable, durable, and versatile platform for a more user-friendly option. Designed as 1U standard form factor fanless rackmount computers with an operating temperature range of -30 to 60°C and a build-in TPM 2.0 module, the RKP-C110 computers are ideal as reliable and secure computing platforms for industrial applications in extreme operating environments.
Appearance
Front view

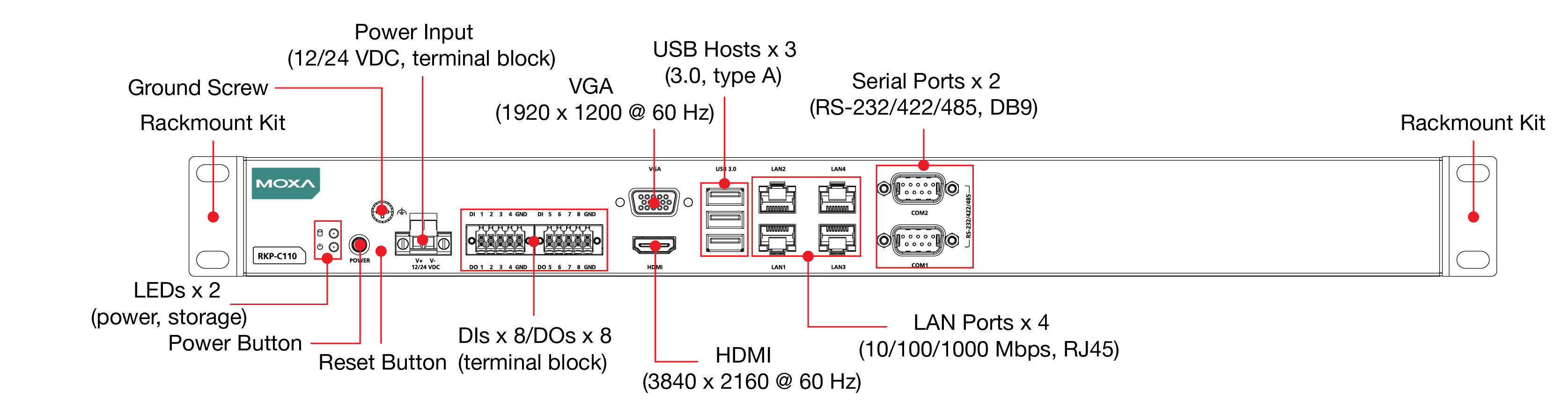

RKP-C110-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 Models

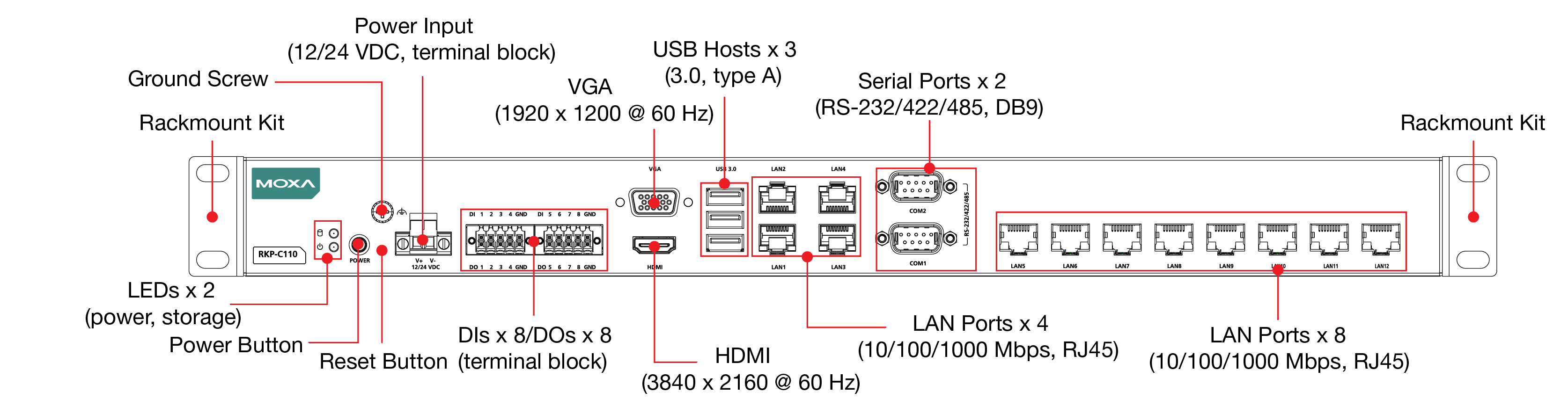

RKP-C110-C1-8L-T/C5-8L-T/C7-8L-T Models

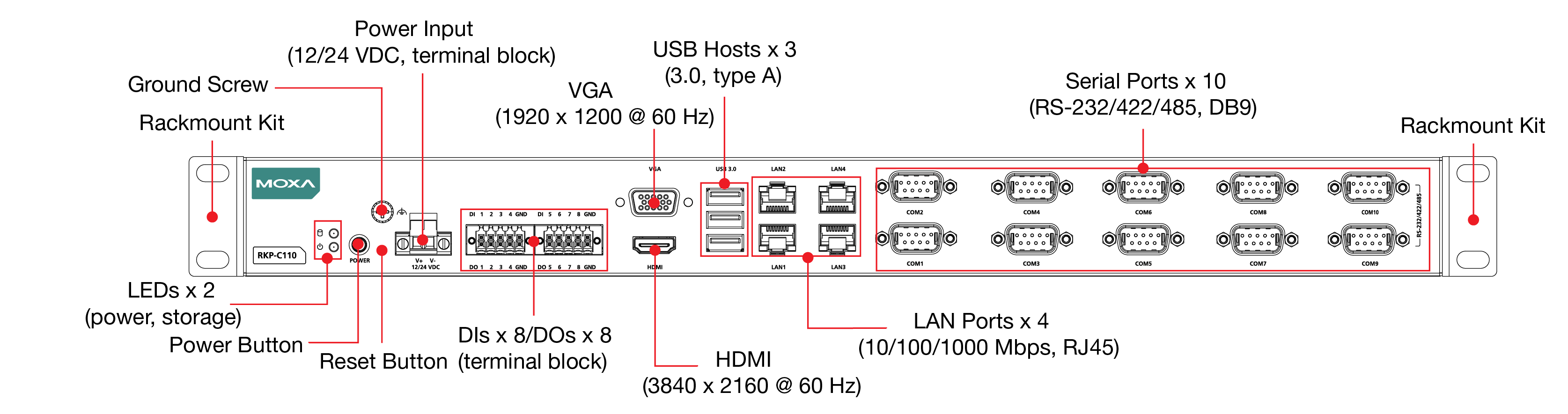

RKP-C110-C1-8C-T/C5-8C-T/C7-8C-T Models
RKP-C110-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T Models

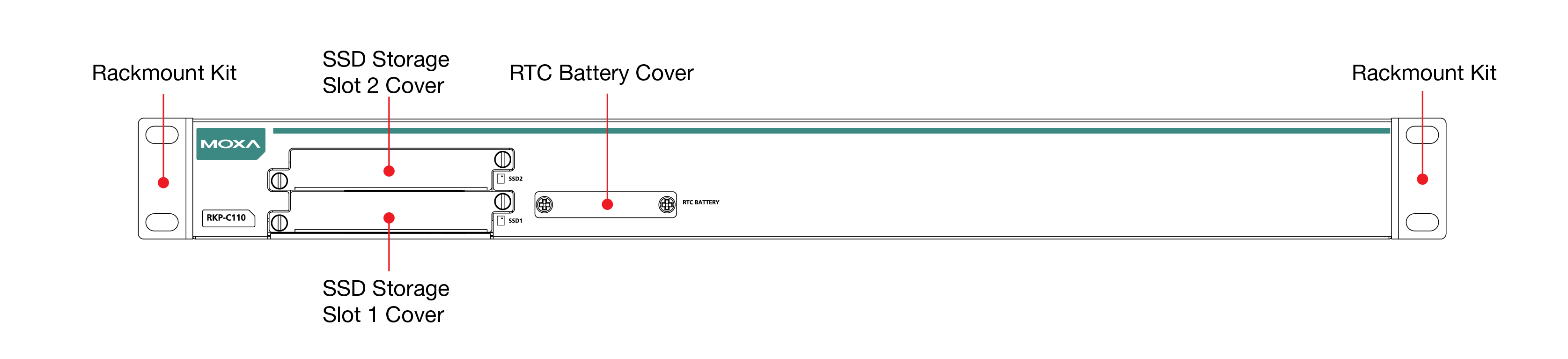

Rear View
Specificație tehnică
- Computer
| CPU | RKP-C110-C1 Series: Intel® Celeron® 6305E "(Dual core, 4M cache, 1.80 GHz) RKP-C110-C5 Series: Intel® Core™ Processor i5-1145G7E (Quad core, 8M cache, 2.60 GHz, Base:1.50 GHz) RKP-C110-C7 Series: Intel® Core™ Processor i7-1185G7E (Quad core, 12M cache, 2.80 GHz, Base:1.80 GHz) |
| System Memory Slot | SODIMM DDR4 slots x 1, up to 32 GB max. |
| System Memory Pre-installed | 8 GB DDR4 |
| Storage Slot | 2.5-inch SSD slots x 2 (SATAIII interface) RAID 0/1 support |
| Storage Pre-installed | 8 GB |
| Supported OS | Windows Images and Drivers Supported: - Windows 10 IoT Enterprise LTSC 2021 64-bit - Windows 11 Professional 64-bit Linux Drivers Supported: - Debian 11 (kernel 5.10) - Ubuntu 22.04 LTS (kernel 5.15) - RHEL 9 (kernel 5.14) |
| Graphics Controller | Intel® UHD Graphics |
- Computer Interface
| Ethernet Ports | RKP-C110-C1-8L-T/C5-8L-T/C7-8L-T Models: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12 RKP-C110-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T Models: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6 All Other Models: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4 |
| Serial Ports | RKP-C110-C1-8C-T/C5-8C-T/C7-8C-T Models: RS-232/422/485 ports x 10, software selectable (DB9 male) RKP-C110-C1-2L4C-T/C5-2L4C-TC7-2L4C-T Models: RS-232/422/485 ports x 6, software selectable (DB9 male) All Other Models: RS-232/422/485 ports x 2, software selectable (DB9 male) |
| USB 3.0 | USB 3.0 hosts x 3, type-A connectors |
| Digital Input | DIs x 8 |
| Digital Output | DOs x 8 |
| TPM | TPM v2.0 |
| Video Output | HDMI 2.0b x 1, (type A connector) VGA x 1, 15-pin D-sub connector (female) |
| Buttons | Reset button Power button |
- Ethernet Interface
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Serial Interface
| Baudrate | 50 bps to 115.2 kbps |
| Connector | DB9 male |
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Flow Control | RTS/CTS, XON/XOFF |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Digital Inputs
| Connector | Spring-type Euroblock terminal |
| Sensor Type | Dry contact |
| Dry Contact | Logic 0: Close to GND Logic 1: Open |
- Digital Outputs
| Connector | Spring-type Euroblock terminal |
| I/O Type | Sink |
| Current Rating | 200 mA per channel |
| Voltage | 0 to 24 VDC |
- LED Indicators
| System | Power x 1 Storage x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
- Power Parameters
| Input Voltage | 12/24 VDC |
| Power Connector | Screw-fastened Euroblock terminal |
| Power Consumption | 50 W |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP20 |
| Dimensions | 440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in) |
| Weight | RKP-C110-C1-8C-T/C5-8C-T/C7-8C-T Models: 3,610 g (7.95 Ib) RKP-C110-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T Models: 3,540 g (7.80 Ib) RKP-C110-C1-8L-T/C5-8L-T/C7-8L-T Models: 3,800 g (8.37 Ib) RKP-C110-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 Models: 3,350 g (7.38 Ib) |
| Installation | Rack mounting (standard 1U) |
- Environmental Limits
| Operating Temperature | -30 to 60°C (-22 to 140°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A BSMI |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz |
| Safety | UL 62368-1 (CB) BSMI |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| Package Drop Test | ISTA 1A |
| Package Vibration Test | ISTA 1A |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- Reliability
| Time Source | Built-in RTC (real-time clock) with lithium-battery backup |
| Automatic Reboot Trigger | Built-in WDT |
- MTBF
| Time | 493,336 hrs |
| Standards | Telcordia (Bellcore), GB |
- Warranty
| Warranty Period | 3 years |
| Details | See www.moxa.com/warranty |
