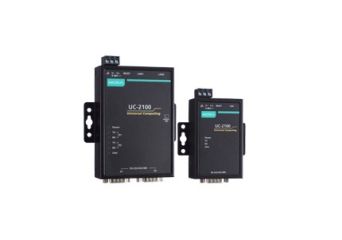

UC-2100

Arm Cortex-A8 600 MHz palm-sized IIoT gateway with 1 mini PCIe expansion slot for a wireless module

Producător: MOXA
Producător: MOXA
  • Armv7 Cortex-A8 600-1000 MHz processor
  • 1 or 2 auto-sensing 10/100 Mbps Ethernet ports
  • Gigabit Ethernet supported (UC-2112)
  • Up to 2 software-selectable RS-232/422/485 ports supporting all signals
  • Moxa Industrial Linux with 10-year superior long-term support
  • microSD socket for storage expansion (UC-2111, UC-2112)
  • Mini PCIe socket for Wi-Fi/cellular module (UC-2104)
  • -40 to 75°C wide-temperature model available with hazardous locations certification
Preț de la 1.025,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 7 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Descriere

The UC-2100 Series computing platform is designed for embedded data acquisition and processing applications. The computer comes with up to two software selectable RS-232/422/485 full-signal serial ports and single or dual Ethernet ports. This palm-sized series of Arm-based computing platforms includes a variety of models for a wide range of interface requirements, such as single or dual serial and Ethernet ports, Gigabit Ethernet, and wireless connections. These versatile communication capabilities allow users to efficiently adapt the UC‑2100 for a variety of complex communications solutions.

The UC-2100 Series has a built-in Cortex-A8 Arm-based processor that has been optimized for a variety of industrial solutions. With its flexible interface options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites and is a useful communication platform for many other large-scale deployments. Models designed for wide temperature applications are available for use in extreme environments such as those found in the oil and gas industry. Furthermore, all models use the Moxa Industrial Linux platform, which provides optimized software features and long-term support.

Specificație tehnică

  • Computer
CPU UC-2101-LX: Armv7 Cortex-A8 600 MHz
UC-2102-LX: Armv7 Cortex-A8 600 MHz
UC-2104-LX: Armv7 Cortex-A8 600 MHz
UC-2111-LX: Armv7 Cortex-A8 600 MHz
UC-2112-LX: Armv7 Cortex-A8 1 GHz
UC-2112-T-LX: Armv7 Cortex-A8 1 GHz
DRAM UC-2101-LX: 256 MB DDR3
UC-2102-LX: 256 MB DDR3
UC-2104-LX: 256 MB DDR3
UC-2111-LX: 512 MB DDR3
UC-2112-LX: 512 MB DDR3
UC-2112-T-LX: 512 MB DDR3
Pre-installed OS Moxa Industrial Linux (Debian 9, Kernel 4.4)
See www.moxa.com/MIL
Storage Pre-installed 8 GB eMMC
Storage Slot UC-2111-LX: Micro SD slots x 1
UC-2112-LX: Micro SD slots x 1
UC-2112-T-LX: Micro SD slots x 1
  • Computer Interface
Ethernet Ports UC-2101-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1
UC-2102-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
UC-2104-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1
UC-2111-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
UC-2112-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1, Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1
UC-2112-T-LX: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1, Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1
Serial Ports UC-2101-LX: RS-232/422/485 ports x 1, software selectable (DB9 male)
UC-2111-LX: RS-232/422/485 ports x 2, software selectable (DB9 male)
UC-2112-LX: RS-232/422/485 ports x 2, software selectable (DB9 male)
UC-2112-T-LX: RS-232/422/485 ports x 2, software selectable (DB9 male)
Console Port RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Expansion Slots UC-2104-LX: mPCIe slot x 1
Cellular Antenna Connector UC-2104-LX: SMA x 2
Number of SIMs UC-2104-LX: 1
SIM Format UC-2104-LX: Standard
Buttons Reset button, DIP switch for serial port configuration
  • Ethernet Interface
Magnetic Isolation Protection 1.5 kV (built-in)
  • Serial Interface
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Baudrate 50 bps to 921.6 kbps
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
ESD Protection 4 kV, for all signals
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  • LED Indicators
System Power x 1
LAN 2 per port (10/100 Mbps)
UC-2112-LX, UC-2112-T-LX: 2 per port (10/100/1000 Mbps)
Serial UC-2101-LX: 2 per port (Tx, Rx)
UC-2111-LX: 2 per port (Tx, Rx)
UC-2112-LX: 2 per port (Tx, Rx)
UC-2112-T-LX: 2 per port (Tx, Rx)
User Programmable UC-2101-LX: User x 1
UC-2102-LX: User x 2
UC-2111-LX: User x 1
UC-2112-LX: User x 1
UC-2112-T-LX: User x 1
Wireless Signal Strength UC-2104-LX: Cellular/Wi-Fi x 3
  • Physical Characteristics
Housing Metal
Installation Wall mounting, DIN-rail mounting (with optional kit)
Weight UC-2101-LX: 190 g (0.42 lb)
UC-2102-LX: 190 g (0.42 lb)
UC-2104-LX: 220 g (0.49 lb)
UC-2111-LX: 290 g (0.64 lb)
UC-2112-LX: 290 g (0.64 lb)
UC-2112-T-LX: 290 g (0.64 lb)
Dimensions (with ears) UC-2101-LX: 73 x 80 x 28 mm (2.87 x 3.15 x 1.10 in)
UC-2102-LX: 73 x 80 x 28 mm (2.87 x 3.15 x 1.10 in)
UC-2104-LX: 80 x 80 x 30.8 mm (3.15 x 3.15 x 1.21 in)
UC-2111-LX: 99 x 111 x 25.5 mm (3.90 x 4.37 x 1.00 in)
UC-2112-LX: 99 x 111 x 25.5 mm (3.90 x 4.37 x 1.00 in)
UC-2112-T-LX: 99 x 111 x 25.5 mm (3.90 x 4.37 x 1.00 in)
Dimensions (without ears) UC-2101-LX: 50 x 80 x 28 mm (1.97 x 3.15 x 1.10 in)
UC-2102-LX: 50 x 80 x 28 mm (1.97 x 3.15 x 1.10 in)
UC-2104-LX: 57 x 80 x 30.8 mm (2.24 x 3.15 x 1.21 in)
UC-2111-LX: 77 x 111 x 25.5 mm (3.03 x 4.37 x 1.00 in)
UC-2112-LX: 77 x 111 x 25.5 mm (3.03 x 4.37 x 1.00 in)
UC-2112-T-LX: 77 x 111 x 25.5 mm (3.03 x 4.37 x 1.00 in)
  • Environmental Limits
Operating Temperature UC-2101-LX: -10 to 60°C (14 to 140°F)
UC-2102-LX: -10 to 60°C (14 to 140°F)
UC-2104-LX: -10 to 70°C (14 to 158°F)
UC-2111-LX: -10 to 60°C (14 to 140°F)
UC-2112-LX: -10 to 60°C (14 to 140°F)
UC-2112-T-LX: -40 to 75°C (-40 to 167°F)
Storage Temperature UC-2101-LX: -20 to 70°C (-4 to 158°F)
UC-2102-LX: -20 to 70°C (-4 to 158°F)
UC-2104-LX: -20 to 70°C (-4 to 158°F)
UC-2111-LX: -20 to 70°C (-4 to 158°F)
UC-2112-LX: -20 to 70°C (-4 to 158°F)
UC-2112-T-LX: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Shock IEC 60068-2-27
Vibration 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
  • Power Parameters
Input Voltage 9 to 48 VDC
Input Current 0.45 A @ 9 VDC, 0.084 A @ 48 VDC
Power Consumption 4 W
  • MTBF
Time UC-2101-LX: 1,360,496 hrs
UC-2102-LX: 1,652,339 hrs
UC-2104-LX: 1,577,995 hrs
UC-2111-LX: 985,911 hrs
UC-2112-LX: 982,882 hrs
UC-2112-T-LX: 982,882 hrs
Standards Telcordia (Bellcore) Standard TR/SR
  • Reliability
Alert Tools External RTC (real-time clock)
Automatic Reboot Trigger External WDT (watchdog timer)
  • Standards and Certifications
Safety IEC 60950-1, UL 60950-1
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Hazardous Locations UC-2112-LX, UC-2112-T-LX: Class I Division 2, ATEX Zone 2
Green Product RoHS, CRoHS, WEEE
