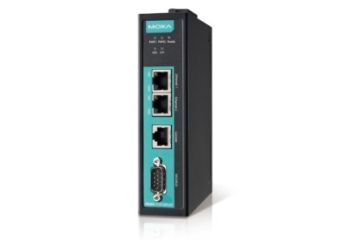

MGate 5105-MB-EIP

1-port MQTT-supported Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways

Producător: MOXA
Producător: MOXA
  • Connects fieldbus data to cloud through generic MQTT
  • Supports MQTT connection with built-in device SDKs to Azure/Alibaba Cloud
  • Protocol conversion between Modbus and EtherNet/IP
  • Supports EtherNet/IP Scanner/Adapter
  • Supports Modbus RTU/ASCII/TCP master/client and slave/server
  • Supports MQTT connection with TLS and certificate in JSON and Raw data format
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting and cloud data transmission for cost evaluation and analysis
  • microSD card for configuration backup/duplication and event logs, and data buffering when cloud connection is lost
  • -40 to 75°C wide operating temperature models available
  • Serial port with 2 kV isolation protection
  • Security features based on IEC 62443
Preț de la 3.035,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5



The MGate 5105-MB-EIP is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communications with IIoT applications, based on MQTT or third-party cloud services, such as Azure and Alibaba Cloud. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5105-MB-EIP as a Modbus master or slave to collect data and exchange data with EtherNet/IP devices. The latest exchange data will be stored in the gateway as well. The gateway converts stored Modbus data into EtherNet/IP packets so the EtherNet/IP scanner can control or monitor Modbus devices. The MQTT standard with supported cloud solutions on the MGate 5105-MB-EIP leverages advanced security, configuration, and diagnostics to troubleshoot technologies to deliver scalable and extensible solutions that are suitable for remote monitoring applications such as energy management and assets management.

Configuration Backup via microSD Card

The MGate 5105-MB-EIP is equipped with a microSD card slot. A microSD card can be used to back up both the system configuration and system log, and can be used to conveniently copy the same configuration to several MGate 5105-MP-EIP units. The configuration file stored in the microSD card will be copied to the MGate itself when the system is rebooted.

Effortless Configuration and Troubleshooting via Web Console

The MGate 5105-MB-EIP also provides a web console to make configuration easy without having to install an extra utility. Simply log in as an administrator to access all settings, or as a general user with read-only permission. Besides configuring basic protocol settings, you can use the web console to monitor I/O data values and transfers. In particular, I/O Data Mapping shows data addresses for both protocols in the gateway’s memory, and I/O Data View allows you to track data values for online nodes. Moreover, diagnostics and communication analysis for each protocol can also provide helpful information for troubleshooting.

Redundant Power Inputs

The MGate 5105-MB-EIP has dual power inputs for greater reliability. The power inputs allow simultaneous connection to 2 live DC power sources, so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus-to-EtherNet/IP gateways ideal for demanding industrial applications.

Specificație tehnică

  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 2
Auto MDI/MDI-X connection
Magnetic Isolation Protection 1.5 kV (built-in)
  • Ethernet Software Features
Industrial Protocols Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Scanner, EtherNet/IP Adapter, MQTT
Configuration Options Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console
Management ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MIB RFC1213, RFC1317
Time Management NTP Client
  • Serial Interface
Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
No. of Ports 1
Connector DB9 male
Serial Standards RS-232/422/485
Baudrate 50 bps to 921.6 kbps
Data Bits 7, 8
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 2
Flow Control RTS Toggle (RS-232 only), RTS/CTS
RS-485 Data Direction Control ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485 120 ohms
Isolation 2 kV (built-in)
  • Serial Signals
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • Serial Software Features
Configuration Options Serial Console
Industrial Protocols Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
  • Modbus RTU/ASCII
Mode Master, Slave
Functions Supported 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands 100
Input Data Size 2048 bytes
Output Data Size 2048 bytes
  • Modbus TCP
Mode Client (Master), Server (Slave)
Functions Supported 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections 16
Max. No. of Server Connections 32
Max. No. of Commands 100
Input Data Size 2048 bytes
Output Data Size 2048 bytes
  • EtherNet/IP
Mode Scanner, Adapter
CIP Objects Supported Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port
Max. No. of Scanner Connections 16 (for read-only), 1 (for read/write)
Max. No. of Adapter Connections 100
Input Data Size 496 bytes
Output Data Size 496 bytes
  • MQTT
Mode Publisher/Subscriber of MQTT, Azure IoT Hub Device, Alibaba IoT Platform Device
Version Supported v3.1.1
QoS Level QoS 0,1,2
Secure Transmission TLS (1.0, 1.1, 1.2) encryption with user's root CA, Client certificate, Private key
Max. No. of Data Tag 300 data tags
Max. No. of Message 20 messages
MQTT General Features Keep Alive, Retain Message, Last Will Message, Clean Session
  • Memory
microSD Slot Up to 32 GB (SD 2.0 compatible; Data buffering up to 2 GB)
  • Power Parameters
Input Voltage 12 to 48 VDC
Input Current 455 mA @ 12 VDC
Power Connector Screw-fastened Euroblock terminal
  • Relays
Contact Current Rating Resistive load: 2 A @ 30 VDC
  • Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Weight 507 g (1.12 lb)
  • Environmental Limits
Operating Temperature MGate 5105-MB-EIP: 0 to 60°C (32 to 140°F)
MGate 5105-MB-EIP-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
Safety EN 60950-1, UL 508
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class B
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
Hazardous Locations ATEX, Class I Division 2, IECEx
Freefall IEC 60068-2-32
Shock IEC 60068-2-27
Vibration IEC 60068-2-6, IEC 60068-2-64
  • MTBF
Time 859,422 hrs
Standards Telcordia SR332
