- Supports Auto Device Routing for easy configuration
- Supports route by TCP port or IP address for flexible deployment
- Connects up to 32 Modbus TCP servers
- Connects up to 31 or 62 Modbus RTU/ASCII slaves
- Accessed by up to 32 Modbus TCP clients (retains 32 Modbus requests for each Master)
- Supports Modbus serial master to Modbus serial slave communications
- Built-in Ethernet cascading for easy wiring
- 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC/ST connector)
- Emergency request tunnels ensure QoS control
- Embedded Modbus traffic monitoring for easy troubleshooting
- Serial port with 2 kV isolation protection (for “-I” models)
- -40 to 75°C wide operating temperature models available
- Supports redundant dual DC power inputs and 1 relay output
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
- Modele
- Accesorii
- Useful products
- Descriere
- Specificație tehnică
- Descarca documentatie
- Produse recomandate

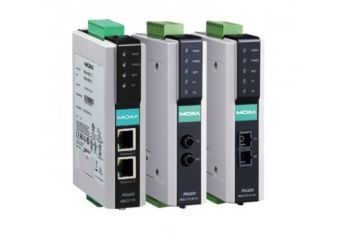

MGate MB3170 / MB3270
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB31701 Port RS-232/422/485 advanced Modbus TCP to Serial Communication GatewayÎn stocGaranție: 1.720,00 RON2.115,60 RONIntră în cont pentru a vedea prețurile MGate MB31701 Port RS-232/422/485 advanced Modbus TCP to Serial Communication GatewayDisponibilitate:În stocPreț net:1.720,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170I1 Port RS-232/422/485 advanced Modbus TCP to Serial Communication Gateway with 2 KV IsolationÎn stocGaranție: 2.015,00 RON2.478,45 RONIntră în cont pentru a vedea prețurile MGate MB3170I1 Port RS-232/422/485 advanced Modbus TCP to Serial Communication Gateway with 2 KV IsolationDisponibilitate:În stocPreț net:2.015,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB32702 Port RS-232/422/485 advanced Modbus TCP to Serial Communication GatewayÎn stocGaranție: 3.195,00 RON3.929,85 RONIntră în cont pentru a vedea prețurile MGate MB32702 Port RS-232/422/485 advanced Modbus TCP to Serial Communication GatewayDisponibilitate:În stocPreț net:3.195,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3270I2 Port RS-232/422/485 advanced Modbus TCP to Serial Communication Gateway with 2 KV IsolationÎn stocGaranție: 3.830,00 RON4.710,90 RONIntră în cont pentru a vedea prețurile MGate MB3270I2 Port RS-232/422/485 advanced Modbus TCP to Serial Communication Gateway with 2 KV IsolationDisponibilitate:În stocPreț net:3.830,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170-T1 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75?În stocGaranție: 2.480,00 RON3.050,40 RONIntră în cont pentru a vedea prețurile MGate MB3170-T1 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75?Disponibilitate:În stocPreț net:2.480,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3270-T2 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75?Out of stock Garanție: 4.165,00 RON5.122,95 RONIntră în cont pentru a vedea prețurile MGate MB3270-T2 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75?Disponibilitate: Out of stockPreț net:4.165,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170I-T1 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75?, with 2 KV IsolationÎn livrare Garanție: 2.920,00 RON3.591,60 RONIntră în cont pentru a vedea prețurile MGate MB3170I-T1 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75?, with 2 KV IsolationDisponibilitate: În livrarePreț net:2.920,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3270I-T2 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75?, with 2 KV IsolationOut of stock Garanție: 4.940,00 RON6.076,20 RONIntră în cont pentru a vedea prețurile MGate MB3270I-T2 Port Modbus TCP - Serial Comm. Gateway advanced, 3 in 1, -40~75?, with 2 KV IsolationDisponibilitate: Out of stockPreț net:4.940,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170I-M-SC1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors) and 2 KV optical isolation, 0 to 60°C operating temperatureOut of stock Garanție: 2.620,00 RON3.222,60 RONIntră în cont pentru a vedea prețurile MGate MB3170I-M-SC1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors) and 2 KV optical isolation, 0 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:2.620,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170I-M-SC-T1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors) and 2 KV optical isolation, -40 to 75°C operating temperatureOut of stock Garanție: 3.485,00 RON4.286,55 RONIntră în cont pentru a vedea prețurile MGate MB3170I-M-SC-T1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors) and 2 KV optical isolation, -40 to 75°C operating temperatureDisponibilitate: Out of stockPreț net:3.485,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170I-S-SC1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors) and 2 KV optical isolation, 0 to 60°C operating temperatureOut of stock Garanție: 3.035,00 RON3.733,05 RONIntră în cont pentru a vedea prețurile MGate MB3170I-S-SC1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors) and 2 KV optical isolation, 0 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:3.035,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170I-S-SC-T1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors) and 2 KV optical isolation, -40 to 75°C operating temperatureOut of stock Garanție: 3.990,00 RON4.907,70 RONIntră în cont pentru a vedea prețurile MGate MB3170I-S-SC-T1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors) and 2 KV optical isolation, -40 to 75°C operating temperatureDisponibilitate: Out of stockPreț net:3.990,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170-M-SC1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors), 0 to 60°C operating temperatureÎn livrare Garanție: 2.245,00 RON2.761,35 RONIntră în cont pentru a vedea prețurile MGate MB3170-M-SC1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors), 0 to 60°C operating temperatureDisponibilitate: În livrarePreț net:2.245,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170-M-SC-T1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors), -40 to 75°C operating temperatureOut of stock Garanție: 2.935,00 RON3.610,05 RONIntră în cont pentru a vedea prețurile MGate MB3170-M-SC-T1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (SC connectors), -40 to 75°C operating temperatureDisponibilitate: Out of stockPreț net:2.935,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170-M-ST1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (ST connectors), 0 to 60°C operating temperatureOut of stock Garanție: 2.245,00 RON2.761,35 RONIntră în cont pentru a vedea prețurile MGate MB3170-M-ST1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (ST connectors), 0 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:2.245,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170-M-ST-T1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (ST connectors), -40 to 75°C operating temperatureOut of stock Garanție: 2.935,00 RON3.610,05 RONIntră în cont pentru a vedea prețurile MGate MB3170-M-ST-T1-port advanced Modbus gateway with 1 100BaseF(X) multi-mode fiber port (ST connectors), -40 to 75°C operating temperatureDisponibilitate: Out of stockPreț net:2.935,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170-S-SC1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors), 0 to 60°C operating temperatureÎn stocGaranție: 2.555,00 RON3.142,65 RONIntră în cont pentru a vedea prețurile MGate MB3170-S-SC1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors), 0 to 60°C operating temperatureDisponibilitate:În stocPreț net:2.555,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3170-S-SC-T1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors), -40 to 75°C operating temperatureOut of stock Garanție: 3.350,00 RON4.120,50 RONIntră în cont pentru a vedea prețurile MGate MB3170-S-SC-T1-port advanced Modbus gateway with 1 100BaseF(X) single-mode fiber port (SC connectors), -40 to 75°C operating temperatureDisponibilitate: Out of stockPreț net:3.350,00 RON
Accesorii
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDIN rail power supply 20W 24V 1AÎn stocGaranție: 66,00 RON81,18 RONIntră în cont pentru a vedea prețurile DIN rail power supply 20W 24V 1ADisponibilitate:În stocPreț net:66,00 RON
Useful products
Switch fara management entry-level cu 5 porturi ethernet si carcasa din plastic
Descriere
The MGate MB3170 and MB3270 are 1 and 2-port Modbus gateways, respectively, that convert between Modbus TCP, ASCII, and RTU communications protocols. The gateways provide both serial-to-Ethernet communication and serial (master) to serial (slave) communications. In addition, the gateways support simultaneously connecting serial and Ethernet masters with serial Modbus devices. The MGate MB3170 and MB3270 Series gateways can be accessed by up to 32 TCP master/clients or connect to up to 32 TCP slave/servers. Routing through the serial ports can be controlled by IP address, TCP port number, or ID mapping. A featured priority control function allows urgent commands to obtain an immediate response. All models are rugged, DIN-rail mountable, and offer optional built-in optical isolation for serial signals.
Integrate TCP Masters without Altering the Modbus RTU/ASCII Network or Software
The MB3270 can integrate Modbus TCP with Modbus RTU/ASCII, without modifying the existing Modbus RTU/ASCII architecture or software. With the serial redirector function, a serial master can maintain direct access to serial slave devices through a specially mapped serial port. This allows the serial and TCP masters to access serial slaves simultaneously.
Optical Fiber for Ethernet Communication
The MGate MB3170 Series includes 100BaseFX fiber models that support transmission distances up to 4 km for multi-mode models, and up to 40 km for single-mode models. Optical fiber is well-suited for industrial applications because it is immune to electromagnetic noise and interference. For environments that experience high ground loop voltages, fiber provides the best isolation protection, and because there is no danger of sparking, optical fiber is safer than copper wire to use in hazardous environments.
Auto-Device Routing for Easy Configuration (Patent Pending)
Moxa’s Auto-Device Routing function helps eliminate many of the problems and inconveniences encountered by engineers who need to configure large numbers of Modbus devices. A single mouse click is all that’s required to set up a slave ID routing table and configure Modbus gateways to automatically detect Modbus requests from a supervisory control and data acquisition (SCADA) system. By removing the need to manually create the slave ID routing table, the Auto-Device Routing function saves engineers significant time and cost.
Priority Control for Urgent Commands (Patented)
As Modbus networks increase in size and complexity, the lag time between commands and responses becomes a major concern. Advanced models of the MB3000 Series provide a priority control function for urgent commands, allowing users to force certain commands to get an immediate response. Depending on your system’s requirements, different methods are available to define which commands receive priority.
Patent Numbers: (US/TW)
- US7,743,192 B2/I332618
- US7,725,635 B2/I321007
Specificație tehnică
- Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) | 2 (1 IP, Ethernet cascade) Auto MDI/MDI-X connection |
Magnetic Isolation Protection | 1.5 kV (built-in) |
- Ethernet Software Features
Industrial Protocols | Modbus TCP Client (Master), Modbus TCP Server (Slave) |
Configuration Options | Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console |
Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client |
MIB | RFC1213, RFC1317 |
Time Management | NTP Client |
- Serial Interface
No. of Ports | MGate MB3170 Series: 1 MGate MB3270 Series: 2 |
Connector | MGate MB3170/MB3170I: DB9 male for RS-232 and terminal block for RS-422/485 MGate MB3270/MB3270I: 2 x DB9 male |
Serial Standards | RS-232/422/485 (software selectable) |
Baudrate | 50 bps to 921.6 kbps |
Data Bits | 7, 8 |
Parity | None, Even, Odd, Space, Mark |
Stop Bits | 1, 2 |
Flow Control | DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS |
RS-485 Data Direction Control | ADDC® (automatic data direction control) |
Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
Terminator for RS-485 | 120 ohms |
Isolation | MGate MB3170I: 2 kV (I models) MGate MB3170I-T: 2 kV (I models) MGate MB3170I-M-SC: 2 kV (I models) MGate MB3170I-M-SC-T: 2 kV (I models) MGate MB3170I-S-SC: 2 kV (I models) MGate MB3170I-S-SC-T: 2 kV (I models) MGate MB3270I: 2 kV (I models) MGate MB3270I-T: 2 kV (I models) |
- Serial Signals
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Serial Software Features
Industrial Protocols | Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave |
- Modbus (Transparent)
Max. No. of Client Connections | 32 |
Max. No. of Server Connections | 32 |
- Power Parameters
Input Voltage | 12 to 48 VDC |
Input Current | MGate MB3170/MB3270: 435 mA @ 12 VDC MGate MB3170I/MB3170-S-SC/MB3170I-M-SC/MB3170I-S-SC: 555 mA @ 12 VDC MGate MB3270I/MB3170-M-SC/MB3170-M-ST: 510 mA @ 12 VDC |
Power Connector | 7-pin terminal block |
- Relays
Contact Current Rating | Resistive load: 1 A @ 30 VDC |
- Physical Characteristics
Housing | Plastic |
IP Rating | IP30 |
Dimensions (with ears) | 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in) |
Dimensions (without ears) | 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in) |
Weight | MGate MB3170 Series: 360 g (0.79 lb) MGate MB3270 Series: 380 g (0.84 lb) |
- Environmental Limits
Operating Temperature | MGate MB3170: 0 to 60°C (32 to 140°F) MGate MB3170-T: -40 to 75°C (-40 to 167°F) MGate MB3170-M-SC: 0 to 60°C (32 to 140°F) MGate MB3170-M-SC-T: -40 to 75°C (-40 to 167°F) MGate MB3170-M-ST: 0 to 60°C (32 to 140°F) MGate MB3170-M-ST-T: -40 to 75°C (-40 to 167°F) MGate MB3170-S-SC: 0 to 60°C (32 to 140°F) MGate MB3170-S-SC-T: -40 to 75°C (-40 to 167°F) MGate MB3170I: 0 to 60°C (32 to 140°F) MGate MB3170I-T: -40 to 75°C (-40 to 167°F) MGate MB3170I-M-SC: 0 to 60°C (32 to 140°F) MGate MB3170I-M-SC-T: -40 to 75°C (-40 to 167°F) MGate MB3170I-S-SC: 0 to 60°C (32 to 140°F) MGate MB3170I-S-SC-T: -40 to 75°C (-40 to 167°F) MGate MB3270: 0 to 60°C (32 to 140°F) MGate MB3270-T: -40 to 75°C (-40 to 167°F) MGate MB3270I: 0 to 60°C (32 to 140°F) MGate MB3270I-T: -40 to 75°C (-40 to 167°F) |
Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
Hazardous Locations | ATEX, Class I Division 2, IECEx |
Maritime | DNV-GL |
Freefall | IEC 60068-2-32 |
Shock | IEC 60068-2-27 |
Vibration | IEC 60068-2-6, IEC 60068-2-64 |
Safety | EN 60950-1, IEC 60950-1, IEC 62368-1, UL 62368-1 |
- MTBF
Time | MGate MB3170/MB3170I Series: 1,349,710 hrs MGate MB3170-M-SC/M-ST/S-SC Series: 1,175,887 hrs MGate MB3170I-M-SC Series: 768,343 hrs MGate MB3170I-S-SC Series: 763,707 hrs MGate MB3270/MB3270I Series: 1,236,384 hrs |
Standards | Telcordia SR332 |
