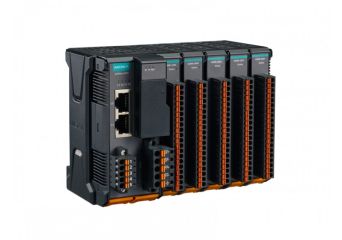

ioThinx 4510

Advanced modular remote I/O adapter with built-in serial ports

Producător: MOXA
Producător: MOXA
  • Easy tool-free installation and removal
  • Easy web configuration and reconfiguration
  • Built-in Modbus RTU gateway function
  • Supports Modbus/SNMP/RESTful API/MQTT
  • Supports SNMPv3, SNMPv3 Trap, and SNMPv3 Inform with SHA-2 encryption
  • Supports up to 32 I/O modules
  • -40 to 75°C wide operating temperature model available
Preț de la 1.720,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5




The ioThinx 4510 Series is an advanced modular remote I/O product with a unique hardware and software design, making it an ideal solution for a variety of industrial data acquisition applications. The ioThinx 4510 Series has a unique mechanical design that reduces the amount of time required for installation and removal, simplifying deployment and maintenance. In addition, the ioThinx 4510 Series supports Modbus RTU Master protocol for retrieving field site data from serial meters and also supports OT/IT protocol conversion.

Easy Tool-Free Installation and Removal

The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.

Easy Web Configuration/Reconfiguration

For modular remote I/O setups, one of the greatest difficulties is duplicating configuration settings to the current modules with different module combinations. After adding, moving, or deleting one of the modules, settings of the unchanged modules, including the Modbus address and RESTful APIs to the upper software, need to be reconfigured. The ioThinx 4510’s user-friendly web configuration tool was designed specifically to make configuration and reconfiguration easy; no reconfiguration efforts are required for the unchanged modules. In addition, the ioThinx 4510’s web interface supports module/channel unique names. This feature also applies to Modbus TCP, MQTT, and RESTful API, saving users considerable amounts of time on development and deployment.

Built-In Modbus RTU Gateway Function

The ioThinx 4510 supports Modbus RTU Master for retrieving field site data from serial meters. After collecting data, users can convert serial data to a variety of protocols, including Modbus TCP, SNMP, MQTT, and RESTful, allowing users to get field site data in their protocol of choice. This two-in-one design reduces system complexity and the amount of space required in the network topology, as well as overall installation time. In addition, you can extend the useful life of legacy devices by connecting them to Ethernet and accessing the devices using a preferred protocol.

I/O to IT/OT Protocol Conversion

The ioThinx 4510 does just what you need by supporting the most often-used protocols for retrieving I/O data. Most IT engineers use SNMPv1/v2c/v3, MQTT, or RESTful API protocols, but IA engineers are more familiar with Operational Technologies (OT), such as Modbus. The ioThinx 4510 makes it possible for both IT and OT engineers to conveniently retrieve data from the same I/O device. The ioThinx 4510 speaks several different protocols, including Modbus TCP for OT engineers, as well as SNMP, MQTT, and RESTful API for IT engineers. The ioThinx 4510 retrieves I/O data and converts the data to any of these protocols, allowing you to get your applications connected easily and effortlessly.

Specificație tehnică

  • Input/Output Interface
Buttons Reset button
Expansion Slots Up to 32 - Compatible with the ioThinx 4500 Series (45MR) Modules only
Isolation 3k VDC or 2k Vrms
  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 2, 1 MAC address (Ethernet bypass)
Magnetic Isolation Protection 1.5 kV (built-in)
  • Ethernet Software Features
Configuration Options Web Console (HTTP/HTTPS), Windows Utility (IOxpress)
Industrial Protocols Modbus TCP Server (Slave), RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, MQTT
Management SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, DHCP Client, IPv4, HTTP, UDP, TCP/IP
  • Serial Interface
Connector Spring-type Euroblock terminal
Serial Standards RS-232/422/485
No. of Ports 1 x RS-232/422 or 2 x RS-485 (2 wire)
Baudrate 1200 bps to 115.2 kbps
Flow Control RTS/CTS
Parity None, Even, Odd
Stop Bits 1, 2
Data Bits 8
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  • Serial Software Features
Industrial Protocols Modbus RTU Master
  • System Power Parameters
Power Connector Spring-type Euroblock terminal
No. of Power Inputs 1
Input Voltage 12 to 48 VDC
Power Consumption 800 mA @ 12 VDC
Over-Current Protection 1 A @ 25°C
Over-Voltage Protection 55 VDC
Output Current 1 A (max.)
  • Field Power Parameters
Power Connector Spring-type Euroblock terminal
No. of Power Inputs 1
Input Voltage 12/24 VDC
Over-Current Protection 2.5 A @ 25°C
Over-Voltage Protection 33 VDC
Output Current 2 A (max.)
  • Physical Characteristics
Wiring Serial cable, 16 to 28 AWG
Power cable, 12 to 26 AWG
Strip Length Serial cable, 9 to 10 mm
Power cable, 12 to 13 mm
Housing Plastic
Dimensions 42.3 x 99 x 75 mm (1.67 x 3.9 x 2.95 in)
Weight 173.5 g (0.382 lb)
Installation DIN-rail mounting
  • Environmental Limits
Operating Temperature ioThinx 4510: -20 to 60°C (-4 to 140°F)
ioThinx 4510-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Altitude Up to 4000 m - Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
  • Standards and Certifications
Safety UL 61010-2-201
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Shock IEC 60068-2-27
Vibration IEC 60068-2-6
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time 1,451,040 hrs
Standards Telcordia SR332
