Promocja cenowa na model HDR-15-5
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|

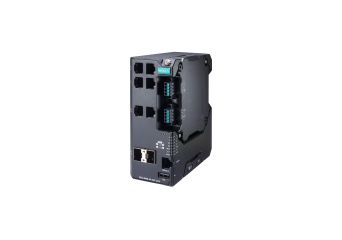

EDS-4008-4P-2GT-2GS-LVA Managed Gigabit Ethernet switch with 4 10/100BaseT(X) ports with 802.3bt PoE, 2 10/100/1000BaseT(X), 2 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, 48 VDC for PoE, -10 to 60°C operating temperature | Out of stock | Garanție: | 7.600,00 RON 9.348,00 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
EDS-4008-4P-2GT-2GS-LVB Managed Gigabit Ethernet switch with 4 10/100BaseT(X) ports with 802.3bt PoE, 2 10/100/1000BaseT(X), 2 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC,-10 to 60°C operating temperature | Out of stock | Garanție: | 8.260,00 RON 10.159,80 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
EDS-4008-4P-2GT-2GS-LVB-T Managed Gigabit Ethernet switch with 4 10/100BaseT(X) ports with 802.3bt PoE, 2 10/100/1000BaseT(X), 2 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature | În stoc | Garanție: | 8.980,00 RON 11.045,40 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
EDS-4008-4P-2GT-2GS-LVA-T Managed Gigabit Ethernet switch with 4 10/100BaseT(X) ports with 802.3bt PoE, 2 10/100/1000BaseT(X), 2 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, 48 VDC for PoE, -40 to 75°C operating temperature nou | Out of stock | Garanție: | 8.320,00 RON 10.233,60 RON | Intră în cont pentru a vedea prețurile |
nou
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
Small Form Factor pluggable transceiver with 100Base multi-mode, LC connector, 4Km, -40 to 85°C | În stoc | Garanție: | 610,00 RON 750,30 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
Small Form Factor pluggable transceiver with 100Base single-mode, LC connector, 40Km, -40 to 85°C | În stoc | Garanție: | 1.370,00 RON 1.685,10 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
Small Form Factor pluggable transceiver with 1000BaseLX, LC connector, 10 km, 0 to 60°C | În livrare | Garanție: | 1.285,00 RON 1.580,55 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, 0.5 km, 0 to 60°C | În stoc | Garanție: | 725,00 RON 891,75 RON | Intră în cont pentru a vedea prețurile |
Seria EDS-4008 este o gamă de switch-uri Fast Ethernet gestionate cu 8 porturi, cu opțiunea pentru patru porturi uplink de 1 Gbps sau două porturi de fibră optică 100M ST/SC. Această serie oferă, de asemenea, modele cu patru porturi Ethernet PoE 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+) și PoE conforme cu 802.3bt pentru conectarea dispozitivelor PoE cu lățime de bandă mare.
Tehnologiile Ethernet redundante, cum ar fi Turbo Ring, Turbo Chain și RSTP/STP, sporesc fiabilitatea sistemului dvs. și îmbunătățesc disponibilitatea rețelei dumneavoastră de bază. Seria EDS-4008 este proiectată special pentru aplicații solicitante, cum ar fi cele video și de monitorizare a proceselor, ITS și sisteme DCS, toate acestea putând beneficia de o rețea de bază scalabilă.Seria EDS-4008 este conformă cu certificările de securitate cibernetică industrială IEC 62443-4-2 și IEC 62443-4-1, care acoperă atât produsele securitatea produsului și cerințele privind ciclul de viață al dezvoltării securizate, ajutându-i pe clienții noștri să îndeplinească cerințele de conformitate ale rețelelor industriale securizate.
10/100BaseT(X) Ports (RJ45 connector) | EDS-4008-2GT-2GS-LV/-HV/-T models: 4 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
PoE Ports (10/100BaseT(X), RJ45 connector) | EDS-4008-4P-2GT-2GS-LVA/-LVB/-T models: 4 |
10/100/1000BaseT(X) Ports (RJ45 connector) | EDS-4008-4P-2GS-2GT-LVA/-LVB/-T models: 2 |
100/1000BaseSFP Slots | EDS-4008-4P-2GT-2GS-LVA/-LVB/-T models: 2 |
Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for flow control IEEE 802.3ad for Port Trunk with LACP IEEE 802.1Q for VLAN Tagging IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for authentication |
Filter | GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier |
Management | IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB |
MIB | P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9 |
Redundancy Protocols | STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP |
Security | Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, ACL |
Time Management | SNTP, NTP Server/Client, NTP Authentication |
Protocols | IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog |
MAC Table Size | 16 K |
Jumbo Frame Size | 9.216 KB |
Max. No. of VLANs | 256 |
VLAN ID Range | VID 1 to 4094 |
IGMP Groups | 512 |
Priority Queues | 4 |
Packet Buffer Size | 1 Mbits |
LED Indicators | PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC |
Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
USB Connector | USB Type A (Reserved) |
Alarm Contact Channels | 1, Relay output with current carrying capacity of 1 A @ 24 VDC |
Digital Input Channels | 1 +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
Buttons | Reset button |
DIP Switches | Turbo Ring, Master, Coupler, Reserve |
Connection | 2 removable 4-contact terminal block(s) |
Pre-installed Power Module | -LVA/-LVA-T models: PWR-101-LV-BP-I -LVB/-LVB-T models: PWR-103-LV-VB-I |
Input Voltage | -LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs -HV/-HV-T models: 110/220 VDC/VAC, Single input -LVA/-LVA-T models: 48 VDC, Redundant dual inputs -LVB/-LVB-T models: 12/24/48 VDC, Redundant dual inputs |
Operating Voltage | -LVA/-LVA-T models: 44 to 57 VDC (> 52 VDC for PoE+ output recommended) -LVB/-LVB-T models: 12 to 57 VDC (> 52 VDC for PoE+ output recommended) |
Input Current | -LVA/-LVA-T models: 48 VDC, 5.42 A -LVB/-LVB-T models: 12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A |
Power Consumption (Max.) | EDS-4008-4P-2GT-2GS-LVA(-T) models: Without PoE: 11.22 W With PoE: Max. 240 W for total PD power consumption @ 48 VDC input EDS-4008-4P-2GT-2GS-LVB(-T) models: Without PoE: 15.84 W With PoE: Max. 180 W for total PD power consumption @ 48 VDC input; Max. 150 W for total PD power consumption @ 24 VDC input; Max. 62 W for total PD power consumption @ 12 VDC input |
Max. PoE Power Output per Port | PoE models: 90 W |
Overload Current Protection | Supported |
Reverse Polarity Protection | Supported |
IP Rating | IP40 |
Dimensions | EDS-4008-4P-2GT-2GS(-T) models: 55 x 140 x 122.5 mm (2.2 x 5.51 x 4.82 in) |
Weight | EDS-4008-4P-2GT-2GS(-T) models: 840 g (1.85 lb) |
Installation | DIN-rail mounting, Wall mounting (with optional kit) |
Housing | Metal |
Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Industrial Cybersecurity | IEC 62443-4-1 IEC 62443-4-2 |
Safety | UL 61010-2-201, EN 62368-1 (LVD) |
EMC | EN 55032/35, EN 61000-6-2/-6-4 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
Vibration | IEC 60068-2-6 |
Shock | IEC 60068-2-27 |
Freefall | IEC 60068-2-32 |
Railway | EN 50121-4 |
Traffic Control | NEMA TS2 |
Power Substation | IEC 61850-3 IEEE 1613 Class 1 |
Hazardous Locations | -LV/-LV-T models: ATEX IECEx Class I Division 2 |
Maritime |
-LV/-LV-T, PoE/PoE-T models: DNV, ABS, NK, LR |
Time | EDS-4008-4P-2GT-2GS-LVA/-LVA-T models: 923,670 hrs EDS-4008-4P-2GT-2GS-LVB/-LVB-T models: 870,865 hrs hrs |
Standards | Telcordia SR332 |
Warranty Period | 5 years |
Details | See www.moxa.com/warranty |
Device | 1 x EDS-4008 Series switch |
Documentation | 1 x quick installation guide 1 x product notice, Simplified Chinese 1 x product certificates of quality inspection, Simplified Chinese 1 x warranty card |
