CP-132EL/EL-I

2-port RS-422/485 PCI Express boards with optional 2 kV isolation

Producător: MOXA
Producător: MOXA
  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software
Preț de la 640,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Descriere

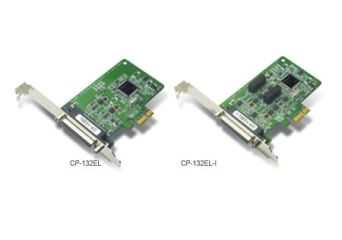

The CP-132EL and CP-132EL-I are 2-port PCI Express boards designed for industrial automation applications that require a long-distance, multipoint, PC-based data acquisition solution.

RS-485 Multidrop for up to 31 Devices Within 1.2 km

The CP-132EL/EL-I boards have two RS-422/485 serial ports, each of which can achieve data rates up to 921.6 kbps. In RS-485 mode, the boards can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, choose the CP-132EL-I model, which comes with 2 kV electrical isolation protection to prevent equipment damage.

Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operating systems, and the CP-132EL/EL-I boards are no exception. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.



Specificație tehnică

  • Serial Interface
Comm. Controller 16C550C compatible
Bus PCI Express 1.0
Connector DB25 female
FIFO 128 bytes
Max. No. of Boards per PC 8
No. of Ports 2
Serial Standards RS-422, RS-485
Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control None, XON/XOFF
Isolation CP-132EL-I-DB9M: 2 kV
  • Serial Signals
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  • Serial Software Features
Windows Drivers DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6, QNX 6
  • Power Parameters
Input Current CP-132EL-DB9M: 548 mA @ 3.3 VDC
CP-132EL-I-DB9M: 636 mA @ 3.3 VDC
  • Physical Characteristics
Dimensions CP-132EL-DB9M: 67.21 x 101.97 mm (2.65 x 4.08 in)
CP-132EL-I-DB9M: 67.21 x 103.97 mm (2.65 x 4.16 in)
  • LED Interface
LED Indicators Built-in Tx, Rx LEDs for each port
  • Environmental Limits
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature (package included) -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class B
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time CP-132EL-DB9M: 4,147,133 hrs
CP-132EL-I-DB9M: 1,681,099 hrs
Standards Telcordia (Bellcore) Standard TR/SR
