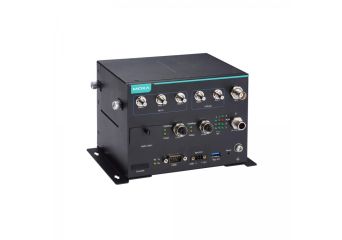

UC-8540
Arm Cortex-A7 dual-core 1 GHz train-to-ground computer with 2 mini PCIe expansion slots for wireless modules
Producător: MOXA
Producător: MOXA
- Supports 1 WWAN connection with 2 SIM card slots
- Supports 1 WLAN (IEEE 802.11b/g/n/ac) connection
- Single-panel I/O design for reduced installation space and easier maintenance
- Front-side access panel for easy maintenance
- Isolated 24 to 110 VDC power input with power-ignition function suitable for vehicle applications
- EN 50155 Tx (-40 to 70°C) operating temperature for harsh environments
- Complies with all EN 50155 mandatory test items
Preț de la 11.655,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareUC-8540-LXArm-based Vehicle-to-ground computing platform with multiple WWAN ports, with 2 mPCIe slots, and Linux pre-installedOut of stock Garanție: 11.655,00 RON14.335,65 RONIntră în cont pentru a vedea prețurile UC-8540-LXArm-based Vehicle-to-ground computing platform with multiple WWAN ports, with 2 mPCIe slots, and Linux pre-installedDisponibilitate: Out of stockPreț net:11.655,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareUC-8540-T-LXArm-based Vehicle-to-ground computing platform with wide operating temerature multiple WWAN ports, with 2 mPCIe slots, conformal coating, and Linux pre-installedOut of stock Garanție: 14.110,00 RON17.355,30 RONIntră în cont pentru a vedea prețurile UC-8540-T-LXArm-based Vehicle-to-ground computing platform with wide operating temerature multiple WWAN ports, with 2 mPCIe slots, conformal coating, and Linux pre-installedDisponibilitate: Out of stockPreț net:14.110,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareUC-8540-T-CT-LXArm-based Vehicle-to-ground computing platform with wide operating temerature multiple WWAN ports, with 2 mPCIe slots, and Linux pre-installedOut of stock Garanție: 17.155,00 RON21.100,65 RONIntră în cont pentru a vedea prețurile UC-8540-T-CT-LXArm-based Vehicle-to-ground computing platform with wide operating temerature multiple WWAN ports, with 2 mPCIe slots, and Linux pre-installedDisponibilitate: Out of stockPreț net:17.155,00 RON
Descriere
Moxa’s UC-8540 is an innovative computing platform designed specifically for transportation applications. Its single-sided I/O design is ideal for vehicle applications, which typically do not have enough room for installing communication devices. Front-side access makes it easy to install or change SIM cards and wiring cables. Users can install or change wireless modules, mSATA cards, and the RTC battery from the top or the bottom for easy maintenance.
The UC-8540 has 1 miniPCIe slot with USB signal to support a 4G/LTE module, and 1 slot with PCIe/USB signal to support a Wi-Fi module. The 4G/LTE module has two SIM card slots, which can be used to enable redundant cellular network communications or geo-fencing SIM card selection by leveraging the built-in MIRF 2.0, a Moxa device remote-management platform with wireless management.
The UC-8540 can be used as a communication-centric computing platform in applications such as vehicle-to-ground communication gateway, TCMS T2G (train-to-ground) gateway, mobile condition monitoring unit, Ethernet Consist Network T2G gateway, and onboard wireless automated fare collection unit.
The UC-8540 uses an open platform based on Debian 8 with Linux kernel 4.1, allowing solution providers to manage software packages via Debian’s APT (advanced packaging tools), or develop software applications with Moxa’s API Library and GNU C Library.
Specificație tehnică
- Computer
| CPU | Armv7 Cortex-A7 dual-core 1 GHz |
| Storage Pre-installed | 8 GB eMMC |
| Supported OS | Linux Debian 8 (Linux kernel v4.1) |
| System Memory Pre-installed | 1 GB DDR3L |
| Storage Slot | mSATA slots x 1, internal mini-PCIe socket |
- Computer Interface
| Expansion Slots | mPCIe slot x 2 |
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2 |
| Cellular Antenna Connector | QMA x 2 |
| USB 3.0 | USB 3.0 hosts x 1, type-A connectors |
| Wi-Fi Antenna Connector | QMA x 3 |
| Serial Ports | RS-232/422/485 ports x 1, software selectable (DB9 male) |
| Number of SIMs | 2 |
| Console Port | RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1) |
| GPS Antenna Connector | TNC x 1 |
| SIM Format | Micro |
- Input/Output Interface
| Buttons | Reset button |
- LED Indicators
| System | Power x 1 System Ready x 1 Programmable x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Wireless Signal Strength | Cellular/Wi-Fi x 6 |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- GPS Interface
| Heading Accuracy | 0.3 degrees |
| Industrial Protocols | NMEA 0183, version 4.0 (V2.3 or V4.1 configurable), UBX, RTCM |
| Receiver Types | 72-channel u-blox M8 engine |
| Time Pulse | 0.25 Hz to 10 MHz |
| Velocity Accuracy | 0.05 ms |
- Power Parameters
| Input Current | 1.66 A @ 24 VDC, 0.36 A @ 110 VDC |
| Input Voltage | 24 to 110 VDC |
| Power Connector | M12 A-coded 4-pin male connector |
| Power Consumption | 40 W (max.) |
- Physical Characteristics
| Protection | UC-8540-T-CT-LX: PCB conformal coating |
| Dimensions (with ears) | 190 x 120 x 125 mm (7.46 x 4.72 x 4.92 in) |
| Dimensions (without ears) | 160 x 120 x 120 mm (6.30 x 4.72 x 4.72 in) |
| Housing | Metal |
| Installation | Wall mounting |
| IP Rating | IP40 |
| Weight | Product only: 1,600 g (3.53 lb) |
- Environmental Limits
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | Standard Models: -25 to 55°C (-13 to 131°F) Wide Temp. Models: -40 to 70°C (-40 to 158°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
- Standards and Certifications
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Railway | EN 50121-4, EN 50155 |
| Railway Fire Protection | EN 45545-2 |
| Safety | EN 62368-1, IEC 62368-1 |
| Shock | IEC 60068-2-27, IEC 61373, EN 50155 |
| Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
