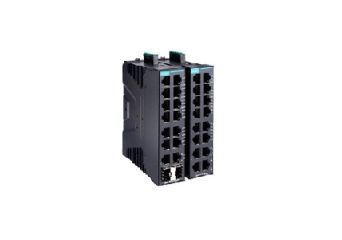

SDS-3016

Switch industrial inteligent cu 14+2G porturi Gigabit Ethernet

  • Suportă IEEE 802.1D-2004 și IEEE 802.1w STP/RSTP pentru redundanță rapidă a rețelei
  • IEEE 802.1Q VLAN pentru a facilita planificarea rețelei
  • Suportă configuratorul de backup automat ABC-02-USB pentru backup rapid al event log și al configurației. Poate permite, de asemenea, comutarea rapidă a dispozitivului și actualizarea firmware-ului
  • Avertizare automată prin excepție prin ieșire de releu
  • Blocarea porturilor nefolosite, SNMPv3 și HTTPS pentru a spori securitatea rețelei
  • Gestionarea conturilor pe bază de roluri pentru conturi de administrare și/sau conturi de utilizator auto-definite
  • Jurnalul local și posibilitatea de a exporta fișiere de inventar facilitează gestionarea inventarului
Preț de la 3.195,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 6 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale
16-portowy switch zarządzalny z MRP

SDS-3016

Modele

Filtru: ()
Filtre
Filtre()
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    Prețul tău
    SDS-3016
    Compact industrial smart Ethernet switch with 16 x 10/100BaseT(X) ports, dual 12/24/48 VDC power inputs, -10 to 60°C
    Out of stock Garanție:
    3.195,00 RON
    3.929,85 RON
    Intră în cont pentru a vedea prețurile
    SDS-3016
    Compact industrial smart Ethernet switch with 16 x 10/100BaseT(X) ports, dual 12/24/48 VDC power inputs, -10 to 60°C
    Disponibilitate: Out of stock
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    Prețul tău
    SDS-3016-T
    Compact industrial smart Ethernet switch with 16 x 10/100BaseT(X) ports, dual 12/24/48 VDC power inputs, -40 to 75°C
    Out of stock Garanție:
    3.600,00 RON
    4.428,00 RON
    Intră în cont pentru a vedea prețurile
    SDS-3016-T
    Compact industrial smart Ethernet switch with 16 x 10/100BaseT(X) ports, dual 12/24/48 VDC power inputs, -40 to 75°C
    Disponibilitate: Out of stock
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    Prețul tău
    SDS-3016-2GTX
    Compact industrial smart Ethernet switch system with 14 x 10/100BaseT(X) ports, 2 x 10/100/1000BaseT(X) ports, -10 to 60°C operating temperature, dual 12/24/48VDC power inputs
    În livrare Garanție:
    3.530,00 RON
    4.341,90 RON
    Intră în cont pentru a vedea prețurile
    SDS-3016-2GTX
    Compact industrial smart Ethernet switch system with 14 x 10/100BaseT(X) ports, 2 x 10/100/1000BaseT(X) ports, -10 to 60°C operating temperature, dual 12/24/48VDC power inputs
    Disponibilitate: În livrare
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    Prețul tău
    SDS-3016-2GTX-T
    Compact industrial smart Ethernet switch system with 14 x 10/100BaseT(X) ports, 2 x 10/100/1000BaseT(X) ports, -40 to 75°C operating temperature, dual 12/24/48VDC power inputs
    Out of stock Garanție:
    3.720,00 RON
    4.575,60 RON
    Intră în cont pentru a vedea prețurile
    SDS-3016-2GTX-T
    Compact industrial smart Ethernet switch system with 14 x 10/100BaseT(X) ports, 2 x 10/100/1000BaseT(X) ports, -40 to 75°C operating temperature, dual 12/24/48VDC power inputs
    Disponibilitate: Out of stock
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    Prețul tău
    SDS-3016-2GSFP
    Compact industrial smart Ethernet switch system with 14 x 10/100BaseT(X) ports, 2 x 100/1000BaseSFP ports, -10 to 60°C operating temperature, dual 12/24/48VDC power inputs
    În stoc
    Garanție:
    3.530,00 RON
    4.341,90 RON
    Intră în cont pentru a vedea prețurile
    SDS-3016-2GSFP
    Compact industrial smart Ethernet switch system with 14 x 10/100BaseT(X) ports, 2 x 100/1000BaseSFP ports, -10 to 60°C operating temperature, dual 12/24/48VDC power inputs
    Disponibilitate:
    În stoc
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    Prețul tău
    SDS-3016-2GSFP-T
    Compact industrial smart Ethernet switch system with 14 x 10/100BaseT(X) ports, 2 x 100/1000BaseSFP ports, -40 to 75°C operating temperature, dual 12/24/48VDC power inputs
    Out of stock Garanție:
    3.720,00 RON
    4.575,60 RON
    Intră în cont pentru a vedea prețurile
    SDS-3016-2GSFP-T
    Compact industrial smart Ethernet switch system with 14 x 10/100BaseT(X) ports, 2 x 100/1000BaseSFP ports, -40 to 75°C operating temperature, dual 12/24/48VDC power inputs
    Disponibilitate: Out of stock

Accesorii

Descriere

Switchul Ethernet inteligent SDS-3016 este produsul ideal pentru inginerii IA și constructorii de mașini de automatizare pentru a-și face rețelele compatibile cu viziunea Industrie 4.0. Dând viață mașinilor și cabinetelor de control, switchul inteligent simplifică sarcinile zilnice prin configurarea și instalarea sa ușoară. În plus, poate fi monitorizat și este ușor de întreținut pe parcursul întregului ciclu de viață al produsului.

Cele mai frecvent utilizate protocoale în automatizare - inclusiv EtherNet/IP, PROFINET și Modbus TCP - sunt încorporate în switchul SDS-3016 pentru a oferi o performanță operațională și o flexibilitate îmbunătățite, făcându-l controlabil și vizibil de la HMI-urile de automatizare. De asemenea, suportă o serie de funcții de gestionare utile, inclusiv IEEE 802.1Q VLAN, port mirroring, SNMP, avertizare prin releu și o interfață grafică web multilingvă.

Specificație tehnică

Input/Output Interface

Alarm Contact Channels

1
Relay output with current carrying capacity of 1 A @ 24 VDC

Buttons

Reset button

Digital Input Channels

1

Digital Inputs

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

14
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

10/100/1000BaseT(X) Ports (RJ45 connector)

2 (SDS-3016-2GTX Series)
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

100/1000BaseSFP Ports

2 (SDS-3016-2GSFP Series)

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service

Ethernet Software Features

Industrial Protocols

EtherNet/IP
Modbus TCP
PROFINET IO Device

Management

Back Pressure Flow Control
DHCP Client
Flow control
IPv4/IPv6
LLDP
Port Mirror
SNMP Inform
SNMPv1/v2c/v3
Syslog

MIB

RFC1213
Ethernet-like MIB
IF MIB
LLDP MIB
Bridge MIB
Q-BRIDGE MIB

Redundancy Protocols

RSTP
STP
MRP

Security

Broadcast storm protection
HTTPS/SSL
SNMPv3
Port Lock

Time Management

NTP Server/Client
SNTP

Filter

802.1Q VLAN

Rotary Switch Configuration

Industrial Profile

Indicator Mode
0 Modbus TCP profile (Default)
1 PROFINET profile enabled
2 PROFINET profile and DHCP client enabled
3 EtherNet/IP profile enabled
4 EtherNet/IP profile and DHCP client enabled
Others Reserved (has the same behavior as Indicator 0)

Switch Properties

MAC Table Size

8 K

Max. No. of VLANs

8

VLAN ID Range

VID 1 to 4094

Packet Buffer Size

3 Mbits

USB Interface

Storage Port

USB Type A

LED Interface

LED Indicators

PWR1, PWR2, STATE, FAULT, 10/100M, 1000M (TP Port)

Power Parameters

Connection

2 removable 4-contact terminal block(s)

Input Voltage

12/24/48/-48 VDC
Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Input Current

SDS-3016-2GTX series: 12-48 VDC, 0.858 A (max.)
SDS-3016-2GSFP series: 12-48 VDC, 0.99 A (max.)

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Metal

IP Rating

IP40

Dimensions

36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)

Weight

590 g (1.3 lb)

Installation

DIN-rail mounting

Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/35
EN 61000-6-2/-6-4

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF: 30 A/m

Safety

EN 62368-1
UL 61010-2-201

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

MTBF

Time

1,109,179 hrs

Standards

Telcordia (Bellcore), GB

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Package Contents

Device

1 x SDS-3016 Series switch

Installation Kit

4 x cap, plastic, for RJ45 port

Documentation

1 x product certificates of quality inspection, Simplified Chinese
1 x product notice, Simplified Chinese
1 x quick installation guide
1 x warranty card
