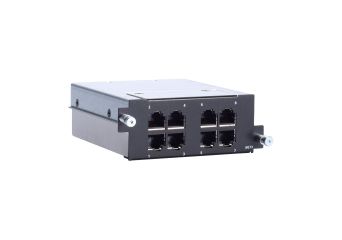

RM-G4000

Ethernet modules for RKS-G4028 modular managed switches

Producător: MOXA
Producător: MOXA
  •  -40 to 75°C operating temperature range
  •  IEC 61850-3 and IEEE 1613 compliant
Preț de la 2.340,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 15 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Descriere

The RM-G4000 series modules extend the functionality of the RKS-G4000 series Ethernet switches. This series includes both Gigabit and Fast Ethernet modules while supporting up to 8 ports with different types of transmission media and connectors such as RJ45 copper, RJ45 PoE, multi-mode and single-mode SC, ST, SFP optical. What's more, PoE models of the RKS-G4000 series are provided with high-power PoE support through RM-G4000-8GPoE modules. In addition, all modules provide PTP support according to IEEE 1588 which allows precise time synchronization in the network.

Specificație tehnică

  • Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector) RM-G4000-8GTX: 8
10/100BaseT(X) Ports (RJ45 connector) RM-G4000-8TX: 8
RM-G4000-4MSC2TX: 2
RM-G4000-2MSC4TX: 4
RM-G4000-4MST2TX: 2
RM-G4000-2MST4TX: 4
RM-G4000-4SSC2TX: 2
RM-G4000-2SSC4TX: 4
100/1000BaseSFP Slots RM-G4000-8GSFP: 8
100BaseSFP Slots RM-G4000-8SFP: 8
100BaseFX Ports (multi-mode SC connector) RM-G4000-6MSC: 6
RM-G4000-4MSC2TX: 4
RM-G4000-2MSC4TX: 2
100BaseFX Ports (multi-mode ST connector) RM-G4000-6MST: 6
RM-G4000-4MST2TX: 4
RM-G4000-2MST4TX: 2
100BaseFX Ports (single-mode ST connector) RM-G4000-6SSC: 6
RM-G4000-4SSC2TX: 4
RM-G4000-2SSC4TX: 2
PoE Ports (10/100/1000BaseT(X), RJ45 connector) RM-G4000-8GPoE: 8
PoE Ports (10/100BaseT(X), RJ45 connector) RM-G4000-8PoE: 8
Optical Fiber
  • Physical Characteristics
Weight RM-G4000-2SSC4TX: 400 g (0.88 lb)
RM-G4000-6MST: 400 g (0.88 lb)
RM-G4000-8TX: 300 g (0.66 lb)
RM-G4000-8SFP: 400 g (0.88 lb)
RM-G4000-8GTX: 300 g (0.66 lb)
RM-G4000-2MSC4TX: 400 g (0.88 lb)
RM-G4000-4SSC2TX: 400 g (0.88 lb)
RM-G4000-4MST2TX: 400 g (0.88 lb)
RM-G4000-2MST4TX: 400 g (0.88 lb)
RM-G4000-4MSC2TX: 400 g (0.88 lb)
RM-G4000-8GSFP: 400 g (0.88 lb)
RM-G4000-6MSC: 400 g (0.88 lb)
RM-G4000-6SSC: 400 g (0.88 lb)
RM-G4000-8PoE: 500 g (1.10 lb)
RM-G4000-8GPoE: 500 g (1.10 lb)
  • MTBF
Time RM-G4000-8TX: 12,132,675 hrs
RM-G4000-8SFP: 3,005,803 hrs
RM-G4000-8GTX: 12,132,675 hrs
RM-G4000-8GSFP: 3,005,803 hrs
RM-G4000-6MSC: 2,183,161 hrs
RM-G4000-6MST: 2,183,161 hrs
RM-G4000-6SSC: 2,183,161 hrs
RM-G4000-4MSC2TX: 2,469,891 hrs
RM-G4000-4MST2TX: 2,469,891 hrs
RM-G4000-4SSC2TX: 2,469,891 hrs
RM-G4000-2MSC4TX: 2,891,502 hrs
RM-G4000-2MST4TX: 2,891,502 hrs
RM-G4000-2SSC4TX: 2,891,502 hrs
RM-G4000-8PoE: 2,063,404 hrs
RM-G4000-8GPoE: 2,063,404 hrs
Standards Telcordia (Bellcore), GB
  • Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
