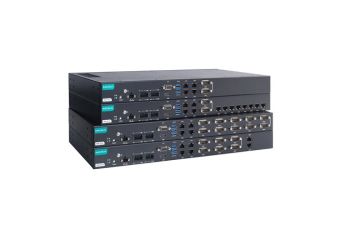

main product photo

RKP-A110

Rackmount 1U computers with Elkhart Lake Intel Atom® X Series processor base model and high-interface models

  • 1U rackmount computer with fanless design
  • Intel Atom® X Series processor
  • Rich interface options for up to 12 LAN ports and up to 10 serial ports
  • Standard form factor that fits most field applications
  • Unified front-panel connectivity design for easy access of interfaces
  • -30 to 60°C operating temperature range
Preț de la 6.740,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 8 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale
RKP-A110

RKP-A110

Modele

Descriere

Introduction

The RKP-A110 rackmount computers are powered by an Intel Atom® X Series processor. The computers come with a rich set of interface options including up to 12 gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports, and 8 digital inputs and 8 digital outputs. The communication interfaces are all located on the front panel, enabling easy access and convenient expansion for industrial applications. Two hand-rotated 2.5” SSD storage drives and an external replaceable RTC battery design deliver a reliable, durable, and versatile yet user-friendly computing platform.

Designed as 1U fanless rackmount computers with an operating temperature range of -30 to 60°C and a build-in TPM 2.0 module, the RKP-A110 computers are ideal as secure and reliable computing platforms for industrial applications in extreme operating environments.



Appearance

Front view

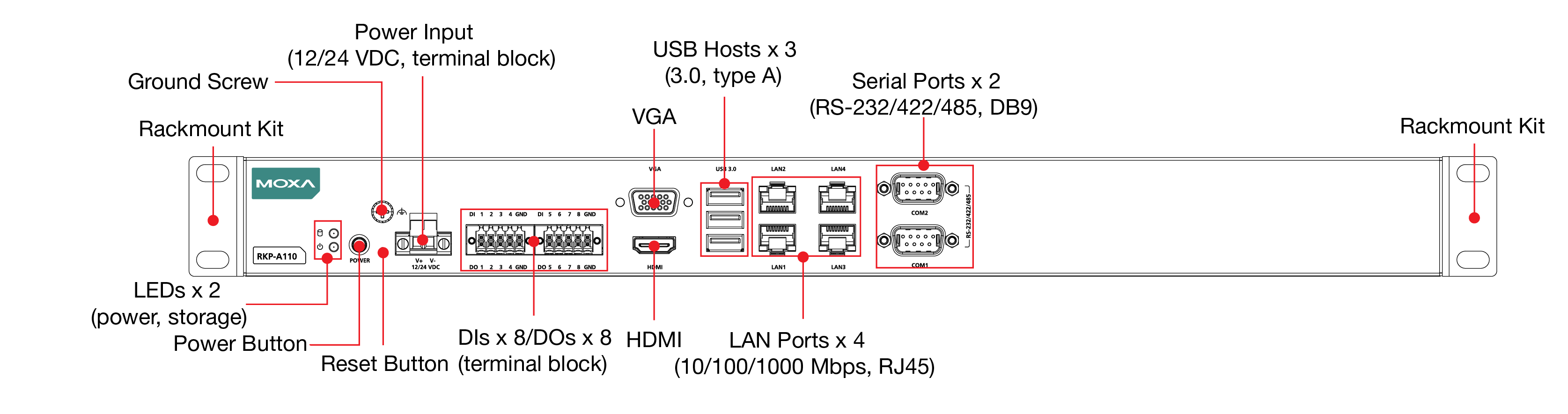

RKP-A110-E2-T/E4-T/E2-T-Win10/E4-T-Win10 Models

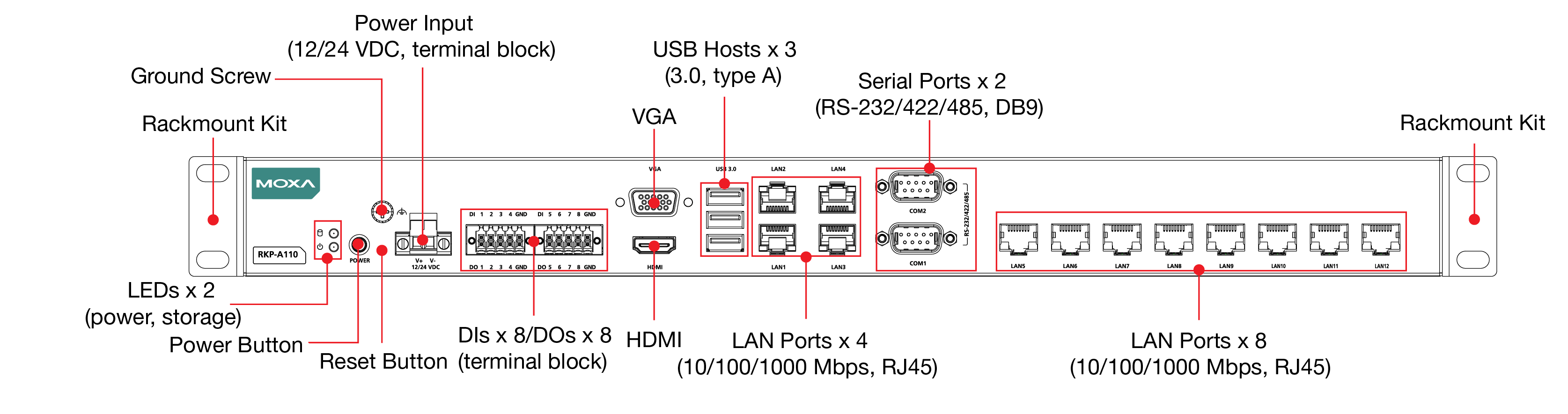

RKP-A110-E2-8L-T/A110-E4-8L-T Models

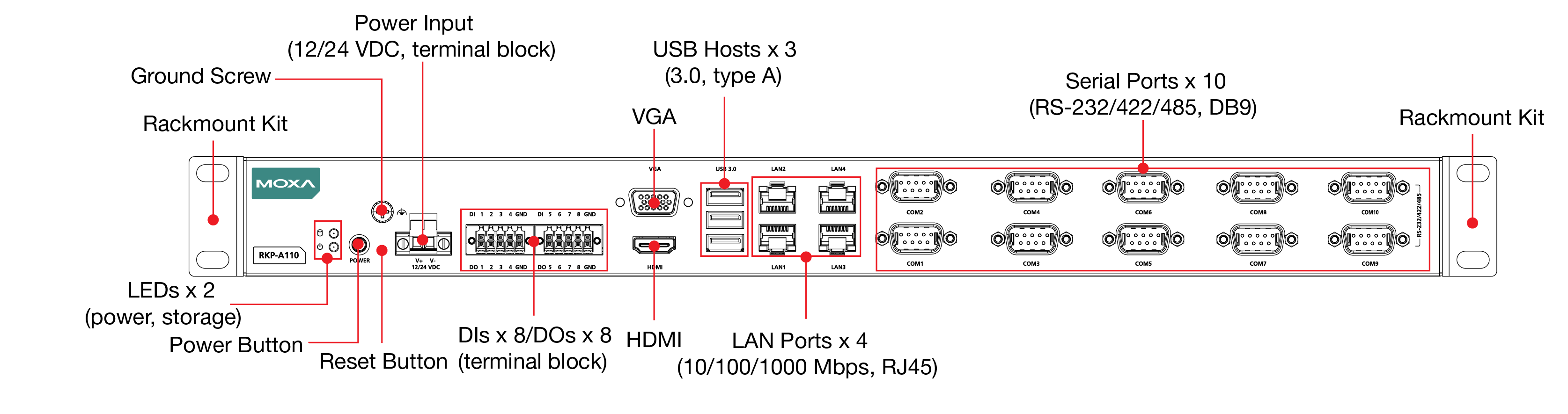

RKP-A110-E2-8C-T/A110-E4-8C-T Models

RKP-A110-E2-2L4C-T/E4-2L4C-T Models

Rear View

Specificație tehnică

  • Computer
CPU RKP-A110-E2 Models:
Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)
RKP-A110-E4 Models:
Intel Atom® x6425E processor (Quad core, 1.5M cache, 2.00 GHz)
System Memory Slot SODIMM DDR4 slots x 1, up to 32 GB max.
System Memory Pre-installed 8 GB DDR4
Storage Slot 2.5-inch SSD slots x 2 (SATAIII interface)
Storage Pre-installed RKP-A110-E2-T-Win10/E4-T-Win10: 64 GB SSD
Supported OS Windows Images and Drivers Supported:
- Windows 10 IoT Enterprise LTSC 2021 64-bit
- Windows 11 Professional 64-bit

Linux Drivers Supported:
- Debian 11 (kernel 5.10)
- Ubuntu 22.04 LTS (kernel 5.15)
- RHEL 9 (kernel 5.14)
Graphics Controller Intel® UHD Graphics
  • Computer Interface
Ethernet Ports RKP-A110-E2-8L-T/E4-8L-T Models:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12
RKP-A110-E2-2L4C-T/E4-2L4C-T Models:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6
RKP-A110-E2-T/E4-T/E2-8C-T/E4-8C-T/E2-T-Win10/E4-T-Win10 Models:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Serial Ports RKP-A110-E2-8C-T/E4-8C-T Models:
RS-232/422/485 ports x 10, software selectable (DB9 male)
RKP-A110-E2-2L4C-T/4-2L4C-T Models:
RS-232/422/485 ports x 6, software selectable (DB9 male)
RKP-A110-E2-T/E4-T/E2-8L-T/E4-8L-T/E2-T-Win10/E4-T-Win10 Models:
RS-232/422/485 ports x 2, software selectable (DB9 male)
USB 3.0 USB 3.0 hosts x 3, type-A connectors
Digital Input DIs x 8
Digital Output DOs x 8
TPM TPM v2.0
Video Output HDMI 2.0b x 1, (type A connector)
VGA x 1, 15-pin D-sub connector (female)
Buttons Reset button Power button
  • Ethernet Interface
Magnetic Isolation Protection 1.5 kV (built-in)
  • Serial Interface
Baudrate 50 bps to 115.2 kbps
Connector DB9 male
Data Bits 5, 6, 7, 8
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
Flow Control RTS/CTS, XON/XOFF
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • Digital Inputs
Connector Spring-type Euroblock terminal
Sensor Type Dry contact
Dry Contact Logic 0: Close to GND Logic 1: Open
Voltage 0 to 24 VDC
  • Digital Outputs
Connector Spring-type Euroblock terminal
I/O Type Sink
Current Rating 20 mA per channel
Voltage 0 to 24 VDC
  • LED Indicators
System Power x 1 Storage x 1
LAN 2 per port (10/100/1000 Mbps)
  • Power Parameters
Input Voltage 12/24 VDC
Power Connector Screw-fastened Euroblock terminal
Power Consumption 50 W
  • Physical Characteristics
Housing Metal
IP Rating IP20
Dimensions 440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in)
Weight RKP-A110-E2-8C-T/E4-8C-T/E2-2L4C-T/E4-2L4C-T Models:3,520 g (7.76 lb)
RKP-A110-E2-8L-T/E4-8L-T Models:3,510 g (7.74 lb)
RKP-A110-E2-T/E4-T/E2-T-Win10/E4-T-Win10 Models:3,330 g (7.34 lb)
Installation Rack mounting (standard 1U)
  • Environmental Limits
Operating Temperature -30 to 60°C (-22 to 140°F)
Storage Temperature -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/35
EMI CISPR 32, FCC Part 15B Class A BSMI
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
Safety UL 62368-1 (CB) BSMI
Shock IEC 60068-2-27
Vibration IEC 60068-2-64
Package Drop Test ISTA 1A
Package Vibration Test ISTA 1A
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • Reliability
Time Source Built-in RTC (real-time clock) with lithium-battery backup
Automatic Reboot Trigger Built-in WDT
  • MTBF
Time 465,664 hrs
Standards Telcordia (Bellcore), GB
  • Warranty
Warranty Period 3 years
Details See www.moxa.com/warranty
