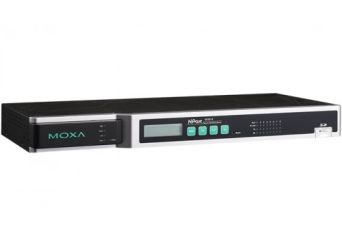

main product photo

NPort 6600

8/16/32-port RS-232/422/485 secure terminal servers

Producător: MOXA
Producător: MOXA
  •  LCD panel for easy IP address configuration (standard temp. models)
  •  Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  •  Nonstandard baudrates supported with high precision
  •  Port buffers for storing serial data when the Ethernet is offline
  •  Supports IPv6
  •  Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
  •  Generic serial commands supported in Command-by-Command mode
  •  Security features based on IEC 62443
Preț de la 5.615,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 17 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale
Serwer portów szeregowych

NPort 6600

Modele

Filtru: ()
Filtre
()

Accesorii

Useful products

EDS-2005-EL
EDS-2005-EL

Switch fara management entry-level cu 5 porturi ethernet si carcasa metalica

Preț de la 420,00 RON Net
Dacă se plasează comanda până în ora 15:00, coletul va fi expediat în aceeași zi În stoc
Vezi 2 model
EDS-2005-ELP
EDS-2005-ELP

Switch fara management entry-level cu 5 porturi ethernet si carcasa din plastic

Preț de la 255,00 RON Net
Dacă se plasează comanda până în ora 15:00, coletul va fi expediat în aceeași zi În stoc
Vezi 1 model

Descriere

The NPort® 6000 is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.

No Data Loss If Ethernet Connection Fails

The NPort® 6000 is a reliable device server that provides users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6000 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6000 will immediately release all data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.

LCD Panel Makes Configuration Easy

The NPort® 6600 has a built-in LCD panel for configuration. The panel displays the server name, serial number, and IP address, and any of the device server’s configuration parameters, such as IP address, netmask, and gateway address, can be updated easily and quickly.

Note: The LCD panel is only available with standard-temperature models.

Adjustable Resistor Values for RS-485 Communication

The NPort® 6600 provides adjustable termination, pull high, and pull low resistors for RS-485 communication. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high and pull low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values works for every environment, the NPort® 6600 allows manual adjustment of the resistor values for each serial port using built-in DIP switches.

Specificație tehnică

  • Memory
SD Slot Up to 32 GB (SD 2.0 compatible)
  • Input/Output Interface
Alarm Contact Channels Resistive load: 1 A @ 24 VDC
  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 1
Auto MDI/MDI-X connection
Magnetic Isolation Protection 1.5 kV (built-in)
  • Ethernet Software Features
Configuration Options Web Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console, Windows Utility
Management ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API Android 3.1.x and later
MIB MIB-II
Time Management SNTP Client
Unicast Routing RIPV1/V2, Static Route
Authentication Local Account Accessibility, RADIUS, TACACS+
  • Serial Interface
Connector 8-pin RJ45
No. of Ports NPort 6600-8 Series: 8
NPort 6600-16 Series: 16
NPort 6600-32 Series: 32
Serial Standards NPort 6610 Series: RS-232
NPort 6650 Series: RS-232, RS-422, RS-485
Secure Operation Modes Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
Standard Operation Modes Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
Console Port NPort 6600 Series: RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, DTR/DSR, XON/XOFF
Pull High/Low Resistor for RS-485 NPort 6650 Series: 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control NPort 6650 Series: Supports
Terminator for RS-485 NPort 6650 Series: 120 ohms
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  • Power Parameters
Input Current DC Models: 293 mA @ 48 VDC, 200 mA @ 88 VDC
AC Models: 140 mA @ 100 VAC (8 ports), 192 mA @ 100 VAC (16 ports), 285 mA @ 100 VAC (32 ports)
Input Voltage AC Models: 100 to 240 VAC
DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC), 110 VDC (88 to 300 VDC)
  • Reliability
Automatic Reboot Trigger Built-in WDT
Alert Tools Built-in buzzer and RTC (real-time clock)
  • Physical Characteristics
Housing Metal
Dimensions (with ears) 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)
Dimensions (without ears) 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
Weight NPort 6600-8 Series: 3,460 g (7.63 lb)
NPort 6600-16 Series: 3,580 g (7.89 lb)
NPort 6600-32 Series: 3,600 g (7.94 lb)
Interactive Interface LCD panel display (non-T models only)
Push buttons for configuration (non-T models only)
Installation Rack mounting (with optional kit)
  • Environmental Limits
Operating Temperature Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included) Standard/Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS NPort 6600 Series (except -48V/-HV models):
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power 1 kV; Signal 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs

NPort 6600-48V Series:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

NPort 6650-HV Series:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Safety UL 60950-1
Traffic Control NEMA TS2
Vibration IEC 60068-2-6
Freefall IEC 60068-2-34
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time NPort 6610-8 Series: 135,891 hrs
NPort 6610-16 Series: 102,373 hrs
NPort 6610-32 Series: 68,707 hrs
NPort 6650-8 Series: 636,600 hrs
NPort 6650-16 Series: 439,673 hrs
NPort 6650-32 Series: 310,078 hrs
NPort 6650-8-HV-T: 501,171 hrs
NPort 6650-16-HV-T: 380,006 hrs
NPort 6650-32-HV-T: 290,914 hrs
Standards Telcordia (Bellcore) Standard
