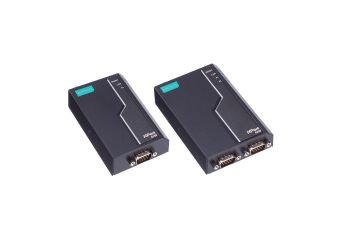

NPort 6150-G2 / 6250-G2

2nd Gen 1/2-port RS-232/422/485 secure terminal servers

Producător: MOXA
Producător: MOXA
  • Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Supports SSL certificate signing by RSA-4096 / ECC-521
  • Secure Boot only allows Moxa-authorized firmware to run on devices
  • Side-mount installation option and two-sided LEDs to meet all installation scenarios and enable system downsizing
  • Easy RS-485 configuration of serial interfaces with software-adjustable pull high/low resistor and terminator
Preț de la 1.525,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În livrare

Livrare gratuita de la 500 RON

Vezi 4 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

Introduction

Moxa has leveraged IEC 62443-4-1 secure development lifecycle process to develop a new generation of secure terminal servers. The NPort 6100- G2/6200-G2 Series secure terminal servers follow the IEC 62443-4-2 design and guidelines to securely connect your legacy serial devices to industrial networks. In addition, the user experience is enhanced based on Moxa’s 35 years of experience in the serial-connectivity field by providing versatile installation means for different space requirements and an easy troubleshooting tool for maintenance.



Secure Data Transmission

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6100-G2/6200-G2 secure terminal servers support the TLS and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6100-G2/6200-G2, you can be rest assured that serial data is transmitted securely over both private and public networks.



Easy Provisioning With Side-mount and Software-configurable Pull High/low Resistors and Terminator

In line with the trend for smaller systems and easier setup, the NPort® 6100-G2/6200-G2 secure terminal servers support side-mount installation and two-sided LEDs to fit in a variety of installation scenarios with the added benefit of reduction in the system size. The software-configurable pull high/low resistors and terminator function eliminate the requirement to open the chassis to adjust the pull high/low resistors or terminators, making it convenient for operators to install the devices at field sites.



Easy Troubleshooting With One-click Log Collection

At the maintenance stage, system errors may require you to call for help. Device vendors might take a long time to troubleshoot issues because they need to collect information and then hold discussions with the technical support team. The NPort 6100-G2/6200-G2 comes with a one-click log collection function to enable logging of data, which can provide all the data that a technical support team needs to quickly troubleshoot system issues.

Specificație tehnică

  • Memory
SD SlotNPort 6200-G2 models:
MicroSD card
Up to 2 TB (high speed, 25 Mbps)
  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)1
Auto MDI/MDI-X connection
Magnetic Isolation Protection1.5 kV (built-in)
  • Ethernet Software Features
Configuration OptionsWeb Console (HTTP/HTTPS)
Windows Utility
Device Search Utility (DSU)
MCC Tool
Serial Console
ManagementARP
DHCP Client
DNS
HTTPS
ICMP
IPv4/IPv6
SMTP
SMTPS
SNMPv1/v2c/v3
SNTP
TCP/IP
UDP
WINS
Windows Real COM DriversWindows 11, 10, 8.1, 8, and 7
Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2
Linux Real TTY DriversKernel versions 6.x, 5.x, and 4.x
Fixed TTY DriversmacOS versions: 14, 13, 12, and 11
Arm®-based Platform SupportWindows 11
Linux kernel 6.x, 5.x, and 4.x
macOS 14, 13, 12, and 11
Virtual MachineVMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x)
VMware Fusion (Windows on macOS 14, 13, 12, and 11)
Parallels Desktop (Windows on macOS 14, 13, 12, and 11)
Time ManagementSNTP Client
MIBMIB-II
RFC1213, RFC1317
Private MIB
Unicast RoutingRIPV1/V2
Static Route
  • Security Functions
Root of TrustSecure Boot
True Random Number Generator (TRNG)
Security Screws
AuthenticationLocal database
RADIUS
TACACS+
EncryptionAES-128
AES-256
ECC-256
ECC-384
ECC-521
HMAC
RSA-1024
RSA-2048
RSA-3072
RSA-4096
SHA-256
SHA-384
Security ProtocolsHTTPS (TLS 1.2)
SNMPv3
SSHv2
  • Serial Interface
ConnectorDB9 male
No. of PortsNPort 6150-G2 models: 1
NPort 6250-G2 models: 2
Serial StandardsRS-232
RS-422
RS-485
Secure Operation ModesReverse SSH
Secure Pair Connection
Secure Real COM
Secure TCP Client
Secure TCP Server
SSH
Standard Operation ModesDisabled
Pair Connection
SLIP
PPP
Real COM
Reverse Terminal
RFC2217
TCP Client
TCP Server
Terminal
UDP
Baudrate50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
Flow ControlNone
RTS/CTS
DTR/DSR
RTS Toggle
XON/XOFF
ParityNone, Even, Odd, Space, Mark
RS-485 Data Direction ControlAutomatic Data Direction Control (ADDC)
Terminator for RS-485120 ohms
Pull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohms (software–configurable)
  • Power Parameters
Input Current12 to 48 VDC, 160 mA (max.)
Input Voltage12 to 48 VDC
  • Reliability
Automatic Reboot TriggerBuilt-in WDT
Alert ToolsBuilt-in buzzer and RTC (real-time clock)
  • Physical Characteristics
HousingMetal
Dimensions (with ears)NPort 6150-G2 models: 64 x 111.8 x 25 mm (2.52 x 4.4 x 0.98 in)
NPort 6250-G2 models: 76.3 x 122.4 x 25 mm (3 x 4.82 x 0.98 in)
WeightProduct with package:
NPort 6150-G2: 228 g (0.50 lb); 437 g (0.96 lb)
NPort 6250-G2: 278 g (0.61 lb); 487 g (1.07 lb)
InstallationDesktop
DIN-rail mounting (optional kit)
Wall mounting (optional kit)
Side-panel mounting (optional kit)
  • Environmental Limits
Operating TemperatureStandard models: -10 to 60°C (14 to 140°F)
Wide temp. models: -40 to 75°C (-40 to 167°F)
Storage Temperature-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity5 to 95% (non-condensing)
  • Standards and Certifications
EMCEN 55032/35
EMICISPR 32, FCC Part 15B Class A
SafetyIEC 62368-1
UL 62368-1
EN 62368-1
  • Declaration
Green ProductRoHS, CRoHS, WEEE
  • Warranty
Warranty Period5 years
