- DIN-rail mounted power supply
- Slim form factor that is ideal for cabinet installation
- Universal AC power input
- High power conversion efficiency
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNDR-120-48 (Moxa)120W/2.5A, 48 VDC, with 90 to 264 VAC, 120 to 370 VDC inputÎn stocGaranție: 600,00 RON738,00 RONIntră în cont pentru a vedea prețurile NDR-120-48 (Moxa)120W/2.5A, 48 VDC, with 90 to 264 VAC, 120 to 370 VDC inputDisponibilitate:În stocPreț net:600,00 RON
Descriere

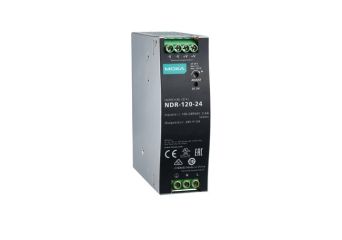

The NDR Series of DIN rail power supplies is designed specifically for use in industrial applications. The 40 to 63 mm slim form-factor enables the power supplies to be easily installed in small and confined spaces such as cabinets. The broad operating temperature range of -20 to 70°C means they are capable of operating in harsh environments. The devices have a metal housing, an AC input range from 90 VAC to 264 VAC, and conform to the EN 61000-3-2 standard. In addition, these power supplies feature constant current mode to provide overload protection.
Specificație tehnică
- Specyfication
| Power | 120W |
| Input voltage |
90 to 264 VAC (47 to 63 Hz), 127 to 370 VDC |
| Output | 120 W, 48 VDC, 0-2.5 A |
| Voltage Adjustment Range |
48 to 55 VDC |
| Over-voltage Protection |
56 to 65 V |
| Overload Protection | 105-160% |
| Type | Constant current limiting, recovers automatically after fault condition is removed |
| Reset | Auto Recovery |
| Inrush Current | 35 A @ 230 VAC, 20 A @ 115 VAC |
| Safety Standards | UL 508, EN 62368-1, IEC 62368-1 |
| EMC Standards | EN 55032/24, EN 61000-3-2 Class A, EN 61000-3-3 |
| Dimensions | 123.75 x 125.20 x 40 mm |
| Weight | 500 g |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Relative Humidity | 20 to 95% RH |
Descarca documentatie
