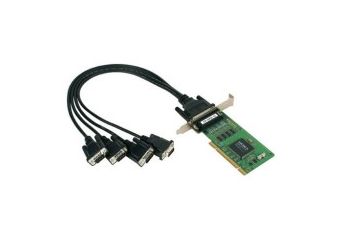

main product photo

CP-104UL

4-port RS-232 smart Universal PCI serial boards

Producător: MOXA
Producător: MOXA
  • Over 800 kbps data throughput for top performance
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Wide-temperature model available for -40 to 85°C environments
Preț de la 565,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 3 model

Promocja cenowa na model HDR-15-5

CP-104UL

CP-104UL

Modele

Accesorii

Descriere

The CP-104UL 4-port universal PCI boards are designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the boards’ RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104UL provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any available PC server.

Specificație tehnică

  • Serial Interface
Comm. Controller MU860 (16C550C compatible)
Bus 32-bit Universal PCI
Connector DB44 female
FIFO 128 bytes
Max. No. of Boards per PC 8
No. of Ports 4
Serial Standards RS-232
Baudrate 50 bps to 921.6 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control None, RTS/CTS, XON/XOFF
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Serial Software Features
Windows Drivers DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
  • Power Parameters
Input Current 120 mA @ 5 VDC
  • Physical Characteristics
Dimensions 64.4 x 120 mm (2.53 x 4.72 in)
  • LED Interface
LED Indicators Built-in Tx, Rx LEDs for each port
  • Environmental Limits
Operating Temperature Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class B
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
International Approval KC
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time 558,961 hrs
Standards Telcordia (Bellcore) Standard TR/SR
