CP-102E / CP-102EL
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
CP-102EL/DB9M 2 Port PCI Express, Low Profile, cable CBL-M25M9x2-50 | În stoc | Garanție: | 525,00 RON 645,75 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
CP-102E 2 Port PCIe Board, RS-232 | În stoc | Garanție: | 485,00 RON 596,55 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
CBL-M25M9x2-50 Cable/CBL-M25M9x2-50 | Out of stock | Garanție: | 50,00 RON 61,50 RON | Intră în cont pentru a vedea prețurile |

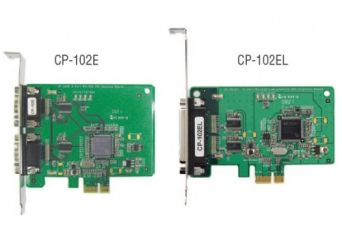

The CP-102E and low-profile CP-102EL are 2-port PCI Express boards designed for POS and ATM applications. Moxa’s PCI Express boards are a top choice of industrial automation engineers and system integrators, particularly since the boards support many different operating systems, including Windows, Linux, and UNIX. The CP-102E/EL’s 2 RS-232 serial ports support a fast 921.6 kbps baudrate and provide full modem control signals to ensure compatibility with a wide range of serial peripherals. In addition, the boards’ x1 classification allows them to be installed in any PCI Express slot.
The CP-102EL is a low-profile board that is compatible with any PCI Express slot. The CP-102EL board only requires a 3.3 VDC power supply, which means that the board fits any host computer, ranging from shoebox to standard-sized PCs.
Moxa continues to support a wide variety of operating systems, and there is no exception for the CP-102E/EL boards. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration applications.
Comm. Controller | MU860 (16C550C compatible) |
Bus | PCI Express 1.0 |
Connector | CP-102E: 2 x DB9 male CP-102EL: DB25 female |
FIFO | 128 bytes |
Max. No. of Boards per PC | 8 |
No. of Ports | 2 |
Serial Standards | RS-232 |
Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | None, RTS/CTS, XON/XOFF |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
UNIX Drivers | QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
Input Current | CP-102E: 520 mA @ 3.3 VDC CP-102EL-DB9M: 552 mA @ 3.3 VDC |
Dimensions | CP-102E: 85.04 x 100 mm (3.35 x 3.94 in) CP-102EL-DB9M: 67.21 x 100 mm (2.65 x 3.94 in) |
LED Indicators | Built-in Tx, Rx LEDs for each port |
Operating Temperature | 0 to 55°C (32 to 131°F) |
Storage Temperature (package included) | -20 to 85°C (-4 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
EMC | EN 55032/24 |
EMI | CP-102E: CISPR 32, FCC Part 15B Class A CP-102EL-DB9M: CISPR 32, FCC Part 15B Class B |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
Green Product | RoHS, CRoHS, WEEE |
Time | 4,947,552 hrs |
Standards | Telcordia (Bellcore) Standard TR/SR |
