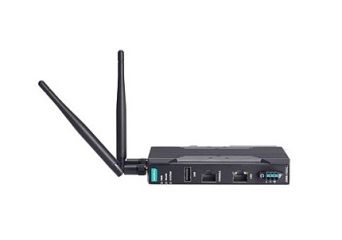

AWK-1151C

Industrial 802.11a/b/g/n wireless client

Producător: MOXA
Producător: MOXA
  •  IEEE 802.11a/b/g/n compliant client
  •  Comprehensive interfaces with one serial port and two Ethernet LAN ports
  •  Millisecond-level Client-based Turbo Roaming
  •  Easy setup and deployment with AeroMag
  •  2x2 MIMO future-proof technology
  •  Easy network setup with Network Address Translation (NAT)
  •  Integrated robust antenna and power isolation
  •  Anti-vibration design
  •  Compact size for your industrial applications
Preț de la 2.470,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Descriere

The AWK-1137C is an ideal client solution for industrial wireless mobile applications. It enables WLAN connections for both Ethernet and serial devices, and is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The AWK-1137C can operate on either the 2.4 or 5 GHz bands, and is backwards-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments.

Industrial Ruggedness

  • Integrated antenna and power isolation designed to provide 500 V insulation protection against external electrical interference
  • -40 to 75°C wide operating temperature models (-T) available for smooth wireless communication in harsh environments

Mobility-oriented Design

  • Client-based Turbo Roaming  for < 150 ms roaming recovery time between APs
  • MIMO technology to ensure transmitting and receiving capability while on the move
  • Anti-vibration performance (with reference to IEC 60068-2-6)

Easy Integration

  • Semi-automatically configurable to reduce deployment cost
  • AeroMag support for error-free setup of your industrial applications’ basic WLAN settings
  • Various communication interfaces for connecting to different types of devices
  • One-to-many NAT to simplify your machine setup

Specificație tehnică

  • WLAN Interface
WLAN Standards 802.11a/b/g/n
802.11i Wireless Security
Modulation Type DSSS
OFDM
MIMO-OFDM
Frequency Band for US (20 MHz operating channels) 2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels) *
5.500 to 5.700 GHz (11 channels) *
5.745 to 5.825 GHz (5 channels)
Frequency Band for EU (20 MHz operating channels) 2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels) *
5.500 to 5.700 GHz (11 channels) *
Frequency Band for JP (20 MHz operating channels) 2.412 to 2.484 GHz (14 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels) *
5.500 to 5.700 GHz (11 channels) *
  * DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
Wireless Security WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal
Transmission Rate 802.11b: 1 to 11 Mbps
802.11a/g: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps
Transmitter Power for 802.11a 23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz) 23±1.5 dBm @ MCS0/8 20 MHz
18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
18±1.5 dBm @ MCS7/15 40 MHz
Transmitter Power for 802.11b 26±1.5 dBm @ 1 Mbps
26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g 23±1.5 dBm @ 6 to 24 Mbps
22±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
19±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz) 23±1.5 dBm @ MCS0/8 20 MHz
17±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz) Typ. -90 @ 6 Mbps
Typ. -88 @ 9 Mbps
Typ. -87 @ 12 Mbps
Typ. -85 @ 18 Mbps
Typ. -81 @ 24 Mbps
Typ. -78 @ 36 Mbps
Typ. -74 @ 48 Mbps
Typ. -73 @ 54 Mbps
Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz) Typ. -69 dBm @ MCS7 20 MHz
Typ. -70 dBm @ MCS15 20 MHz
Typ. -64 dBm @ MCS7 40 MHz
Typ. -66 dBm @ MCS15 40 MHz
Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
Receiver Sensitivity for 802.11b (measured at 2.437 GHz) Typ. -89 dBm @ 1 Mbps
Typ. -89 dBm @ 2 Mbps
Typ. -89 dBm @ 5.5 Mbps
Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz) Typ. -88 dBm @ 6 Mbps
Typ. -88 dBm @ 9 Mbps
Typ. -88 dBm @ 12 Mbps
Typ. -87 dBm @ 18 Mbps
Typ. -84 dBm @ 24 Mbps
Typ. -81 dBm @ 36 Mbps
Typ. -77 dBm @ 48 Mbps
Typ. -75 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz) Typ. -70 dBm @ MCS7 20 MHz
Typ. -70 dBm @ MCS15 20 MHz
Typ. -64 dBm @ MCS7 40 MHz
Typ. -65 dBm @ MCS15 40 MHz
WLAN Operation Mode Client, Client-Router, Slave, Sniffer
Antenna External, 2/2 dBi, Omni-directional
Antenna Connectors 2 RP-SMA female
  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 2
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.1Q for VLAN Tagging
  • Ethernet Software Features
Management DHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, VLAN, Wireless Search Utility, MXview, MXconfig
Routing Port forwarding, Static Route, NAT
Security HTTPS/SSL, RADIUS, SSH
Time Management NTP Client, SNTP Client
  • Firewall
Filter ICMP, MAC address, IP protocol, Port-based
  • Serial Interface
Connector DB9 male
Serial Standards RS-232, RS-422/485, RS-232/422/485
Operation Modes Disabled, Real COM, RFC2217, TCP Client, TCP Server, UDP
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control None, RTS/CTS, XON/XOFF
Baudrate 75 bps to 921.6 kbps
Serial Data Log 256 KB
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DCD, GND, DTR, DSR
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • LED Interface
LED Indicators SYS, LAN1, LAN2, WLAN, Serial
  • Input/Output Interface
Buttons Reset button
  • Physical Characteristics
Housing Metal
IP Rating IP30
Dimensions 77.1 x 115.5 x 26 mm (3.04 x 4.55 x 1.02 in)
Weight 470 g (1.03 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
  • Power Parameters
Input Voltage 9 to 30 VDC
Power Connector 1 removable 3-contact terminal block(s)
Power Consumption 11.7 W (max.)
Reverse Polarity Protection Supported
  • Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 61000-6-2/-6-4, EN 55032/24
EMI CISPR 22, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Radio EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-1137C, ANATEL, MIC, NCC, SRRC, WPC, KC, RCM
Road Vehicles E mark E1
Safety EN 60950-1, UL 60950-1
Vibration IEC 60068-2-6
  • MTBF
Time 1,125,942 hrs
Standards Telcordia SR332
