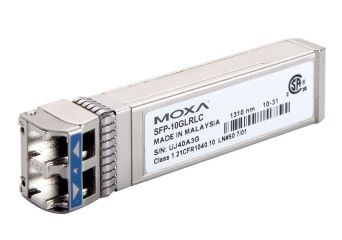

main product photo

10 Gigabit SFP+

1-port 10 Gigabit Ethernet SFP+ modules

Producător: MOXA
Producător: MOXA
  •  Digital Diagnostic Monitor Function
  •  Compliant with IEEE 802.3ae
  •  SFF-8432 SFP+ MSA compliant
  •  Hot pluggable LC duplex connector
  •  Class 1 Laser International Safety Standard IEC 60825-1 compliant
  •  RoHS compliant
Preț de la 7.015,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 4 model

Promocja cenowa na model HDR-15-5

10 Gigabit SFP+

10 Gigabit SFP+

Modele

Filtru: ()
Filtre
()

Descriere

The SFP-10G Series 1-port 10 Gigabit Ethernet SFP+ modules are available as optional accessories for a wide range of Moxa switches.

Features and Benefits

  •  Digital Diagnostic Monitor Function
  •  Compliant with IEEE 802.3ae
  •  SFF-8432 SFP+ MSA compliant
  •  Hot pluggable LC duplex connector
  •  Class 1 Laser International Safety Standard IEC 60825-1 compliant
  •  RoHS compliant


Specificație tehnică

  • Ethernet Interface
Connectors Duplex LC connector
Optical Fiber
Optical Fiber Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)
  • Power Parameters
Power Consumption SFP-10GSRLC: Max. 1.5 W
SFP-10GLRLC: Max. 1.5 W
SFP-10GERLC: Max. 1.5 W
SFP-10GSRLC-T: Max. 1 W
SFP-10GLRLC-T: Max. 1 W
SFP-10GERLC-T: Max. 2.2 W
SFP-10GZRLC-T: Max. 2.5 W
  • Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 176°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Note: When the SFP-10GERLC is used with the ICS-G7750A/G7752A/G7850A/G7852A series, the operating temperature is 0 to 55°C (32 to 131°F)
Note: Wide temperature SFP-10G can be used with ICS-G7526A/G7528A/G7826A/G7828A series only. When the SFP-10GZRLC-T used, the operating temperature is -40 to 60°C (-40 to 176°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
Safety Standard Models: CE, FCC, TÜV, UL 60950-1, Wide Temp. Models: CE, FCC, IEC 60825-1, UL 62368-1, IEC 62368-1, EN 62368-1



Descarca documentatie
