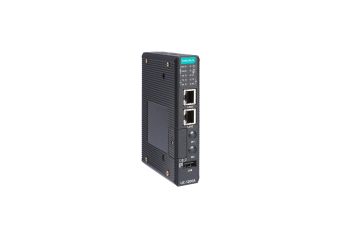

main product photo

UC-1200A

Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computers with 1 mPCIe expansion slot, -40 to 60°C operating temperature

Producător: MOXA
Producător: MOXA
  • Armv8 Cortex-A53 dual-core 1 GHz processor
  • 2 auto-sensing 10/100/1000 Mbps Ethernet ports
  • Rich programmable LEDs and a programmable button for easy installation and maintenance
  • Mini-PCIe slot for wireless module
  • -40 to 60°C operating temperature range
  • Long-term Linux support until 2031; includes bug fixes and security patches
Preț de la 2.420,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

UC-1200A

UC-1200A

Modele

  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    UC-1222A
    Arm-based DIN-rail industrial computer, Cortex-A53 dual-core 64-bit 1 GHz CPU, 2GB RAM, 2 serial ports, 2 Ethernet ports, TPM, and Linux pre-installed
    În stoc
    		Garanție:
    2.420,00 RON
    2.976,60 RON
    Intră în cont pentru a vedea prețurile
    		Intră în cont pentru a vedea prețurile
    UC-1222A
    Arm-based DIN-rail industrial computer, Cortex-A53 dual-core 64-bit 1 GHz CPU, 2GB RAM, 2 serial ports, 2 Ethernet ports, TPM, and Linux pre-installed
    Disponibilitate:
    În stoc

Accesorii

Descriere



Introduction

The UC-1200A computing platform is designed for embedded data-acquisition applications. The computer comes with dual RS-232/422/485 serial ports and dual 10/100/1000 Mbps Ethernet ports, as well as a Mini PCIe socket to support a wireless module. These versatile capabilities let users efficiently adapt the UC-1200A to a variety of complex communications solutions.

The UC-1200A is built around a Cortex-A53 processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.



Appearance



Specificație tehnică

  • Computer
CPU Armv8 Cortex-A53 dual-core 1GHz
DRAM 2 GB DDR4
Pre-installed OS Moxa Industrial Linux (Debian 11, kernel 5.10), 2031 EOL
See www.moxa.com/MIL
Storage Pre-installed 16 GB eMMC
Storage Slot micro SD slots x 1
  • Computer Interface
Ethernet Ports Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports RS-232/422/485 ports x 2, software selectable (terminal block)
USB 2.0 USB 2.0 hosts x 1, type-A connectors
Console Port RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Expansion Slots mPCIe slots x 1
Number of SIMs 1
SIM Format Nano
Buttons Reset button
TPM TPM v2.0
  • Ethernet Interface
Ethernet Ports Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Magnetic Isolation Protection 1.5 kV (built-in)
  • Serial Interface
Baudrate 300 bps to 921.6 kbps
Data Bits 5, 6, 7, 8
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
Flow Control RTS/CTS
XON/XOFF
Automatic Data Direction Control (ADDC) for RS-485
RTS Toggle (RS-232 only)
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • LED Indicators
System Power x 1
SW ready (programmable)
USB (programmable) x1
Micro SD slot (programmable) x 1
Serial Port: TX x 2, RX x 2
Wireless Signal Strength Cellular x 2; programmable
Disconnected: None
Very Poor Signal: 1 LED (blinking)
Poor Signal: 1 LED
Good Signal: 2 LEDs
  • Power Parameters
Input Current 600 mA @ 12 VDC
300 mA @ 24 VDC
Input Voltage 12 to 24 VDC
Power Consumption 4.5 W (minimum; without external USB device attached)
7.2 W (maximum; with external USB device attached)
  • Reliability
Alert Tools External RTC (real-time clock)
External WDT (watchdog timer)
  • Physical Characteristics
Dimensions 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)
Weight 224 g (0.5 lb)
Housing Polycarbonate (PC)
Installation DIN-rail mounting
Wall mounting (with optional kit)
  • Environmental Limits
Operating Temperature -40 to 60°C (-40 to 140°F)
Storage Temperature (package included) -40 to 80°C (-40 to 176°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Shock IEC 60068-2-27
Vibration 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
  • Standards and Certifications
EMC EN 55032/35 EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-3 RS: 1.4 GHz to 6 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 L-PE: 1 kV ; L –L: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Safety EN 62368-1
UL 62368-1
International Approval RCM
KC
BSMI
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time 924,676 hrs
Standards Telcordia (Bellcore) Standard TR/SR
  • Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
