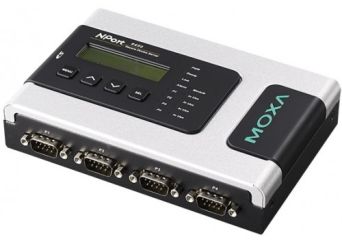

main product photo

NPort 6450

4-port RS-232/422/485 secure terminal servers

Producător: MOXA
Producător: MOXA
  •  LCD panel for easy IP address configuration (standard temp. models)
  •  Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  •  Nonstandard baudrates supported with high precision
  •  Port buffers for storing serial data when the Ethernet is offline
  •  Supports IPv6
  •  Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
  •  Generic serial commands supported in Command-by-Command mode
  •  Security features based on IEC 62443
Preț de la 3.090,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Serwer portów szeregowych 4x RS-232/422/485

NPort 6450

Modele

Accesorii

Useful products

Descriere

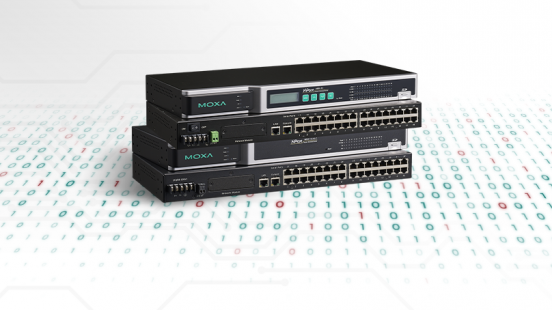

The NPort® 6000 is a terminal server that uses the SSL and SSH protocols to transmit encrypted serial data over Ethernet. Up to 32 serial devices of any type can be connected to the NPort® 6000, using the same IP address. The Ethernet port can be configured for a normal or secure TCP/IP connection. The NPort® 6000 secure device servers are the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6000 Series ensures data transmission integrity with support for DES, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6000, and each serial port on the NPort® 6000 can be configured independently for RS-232, RS-422, or RS-485 transmission.

No Data Loss If Ethernet Connection Fails

The NPort® 6000 is a reliable device server that provides users with secure serial-to-Ethernet data transmission and a customer-oriented hardware design. If the Ethernet connection fails, the NPort® 6000 will queue all serial data in its internal 64 KB port buffer. When the Ethernet connection is re-established, the NPort® 6000 will immediately release all data in the buffer in the order that it was received. Users can increase the port buffer size by installing an SD card.





Specificație tehnică

  • Memory
SD Slot Up to 32 GB (SD 2.0 compatible)
  • Input/Output Interface
Alarm Contact Channels Resistive load: 1 A @ 24 VDC
  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 1 Auto MDI/MDI-X connection
Magnetic Isolation Protection 1.5 kV (built-in)
  • Ethernet Software Features
Configuration Options Web Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console, Windows Utility
Management ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API Android 3.1.x and later
MIB MIB-II
Time Management SNTP Client
Unicast Routing RIPV1/V2, Static Route
Authentication Local Account Accessibility, RADIUS, TACACS+
  • Serial Interface
Connector DB9 male
No. of Ports 4
Serial Standards RS-232, RS-422, RS-485
Secure Operation Modes Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
Standard Operation Modes Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
Console Port NPort 6600 Series: RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS, DTR/DSR, XON/XOFF
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control Supports
Terminator for RS-485 120 ohms
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  • Power Parameters
Input Current 730 mA @ 12 VDC
Input Voltage 12 to 48 VDC
  • Reliability
Automatic Reboot Trigger Built-in WDT
Alert Tools Built-in buzzer and RTC (real-time clock)
  • Physical Characteristics
Housing Metal
Dimensions (with ears) 181 x 103 x 35 mm (7.13 x 4.06 x 1.38 in)
Dimensions (without ears) 158 x 103 x 35 mm (6.22 x 4.06 x 1.38 in)
Weight 1,020 g (2.25 lb)
Interactive Interface LCD panel display (non-T models only)Push buttons for configuration (non-T models only)
Installation Desktop, DIN-rail mounting, Wall mounting
  • Environmental Limits
Operating Temperature Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included) Standard/Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High-Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
Safety UL 60950-1
Traffic Control NEMA TS2
Vibration IEC 60068-2-6
Freefall IEC 60068-2-34
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time 850,905 hrs
Standards NPort 6450 Series: Telcordia (Bellcore) Standard TR/SR
