Promocja cenowa na model HDR-15-5
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
NE-4110S 10/100M Ethernet Network Enabler for RS-232 device, RJ-45 | În stoc | Garanție: | 325,00 RON 399,75 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
NE-4110S-T 10/100M Ethernet Network Enabler for RS-232 device, RJ-45 | Out of stock | Garanție: | 430,00 RON 528,90 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
NE-4110-ST (w/o module) Developing Kit for NE-4110 Series, NE-4110S, NE-4110A (without NE Module) | Out of stock | Garanție: | 550,00 RON 676,50 RON | Intră în cont pentru a vedea prețurile |

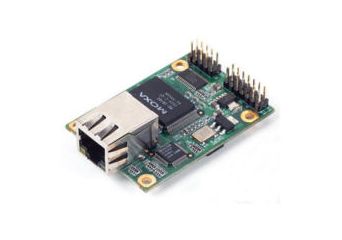

Moxa’s NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa’s embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.
NE-4100 embedded device servers can be configured to send an SNMP trap or email under the following conditions:
CPU | 16-bit MCU |
Flash | 2 MB |
SDRAM | 1 MB |
Configurable DIO Channels (by software) | 4 |
10/100BaseT(X) Ports, Auto MDI/MDI-X | 8-pin RJ45 |
Magnetic Isolation Protection | 1.5 kV (built-in) |
Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control |
Configuration Options | Web Console (HTTP), Windows Utility, Telnet Console, Serial Console |
Management | ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP |
Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
Android API | Android 3.1.x and later |
No. of Ports | 2 (1 for serial interface, 1 for TTL console port |
Serial Standards | RS-232 |
Operation Modes | Real COM mode, TCP Client mode, TCP Server mode, UDP mode |
Baudrate | 110 bps to 230.4 kbps |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | None, RTS/CTS, DTR/DSR, XON/XOFF |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
Power Consumption | 290 mA @ 5 VDC |
Input Voltage | 5 VDC |
Dimensions | 57 x 40 mm (2.24 x 1.57 in) |
Weight | 40 g (0.09 lb) |
Form Factor Type | Ready-to-go pin header modules |
Operating Temperature | Standard Models: 0 to 55˚C (32 to 131˚F) Wide Temp. Models: -40 to 75˚C (-40 to 167˚F) |
Weight | -40 to 60°C (-40 to 140°F) |
Form Factor Type | 5 to 95% (non-condensing) |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class B |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
Environmental Testing | IEC 60068-2-1 IEC 60068-2-3 IEC 60068-2-14 |
Green Product | RoHS, CRoHS, WEEE |
Time | 290,276 hrs |
Standards | Telcordia SR332 |
