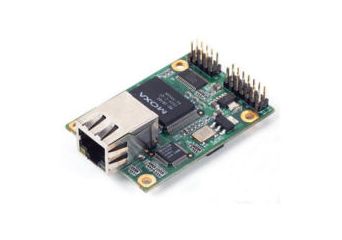

NE-4110A

10/100 Mbps embedded serial device servers , RS-422/485

Producător: MOXA
Producător: MOXA
  •  10/100 Mbps Ethernet interface
  •  Supports baudrates up to 230.4 kbps
  •  Choice of operation modes: Real COM, TCP Server, TCP Client, and UDP
  •  Supports DHCP, BootP, Static IP, and ARP
  •  SNMP and email alerts for event trapping and notifications
  •  Half the size of a credit card—only 57 × 40 mm
  •  Low power consumption at 1.5 W, with single +5 V input
Preț de la 325,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 3 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

Moxa’s NE-4100 embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices. Moxa’s embedded device servers can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet, and provide ready-to-use operation modes, including TCP Server, TCP Client, and UDP. In addition, a Real COM driver is included for backward compatibility with legacy software.

SNMP and Email Alerts for Event Trap and Notification

NE-4100 embedded device servers can be configured to send an SNMP trap or email under the following conditions:

  • Cold/warm start
  • Password authentication failure
  • Change in DSR/DCD line signal
  • Change in IP address
  • Change in password

Specificație tehnică

  • PLATFORM
CPU 16-bit MCU
  • MEMORY
Flash 2 MB
SDRAM 1 MB
  • INPUT/OUTPUT INTERFACE
Configurable DIO Channels (by software) 4
  • ETHERNET INTERFACE
10/100BaseT(X) Ports, Auto MDI/MDI-X 8-pin RJ45
Magnetic Isolation Protection 1.5 kV (built-in)
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
  • ETHERNET SOFTWARE FEATURES
Configuration Options Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
Management ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API Android 3.1.x and later
  • SERIAL INTERFACE
No. of Ports 2 (1 for serial interface, 1 for TTL console port
Serial Standards RS-422, RS-485
Operation Modes Real COM mode, TCP Client mode, TCP Server mode, UDP mode
Baudrate 110 bps to 230.4 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control None, RTS/CTS, DTR/DSR, XON/XOFF
  • SERIAL SIGNALS
RS-422 TX+, TX-, RX+, RX-, GND
RS-485-4w TX+, TX-, RX+, RX-, GND
RS-485-2w Data+, Data-, GND
  • POWER PARAMETERS
Power Consumption 290 mA @ 5 VDC
Input Voltage 5 VDC
  • PHYSICAL CHARACTERISTICS
Dimensions 57 x 40 mm (2.24 x 1.57 in)
Weight 40 g (0.09 lb)
Form Factor Type Ready-to-go pin header modules
  • ENVIRONMENTAL LIMITS
Operating Temperature Standard Models: 0 to 55˚C (32 to 131˚F)
Wide Temp. Models: -40 to 75˚C (-40 to 167˚F)
Weight -40 to 60°C (-40 to 140°F)
Form Factor Type 5 to 95% (non-condensing)
  • STANDARD AND CERTIFICATIONS
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class B
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Environmental Testing IEC 60068-2-1
IEC 60068-2-3
IEC 60068-2-14
  • DECLARATION
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time 289,573 hrs
Standards Telcordia SR332
