- Supports Auto Device Routing for easy configuration
- Supports route by TCP port or IP address for flexible deployment
- Innovative Command Learning for improving system performance
- Supports agent mode for high performance through active and parallel polling of serial devices
- Supports Modbus serial master to Modbus serial slave communications
- 2 Ethernet ports with the same IP or dual IP addresses for network redundancy
- microSD card for configuration backup/duplication and event logs
- Accessed by up to 256 Modbus TCP clients
- Connects up to Modbus 128 TCP servers
- RJ45 serial interface (for “-J” models)
- Serial port with 2 kV isolation protection (for “-I” models)
- Dual VDC or VAC power inputs with wide power input range
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- Status monitoring and fault protection for easy maintenance
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3660-8-2AC8 ports Modbus gateway, dual AC power inputÎn livrare Garanție: 7.410,00 RON9.114,30 RONIntră în cont pentru a vedea prețurile MGate MB3660-8-2AC8 ports Modbus gateway, dual AC power inputDisponibilitate: În livrarePreț net:7.410,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3660-8-2DC8 ports Modbus gateway, dual DC power inputOut of stock Garanție: 7.850,00 RON9.655,50 RONIntră în cont pentru a vedea prețurile MGate MB3660-8-2DC8 ports Modbus gateway, dual DC power inputDisponibilitate: Out of stockPreț net:7.850,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3660-8-J-2ACModbus gateway with dual LANs, dual AC power inputs, 8 RS-232/422/485 ports, RJ45 serial interface, 0 to 60°C operating temperatureOut of stock Garanție: 7.850,00 RON9.655,50 RONIntră în cont pentru a vedea prețurile MGate MB3660-8-J-2ACModbus gateway with dual LANs, dual AC power inputs, 8 RS-232/422/485 ports, RJ45 serial interface, 0 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:7.850,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3660I-8-2AC8 ports Modbus gateway, dual AC power input, 2kV isolationOut of stock Garanție: 9.030,00 RON11.106,90 RONIntră în cont pentru a vedea prețurile MGate MB3660I-8-2AC8 ports Modbus gateway, dual AC power input, 2kV isolationDisponibilitate: Out of stockPreț net:9.030,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3660-16-2AC16 ports Modbus gateway, dual AC power inputOut of stock Garanție: 9.300,00 RON11.439,00 RONIntră în cont pentru a vedea prețurile MGate MB3660-16-2AC16 ports Modbus gateway, dual AC power inputDisponibilitate: Out of stockPreț net:9.300,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3660-16-2DC16 ports Modbus gateway, dual DC power inputÎn livrare Garanție: 9.765,00 RON12.010,95 RONIntră în cont pentru a vedea prețurile MGate MB3660-16-2DC16 ports Modbus gateway, dual DC power inputDisponibilitate: În livrarePreț net:9.765,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3660-16-J-2ACModbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, RJ45 serial interface, 0 to 60°C operating temperatureOut of stock Garanție: 9.930,00 RON12.213,90 RONIntră în cont pentru a vedea prețurile MGate MB3660-16-J-2ACModbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, RJ45 serial interface, 0 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:9.930,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate MB3660I-16-2ACModbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature, 2kV isolationÎn stocGaranție: 13.460,00 RON16.555,80 RONIntră în cont pentru a vedea prețurile MGate MB3660I-16-2ACModbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature, 2kV isolationDisponibilitate:În stocPreț net:13.460,00 RON
Accesorii
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDB9 Female to Terminal BlockÎn stocGaranție: 50,00 RON61,50 RONIntră în cont pentru a vedea prețurile DB9 Female to Terminal BlockDisponibilitate:În stocPreț net:50,00 RON
Descriere

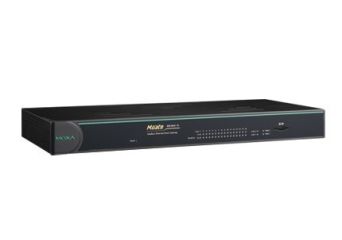

The MGate MB3660 (MB3660-8 and MB3660-16) gateways are redundant Modbus gateways that convert between the Modbus TCP and Modbus RTU/ASCII protocols. They can be accessed by up to 256 TCP master/client devices, or connect to 128 TCP slave/server devices. The MGate MB3660 isolation model provides 2 kV isolation protection suitable for power substation applications. The MGate MB3660 gateways are designed to easily integrate Modbus TCP and RTU/ASCII networks. The MGate MB3660 gateways offer features that make network integration easy, customizable, and compatible with almost any Modbus network.
For large-scale Modbus deployments, MGate MB3660 gateways can effectively connect a large number of Modbus nodes to the same network. The MB3660 Series can physically manage up to 248 serial slave nodes for 8-port models or 496 serial slave nodes for 16-port models (the Modbus standard only defines Modbus IDs from 1 to 247). Each RS-232/422/485 serial port can be configured individually for Modbus RTU or Modbus ASCII operation and for different baudrates, allowing both types of networks to be integrated with Modbus TCP through one Modbus gateway.
High Performance with Innovative Command Learning
The MGate MB3660 gateways support two communication modes: transparent mode and agent mode. For transparent mode, the gateway converts Modbus commands from Modbus TCP to Modbus RTU/ASCII, and vice versa, or from serial (master) to serial (slave). However, since only one Modbus protocol request-response action can be executed at any given time, each Modbus device has to wait its turn, resulting in poorer performance.
In order to provide better performance, the MGate MB3660 gateways are designed with an innovative Command Learning function, which can be activated with a single mouse click. Once activated, the gateway will learn and remember the Modbus commands it receives, and once a command has been learned, the gateway will act as though it were in agent mode, and actively send Modbus requests to the relevant Modbus devices. Since the data is saved in a different memory space that can be accessed by the SCADA system, the SCADA system can retrieve Modbus response data directly from the gateway’s memory, instead of waiting for the data to pass through the Modbus devices, dramatically increasing communication performance.
Auto-Device Routing for Easy Configuration (Patented)
Moxa’s Auto-Device Routing function helps eliminate many of the problems and inconveniences encountered by engineers who need to configure large numbers of Modbus devices. A single mouse click is all that’s required to set up a slave ID routing table and configure Modbus gateways to automatically detect Modbus requests from a supervisory control and data acquisition (SCADA) system. By removing the need to manually create the slave ID routing table, the Auto-Device Routing function saves engineers significant time and reduces cost.
Modbus Gateway with Power and Ethernet Redundancy
For a complicated Modbus system, redundancy is extremely important. The MGate MB3660 Modbus gateways support redundancy for both the power input and Ethernet connection. The MGate MB3660 gateways come with dual AC or DC power inputs built in for power redundancy, and have dual Ethernet ports (with different IPs) for network redundancy. To accommodate different types of applications, the dual Ethernet ports can be configured in one of two ways:
- Use the same IP for both Ethernet ports. In this case, the MGate MB3660 gateway will automatically switch to the backup LAN when the main LAN fails.
- Use different IP addresses for each of the two Ethernet ports. In this case, Modbus clients/masters can use both Ethernet ports to communicate with Modbus RTU/ASCII slave devices at the same time.
Specificație tehnică
- Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) | 2 IP addresses Auto MDI/MDI-X connection |
- Ethernet Software Features
Industrial Protocols | Modbus TCP Client (Master), Modbus TCP Server (Slave) |
Configuration Options | Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console |
Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client, RADIUS |
MIB | RFC1213, RFC1317 |
Time Management | NTP Client |
- Serial Interface
Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
No. of Ports | MGate MB3660-8 Series: 8 MGate MB3660-16 Series: 16 |
Serial Standards | RS-232/422/485 (software selectable) |
Connector | MGate MB3660-8/16: DB9 male MGate MB3660-8/16-J: RJ45 |
Baudrate | 50 bps to 921.6 kbps |
Data Bits | 7, 8 |
Parity | None, Even, Odd, Space, Mark |
Stop Bits | 1, 2 |
Flow Control | RTS/CTS, DTR/DSR, RTS Toggle (RS-232 only) |
RS-485 Data Direction Control | ADDC® (automatic data direction control) |
Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
Terminator for RS-485 | 120 ohms |
Isolation | 2 kV (I models) |
- Serial Signals
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Serial Software Features
Industrial Protocols | Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave |
Configuration Options | Serial Console |
- Modbus RTU/ASCII
Mode | Master, Slave |
Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
Max. No. of Commands | 256 per serial port |
Memory Size | 65535 bytes |
- Modbus TCP
Mode | Client (Master), Server (Slave) |
Max. No. of Client Connections | 256 |
Max. No. of Server Connections | 128 |
Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
Max. No. of Commands | 256 |
Memory Size | 65535 bytes |
- Modbus (Transparent)
Max. No. of Client Connections | 256 |
Max. No. of Server Connections | 128 |
- Power Parameters
Input Voltage | All models: Redundant dual inputs AC models: 100 to 240 VAC (47 to 63 Hz) DC models: 20 to 60 VDC (1.5 kV isolation) |
No. of Power Inputs | 2 |
Power Connector | Terminal block (for DC models) |
Power Consumption | MGate MB3660-8-2AC: 144 mA @ 110 VAC MGate MB3660-8-J-2AC: 111 mA @ 110 VAC MGate MB3660-16-2AC: 178 mA @ 110 VAC MGate MB3660-16-J-2AC: 133 mA @ 110 VAC MGate MB3660I-8-2AC: 310 mA @ 110 VAC MGate MB3660I-16-2AC: 310 mA @ 110 VAC MGate MB3660-8-2DC: 312 mA @ 24 VDC MGate MB3660-16-2DC: 390 mA @ 24 VDC |
- Relays
Contact Current Rating | Resistive load: 2 A @ 30 VDC |
- Physical Characteristics
Housing | Metal |
IP Rating | IP30 |
Dimensions (with ears) | 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in) |
Dimensions (without ears) | 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in) |
Weight | MGate MB3660-8-2AC: 2731 g (6.02 lb) MGate MB3660-8-2DC: 2684 g (5.92 lb) MGate MB3660-8-J-2AC: 2600 g (5.73 lb) MGate MB3660-16-2AC: 2830 g (6.24 lb) MGate MB3660-16-2DC: 2780 g (6.13 lb) MGate MB3660-16-J-2AC: 2670 g (5.89 lb) MGate MB3660I-8-2AC: 2753 g (6.07 lb) MGate MB3660I-16-2AC: 2820 g (6.22 lb) |
- Environmental Limits
Operating Temperature | 0 to 60°C (32 to 140°F) |
Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
Safety | EN 60950-1, UL 60950-1 |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
Freefall | IEC 60068-2-31 |
Shock | IEC 60068-2-27 |
Vibration | IEC 60068-2-6, IEC 60068-2-64 |
- MTBF
Time | MGate MB3660-8-2AC: 716,647 hrs MGate MB3660-8-2DC: 706,783 hrs MGate MB3660-8-J-2AC: 616,505 hrs MGate MB3660-16-2AC: 487,416 hrs MGate MB3660-16-2DC: 482,835 hrs MGate MB3660-16-J-2AC: 437,337 hrs MGate MB3660I-8-2AC: 429,807 hrs MGate MB3660I-16-2AC: 256,208 hrs |
Standards | Telcordia SR332 |
