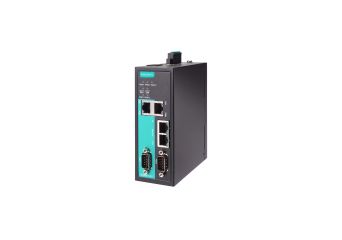

Mgate 5216 2-port serial/Modbus-to-EtherCAT gateway with 0 to 60°C operating temperature | Out of stock | Garanție: | 4.530,00 RON 5.571,90 RON | Intră în cont pentru a vedea prețurile |
MGate 5216 Series EtherCAT industrial Ethernet gateways convert data between Modbus RTU/ASCII, proprietary serial and EtherCAT protocols. All models are protected by a rugged metal housing, are DIN-rail mountable, and offer built-in serial isolation.
Modbus is one of the most widely used industrial communication protocols, and EtherCAT is commonly used in factory automation and semiconductor fields. MGate 5216 supports both Modbus RTU/ASCII client and MicroPython enabling programming in proprietary serial protocol, so that you can easily connect your Modbus devices or serial devices to EtherCAT host.
The MGate 5216 EtherCAT gateways are designed for easy configuration and quick maintenance. An intuitive web console can be used to implement remote maintenance tasks. A comprehensive collection of troubleshooting tools reduces configuration time and system downtime and the rugged design is suitable for industrial applications.
The MGate 5216 EtherCAT gateways have a user-friendly interface that lets you quickly set up protocol conversion routines for most applications, doing away with what were often time-consuming tasks in which users had to implement detailed parameter configurations one by one. The MGate 5216 supports web console for remote maintenance. Encryption communication functions, including HTTPS, are supported to provide better network security. In addition, system monitoring functions are provided to record network connections and system log events.
The MGate 5216 supports Protocol Diagnose and Traffic Monitor for easy troubleshooting, especially during the installation stage. Serial communication issues caused by incorrect software parameters, such as slave IDs and register addresses, or incorrect command configurations, can be fished out with Protocol Diagnose and Traffic Monitoring, which let you capture and check data to easily identify root causes.
10/100BaseT(X) Ports (RJ45 connector) | 2, Auto MDI/MDI-X connection |
Magnetic Isolation Protection | 1.5 kV (built-in) |
Industrial Protocols | EtherCAT Slave |
Configuration Options | Web Console (HTTP/HTTPS), Device Search Utility (DSU) |
Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP |
MIB | MIB-II |
Time Management | NTP Client |
No. of Ports | 2 |
Connector | DB9 male |
Console Port | RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1) |
Serial Standards | RS-232/422/485 |
Baudrate | 50 bps to 921.6 kbps |
Data Bits | 7, 8 |
Parity | None, Even, Odd, Space, Mark |
Stop Bits | 1, 2 |
Flow Control | RTS Toggle (RS-232 only), RTS/CTS |
RS-485 Data Direction Control | Automatic Data Direction Control (ADDC) |
Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
Terminator for RS-485 | 120 ohms |
Isolation | 2 kV (built-in) |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
Configuration Options | Serial Console |
Industrial Protocols | Modbus RTU/ASCII Client |
Mode | Client |
Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
Max. No. of Commands | 128 per serial port |
Total Input Data Size | 512 bytes |
Total Output Data Size | 512 bytes |
Version | 1.20.0 |
Functions Supported | Input, Output, Input/Output |
Max. No. of Commands | 64 per serial port |
Total Input Data Size | 512 bytes |
Total Output Data Size | 512 bytes |
Mode | Slave |
Baudrate | Full duplex 100 Mbps |
FMMU | 3 |
Sync Manager | 4 |
Total Input Data Size | 512 bytes |
Total Output Data Size | 512 bytes |
microSD Slot | Up to 32 GB (SD 2.0 compatible) |
Input Voltage | 12 to 48 VDC |
Input Current | 416 mA (max) |
Power Connector | Spring-type Euroblock terminal |
Contact Current Rating | Resistive load: 2 A @ 30 VDC |
Housing | Metal |
IP Rating | IP30 |
Dimensions (without ears) | 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in) |
Weight | 589 g (1.30 lb) |
Operating Temperature | 0 to 60°C (32 to 140°F) |
Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
EMC | EN 61000-6-2/-6-4 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF |
Safety | EN 60950-1, UL 61010-2-201 |
Freefall | IEC 60068-2-32 |
Shock | IEC 60068-2-27 |
Vibration | IEC 60068-2-6, IEC 60068-2-64 |
Time | 2,305,846 hrs |
Standards | Telcordia SR332 |
Warranty Period | 5 years |
