Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
CP-114EL/DB9M 4 Port PCIe Board, w/ DB9M Cable, RS-232/422/485, LowProfile | În stoc | Garanție: | 1.125,00 RON 1.383,75 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
CP-114EL/DB25M 4 Port PCIe Board, w/ DB25M Cable, RS-232/422/485, LowProfile | Out of stock | Garanție: | 1.125,00 RON 1.383,75 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
CP-114EL-I/DB9M 4 Port PCIe Board, w/ DB9M Cable, RS-232/422/485, w/ Isolation, Low Profile | În stoc | Garanție: | 2.250,00 RON 2.767,50 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
CP-114EL-I/DB25M 4 Port PCIe Board, w/ DB25M Cable, RS-232/422/485, w/ Isolation, Low Profile | Out of stock | Garanție: | 2.250,00 RON 2.767,50 RON | Intră în cont pentru a vedea prețurile |
Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
CP-114EL 4 Port PCIe Board, RS-232/422/485, LowProfile | Out of stock | Garanție: | 1.070,00 RON 1.316,10 RON | Intră în cont pentru a vedea prețurile |

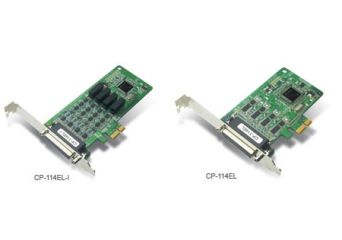

The CP-114EL and CP-114EL-I are smart, 4-port PCI Express boards designed for POS and ATM applications. The boards are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and UNIX. In addition, each of the boards’ 4 RS-232/422/485 serial ports supports a fast 921.6 kbps baudrate. The CP-114EL and CP-114EL-I provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and their PCI Express x1 classification allows the boards to be installed in any PCI Express slot.
The CP-114EL and CP-114EL-I are low-profile boards that are compatible with any PCI Express slot. The boards require only a 3.3 VDC power supply, which means that the boards fit any host computer, ranging from shoebox to standard-sized PCs.
Moxa continues to support a wide variety of operating systems, and the CP-114EL/EL-I boards are no exception. Reliable Windows and Linux drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
Comm. Controller | 16C550C compatible |
Bus | PCI Express 1.0 |
Connector | DB44 female |
FIFO | 128 bytes |
Max. No. of Boards per PC | 8 |
No. of Ports | 4 |
Serial Standards | RS-232, RS-422, RS-485 |
Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Parity | None, Even, Odd, Space, Mark |
Flow Control | None, RTS/CTS, XON/XOFF |
Isolation | CP-114EL-I Series: 2 kV |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
UNIX Drivers | QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
Input Current | CP-114EL Series: 835 mA @ 3.3 VDC CP-114EL-I Series: 1,170 mA @ 3.3 VDC |
Dimensions | CP-114EL Series: 67.21 x 103 mm (2.65 x 4.06 in) CP-114EL-I Series: 67.21 x 135 mm (2.65 x 5.31 in) |
LED Indicators | Built-in Tx, Rx LEDs for each port |
Operating Temperature | 0 to 55°C (32 to 131°F) |
Storage Temperature (package included) | -20 to 85°C (-4 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class B |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
Green Product | RoHS, CRoHS, WEEE |
Time | CP-114EL Series: 2,347,197 hrs CP-114EL-I Series: 603,671 hrs |
Standards | Telcordia (Bellcore) Standard TR/SR |
