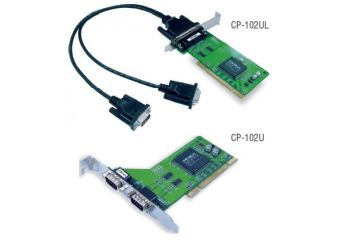

main product photo

CP-102U/UL

2-port RS-232 Universal PCI serial boards

Producător: MOXA
Producător: MOXA
  • Excellent data throughput at over 800 kbps
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • MD1 low-profile form factor (CP-102UL) fits compact PCs
  • Wide-temperature model available for -40 to 85°C environments
Preț de la 300,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 4 model

Promocja cenowa na model HDR-15-5

Karta PCI 2x RS-232 Moxa

CP-102U/UL

Modele

Accesorii

Descriere

The CP-102U and CP-102UL are 2-port universal PCI boards designed for POS and ATM applications. They are designed especially for industrial automation engineers and system integrators to support many different operating systems, including Windows, Linux, and even UNIX. In addition, each RS-232 serial port supports up to 921.6 kbps baudrate. The CP-102U and CP-102UL implement full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any PC.

Designed for Standard and Compact PCs

The CP-102UL is a low-profile board requiring a 5 VDC power supply. It is compatible with both a 3.3 V and 5 V PCI bus, allowing the CP-102UL to be tucked inside compact PCs.

Top Serial Performance

With 30-plus years of experience in serial board design, Moxa is now concentrating on a new high-performance serial data transmission chip. The Turbo Serial Engine™ chip provides serial boards with a 128-byte FIFO, on-chip hardware and software flow control, and burst data mode. With Turbo Serial Engine™, Moxa is able to offer advanced smart serial boards with unbeatable transmission performance.

Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operating systems, and the CP-102U/UL boards are no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, with support for many operating systems, including WEPOS, for embedded integration.

Specificație tehnică

  • Serial Interface
Comm. Controller MU860 (16C550C compatible)
Bus 32-bit Universal PCI
Connector CP-102UL Series: DB25 female
CP-102U Series: 2 x DB9 male
Max. No. of Boards per PC 8
No. of Ports 2
Serial Standards RS-232
Baudrate 50 bps to 921.6 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control None, RTS/CTS, XON/XOFF
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • Serial Software Features
Windows Drivers DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
  • Power Parameters
Input Current 93 mA @ 5 VDC
  • Physical Characteristics
Dimensions CP-102U Series: 80 x 120 mm (3.15 x 4.72 in)
CP-102UL Series: 64.5 x 120 mm (2.53 x 4.72 in)
  • LED Interface
LED Indicators Built-in Tx, Rx LEDs for each port
  • Environmental Limits
Operating Temperature Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class B
EMS All models:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

CP-102UL Series:
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8
International Approval CP-102U: KC
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time CP-102U Series: 574,050 hrs
CP-102UL Series: 576,401 hrs
Standards CP-102UL Series: Telcordia (Bellcore) Standard TR/SR
CP-102U Series: MIL-HDBK-217F
