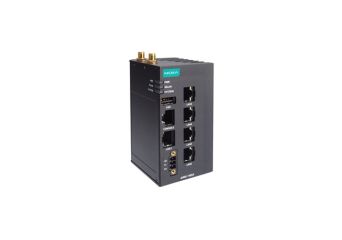

AWK-1165A

Entry-level 5-port industrial IEEE 802.11ax wireless APs

High-speed IEEE 802.11ax Wi-Fi
Selectable dual-band Wi-Fi with data rates up to 1,201 Mbps
Latest WPA3 encryption for enhanced wireless network security
Universal (UN) models with configurable country or region code for more flexible deployment
Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
-40 to 75°C wide operating temperature range (-T models)
Integrated antenna isolation

Preț de la 3.530,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

AWK-1165A

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
AWK-1165A-UN Industrial 802.11ax wireless AP with 5 10/100/1000BaseT(X) ports, IP30, UN band, -25 to 60°C operating temperature	În stoc	Garanție:		3.530,00 RON 4.341,90 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

AWK-1165A-UN

Industrial 802.11ax wireless AP with 5 10/100/1000BaseT(X) ports, IP30, UN band, -25 to 60°C operating temperature

Disponibilitate:

În stoc

Preț net:

3.530,00 RON

Intră în cont pentru a vedea prețurile

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
AWK-1165A-UN-T Industrial 802.11ax wireless AP with 5 10/100/1000BaseT(X) ports, IP30, UN band, -40 to 75°C operating temperature	Out of stock	Garanție:		4.170,00 RON 5.129,10 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

AWK-1165A-UN-T

Industrial 802.11ax wireless AP with 5 10/100/1000BaseT(X) ports, IP30, UN band, -40 to 75°C operating temperature

Disponibilitate: Out of stock

Preț net:

4.170,00 RON

Intră în cont pentru a vedea prețurile

Descriere

Introduction

The AWK-1165A Series industrial wireless AP is designed to meet the growing need for faster data transmission speeds while servicing more clients through IEEE 802.11ax (Wi-Fi 6) technology. The AWK-1165A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless services. The AWK-1165A supports selectable 2.4 and 5 GHz bands and is backwards compatible with existing 802.11a/b/g/n/ac deployments to future-proof your wireless investments.

Advanced 802.11ax Industrial Wireless Solution

802.11ax Wi-Fi 6 compliant access point backwards compatible with Wi-Fi 4/ Wi-Fi 5 for flexible deployment
DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure
Wi-Fi 6 OFDMA (Orthogonal Frequency-Division Multiple Access) technology enables concurrent communication with multiple clients for improved network efficiency
Wi-Fi 6 TWT (Target Wake Time) technology facilitates better scheduling and longer battery life for connected devices

Advanced Wireless Technology

AP-based client disconnection mechanism to help wireless clients without roaming intelligence obtain optimal AP services

Industrial Ruggedness

Integrated antenna isolation designed to provide protection against external electrical interference
-40 to 75°C wide operating temperature (-T) models for smooth wireless communication in harsh environments

Specificație tehnică

WLAN Interface

WLAN Standards	2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz 5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz
Frequency Range for USA (20 MHz operational channels)	Only AWK-1165A-US models: 2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels)¹ 5.500 to 5.700 GHz (11 channels)¹ 5.745 to 5.825 GHz (5 channels)
Frequency Range for UN (20 MHz operational channels)	Only AWK-1165A-UN models: 2.412 to 2.472 GHz (13 channels)
Wireless Security	WEP Encryption (64-bit and 128-bit) WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) WPA/WPA2/WPA3-Personal
Transmission Speed	2.4 GHz: Up to 573.5 Mbps 5 GHz: Up to 1,201 Mbps
Transmitter Power for 802.11a (Dual Chain)	18±1.5 dBm @ 6 Mbps 18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (5 GHz, Dual Chain)	18±1.5 dBm @ MCS0 20 MHz 18±1.5 dBm @ MCS7 20 MHz 18±1.5 dBm @ MCS0 40 MHz 18±1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ac (Dual Chain)	18±1.5 dBm @ MCS0 20 MHz 18±1.5 dBm @ MCS8 20 MHz 18±1.5 dBm @ MCS0 40 MHz 18±1.5 dBm @ MCS9 40 MHz 18±1.5 dBm @ MCS0 80 MHz 18±1.5 dBm @ MCS9 80 MHz
Transmitter Power for 802.11ax (Dual Chain)	18±1.5 dBm @ MCS0 20 MHz 18±1.5 dBm @ MCS11 20 MHz 17±1.5 dBm @ MCS0 40 MHz 17±1.5 dBm @ MCS11 40 MHz 17±1.5 dBm @ MCS0 80 MHz 17±1.5 dBm @ MCS11 80 MHz
Transmitter Power for 802.11b (Dual Chain)	18±1.5 dBm @ 1 Mbps 18±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g (Dual Chain)	18±1.5 dBm @ 6 Mbps 18±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz, Dual Chain)	18±1.5 dBm @ MCS0 20 MHz 18±1.5 dBm @ MCS7 20 MHz 18±1.5 dBm @ MCS0 40 MHz 18±1.5 dBm @ MCS7 40 MHz
Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)	18±1.5 dBm @ MCS0 20 MHz 18±1.5 dBm @ MCS11 20 MHz 18±1.5 dBm @ MCS0 40 MHz 18±1.5 dBm @ MCS11 40 MHz
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)	Typ. -88 dBm @ 6 Mbps Typ. -72 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)	Typ. -88 dBm @ MCS0 20 MHz Typ. -88 dBm @ MCS7 20 MHz Typ. -84 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11ac (5 GHz)	Typ. -88 dBm @ MCS0 20 MHz Typ. -85 dBm @ MCS8 20 MHz Typ. -88 dBm @ MCS0 40 MHz Typ. -68 dBm @ MCS9 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -55 dBm @ MCS9 80 MHz
Receiver Sensitivity for 802.11ax (5 GHz)	Typ. -88 dBm @ MCS0 20 MHz Typ. -89 dBm @ MCS11 20 MHz Typ. -88 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS11 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -52 dBm @ MCS11 80 MHz
Receiver Sensitivity for 802.11a (5 GHz)	Typ. -88 dBm @ MCS0 20 MHz Typ. -88 dBm @ MCS7 20 MHz Typ. -84 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11ax (5 GHz)	Typ. -88 dBm @ MCS0 20 MHz Typ. -89 dBm @ MCS11 20 MHz Typ. -88 dBm @ MCS0 40 MHz Typ. -66 dBm @ MCS11 40 MHz Typ. -81 dBm @ MCS0 80 MHz Typ. -52 dBm @ MCS11 80 MHz
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)	Typ. -96 dBm @ 1 Mbps Typ. -88 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)	Typ. -90 dBm @ 6 Mbps Typ. -74 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)	Typ. -90 dBm @ MCS0 20 MHz Typ. -70 dBm @ MCS7 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -69 dBm @ MCS7 40 MHz
Receiver Sensitivity for 802.11ac (2.4 GHz)	Typ. -90 dBm @ MCS0 20 MHz Typ. -85 dBm @ MCS8 20 MHz Typ. -90 dBm @ MCS0 40 MHz Typ. -68 dBm @ MCS9 40 MHz
Receiver Sensitivity for 802.11ax (2.4 GHz)	Typ. -90 dBm @ MCS0 20 MHz Typ. -89 dBm @ MCS11 20 MHz Typ. -90 dBm @ MCS0 40 MHz Typ. -63 dBm @ MCS11 40 MHz
WLAN Operating Mode	Access Point Master Sniffer
Antenna	External, 2/2 dBi Omni-directional
Antenna Connectors	2 RP-SMA female

Ethernet Interface

Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3az for Energy-Efficient Ethernet IEEE 802.1Q for VLAN Tagging IEEE 802.1X for Authentication
10/100/1000BaseT(X) Ports (RJ45 connector)	5

Firewall

Filter

ICMP
MAC Address
IP Protocol
Port-based
Wi-Fi ACL
Client Isolation

Serial Interface

Console Port

RS-232
8-pin RJ45

USB Interface

Storage Port

USB Type A

LED Interface

LED Indicators

PWR, WLAN, SYSTEM

I/O Interface

Buttons

Reset Button

Physical Characteristics

Housing	Metal
IP Protection Class	IP30
Dimensions	AWK-1165A models: 60 x 100 x 53 mm (2.36 x 3.94 x 2.09 in) AWK-1165A-T models: 60 x 100 x 66 mm (2.36 x 3.94 x 2.60 in)
Weight	AWK-1165A models: 428.5 g (0.94 lb) AWK-1165A-T models: 516.5 g (1.14 lb)
Installation	DIN-Rail Mounting Wall Mounting (optional kit)

Power Supply Parameters

Input Current	9 to 30 VDC, 1.57 to 0.47 A
Input Voltage	9 to 30 VDC
Power Connector	1 removable 2-pin terminal block
Power Consumption	14 W (max.)

Environmental Limits

Operating Temperature	Standard models: -25 to 60°C (-13 to 140°F) Wide temperature models: -40 to 75°C (-40 to 167°F)
Storage Temperature (with packaging)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 61000-6-2/-6-4 EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact 8 kV; Air 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power 2 kV; Signal 1 kV IEC 61000-4-5 Surge: Power 2 kV; Signal 1 kV IEC 61000-4-6 CS: 10 V/m IEC 61000-4-8 PFMM: 30 A/m
Road Vehicles	E Mark E1
Safety	IEC 62368-1 UL 62368-1
Vibration	IEC 60068-2-6
Radio	EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC

MTBF

Time	4,002,106 hours
Standards	Telcordia SR332

Warranty

Warranty Period	5 years
Details	See www.moxa.com/warranty

Package Contents

Device	1 x AWK-1165A Series wireless access point
Installation Kit	1 x DIN-Rail mounting kit
Antenna	2 x 2.4/5 GHz antenna
Documentation	1 x Quick installation guide 1 x Warranty card
