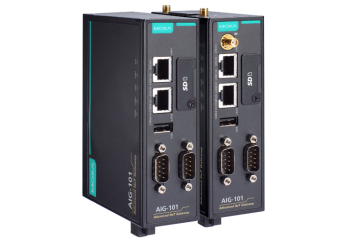

AIG-100

2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateways

Producător: MOXA

Supports generic MQTT client
Supports MQTT connection with built-in device SDKs for Azure/AWS cloud
Supports Modbus RTU/ASCII/TCP master/client
Supports Modbus TCP server
Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
Supports data buffering using store and forward and datalogger
Seamless integration with Moxa ioLogik /UPort devices to easily extend I/O and serial interfaces
Built-in data processing function to eliminate programming efforts
-40 to 70°C operating temperature range
LTE Cat.1 US, EU, and APAC models available

Preț de la 3.410,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Modele
Accesorii
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

AIG-100

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
AIG-101-T-EU 2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS Cloud-supported gateways, EU region with built-in LTE Cat. 1	În stoc	Garanție:		4.530,00 RON 5.571,90 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

AIG-101-T-EU

2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS Cloud-supported gateways, EU region with built-in LTE Cat. 1

Disponibilitate:

În stoc

Preț net:

4.530,00 RON

Intră în cont pentru a vedea prețurile

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
AIG-101-T 2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS Cloud-supported gateways	În stoc	Garanție:		3.410,00 RON 4.194,30 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

AIG-101-T

2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS Cloud-supported gateways

Disponibilitate:

În stoc

Preț net:

3.410,00 RON

Intră în cont pentru a vedea prețurile

Accesorii

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
PWR-12150-EU-SA-T 12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU Plug	În stoc	Garanție:		185,00 RON 227,55 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

PWR-12150-EU-SA-T

12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, EU Plug

Disponibilitate:

În stoc

Preț net:

185,00 RON

Intră în cont pentru a vedea prețurile

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
PWR-12150-UK-SA-T 12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, UK Plug	Out of stock	Garanție:		185,00 RON 227,55 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

PWR-12150-UK-SA-T

12V 1.5A, 5.5/2.1/7.5, w/Nut WT, -40 to 75°C, UK Plug

Disponibilitate: Out of stock

Preț net:

185,00 RON

Intră în cont pentru a vedea prețurile

Descriere

Introduction

The AIG-100 Series gateways are entry-level IIoT gateways that connect Modbus RTU/ASCII/TCP devices to cloud platforms and applications such as Azure, AWS, and MQTT. The AIG-100 as a Modbus master can integrate existing Modbus devices with cloud platforms, effortlessly collecting and transmitting data to the Azure and AWS clouds. Moreover, the gateways also support the Modbus TCP slave mode, enabling simultaneous transmission of data to a cloud platform and local SCADA system.

Effortless Extension of I/O and Serial Interfaces

As the number of field sites increases, additional I/O or serial interfaces are required to connect devices, such as sensors, meters, and inverters, for collecting and processing the large amount of data that is generated. A typical approach is to install remote I/O and device servers to extend the interfaces, but the configuration settings required can be a nightmare for most users. To provide an extremely simple configuration process for interface extension, AIG-100 gateways have better integration and come with an intuitive wizard that can configure Moxa ioLogiks and UPorts with just a few clicks.

Built-in Ready-to-use Data Preprocessing Functions, No Coding Required

Energy Management Systems mainly collect energy data such as average power generation and energy efficiency. This data is then used to display on-site conditions, observe the energy trend, and optimize energy usage. Most edge systems require additional programming to process the data required by energy management system. The AIG-100 can preprocess the edge data and directly send meaningful data to the energy management systems. The intuitive UI enables easy configuration of the IIoT gateway settings to collect and process data.

Secure Remote Access Reduces Maintenance Costs

The AIG-100 comes with powerful troubleshooting tools to diagnose issues with protocol statuses and capture and analyze traffic packets, enabling engineers to remotely identify the root cause of issues and quickly bring the operation back to normal. The tools also provide secure remote access to the AIG-100 to enable the maintenance engineers to directly access it, saving a lot of time and effort and reducing system downtime in energy management systems.

Specificație tehnică

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)	2, Auto MDI/MDI-X connection
Magnetic Isolation Protection	1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols	Modbus TCP Client (Master) / Server (Slave) Generic MQTT Azure IoT Device AWS IoT Core
Configuration Options	Web Console (HTTP/HTTPS)
Time Management	NTP Client GPS

Serial Interface

No. of Ports	2
Connector	DB9 male
Serial Standards	RS-232/422/485
Baudrate	300 bps to 921.6 kbps
Data Bits	7, 8
Parity	None, Even, Odd, Space, Mark
Stop Bits	1, 2
Flow Control	RTS/CTS

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND

Cellular Interface

Cellular Standards	LTE Cat. 1
Cellular Antenna Connectors	SMA x 2
SIM Format	Nano SIM
No. of SIMs	2
GPS Antenna Connectors	SMA x 1
Band Options	US Model:LTE Bands: Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 12 (700 MHz) / Band 13 (700 MHz) / Band 14 (700 MHz) / Band 66 (1700 MHz) / Band 71 (600 MHz)UMTS Bands: 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz)Carrier Approval: Verizon, AT&TEU Model:LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 7 (2600 MHz) / Band 8 (900 MHz) / Band 20 (800 MHz) / Band 28 (700 MHz)UMTS Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) Band 8 (900 MHz)AP Model:LTE Bands: Band 1 (2100 MHz) / Band 3 (1800 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) / Band 28 (700 MHz)UMTS Bands: Band 1 (2100 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz)

Serial Software Features

Industrial Protocols

Modbus RTU/ASCII Master

Modbus RTU/ASCII

Mode	Master
Functions Supported	1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands	256 per port

Modbus TCP

Mode	Server (Slave) Client (Master)
Functions Supported	1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections	4
Max. No. of Server Connections	64
Max. No. of Commands	1500

Generic MQTT Client

Versions Supported	v3.1.1 v3.1
QoS Levels	0, 1, 2
Authentication Methods	Username and password
Secure Transmission	TLS 1.0 TLS 1.1 TLS 1.2
Native Capabilities	Keep Alive Retain Message Clean Session Will and Testament
Moxa Functions	Store and Forward Custom Payload Remote API Invocation

Azure IoT Device

Connection Protocols Supported	MQTT MQTT over WebSockets AMQP AMQP over WebSockets
Authentication Methods	Symmetric Key X.509 Certificate
Azure Direct Methods	Reboot Software Upgrade Remote API Invocation
Moxa Functions	Store and Forward Custom Payload

AWS IoT Core

QoS Levels	0,1
Authentication Methods	X.509 Certificate Private Key Trusted Root CA
Native Capabilities	Keep Alive
Moxa Functions	Store and Forward Custom Payload
Commands Invokable Via Jobs	Reboot Software Upgrade Remote API Invocation

Memory

microSD Slot

Up to 32 GB (SD 2.0 compatible) Max. No. of Tags Supported: 1500

Power Parameters

Input Voltage	9 to 36 VDC
Power Connector	Screw-fastened Euroblock terminal

Physical Characteristics

Dimensions	128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in)
Housing	Metal
Installation	DIN-rail mounting Wall mounting (with optional kit)
Weight	AIG-101-T: 492 g (1.08 lb)AIG-101-T-AP/EU/US: 512 g (1.13 lb)

Environmental Limits

Ambient Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)

Standards and Certifications

EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Safety	IEC 62368-1 UL 62368-1 EN 62368-1
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-64 5 Grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)
Cellular Standards	EN 303 413 (GPS) EN 301 908-1 (WCDMA/LTE) EN 301 908-2/-13 (WCDMA/LTE) EN 301 489-1/-19 EN 301 489-1/-52 EN 62311
Radio Frequency	FCC PTCRB RCM
Carrier Approvals	Verizon AT&T Note: Approval pending from AT&T.
Green Product	RoHS, CRoHS, WEEE

MTBF

Time	566,458 hrs
Standards	Telcordia SR332

Warranty

Warranty Period	5 years
Details	See www.moxa.com/warranty
