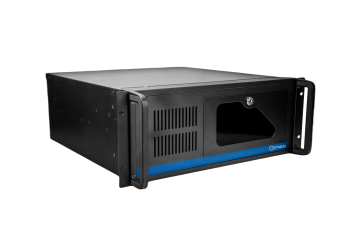

Elmatic BUFFALO PRO V3

Powerful 4U industrial computer for 19” rack cabinet, Intel Core i7-13700 processor, 16 GB RAM, 1TB SSD, Windows 11 PRO.

Producător: Elmatic
Producător: Elmatic
  • Processor: Intel Core i7-13700 2.1/5.2 GHz
  • RAM: 16 GB DDR-5 industrial version
  • Power supply: 500 W ATX
  • Operating system: Windows 11 64 bit Professional
  • Hard drive: M.2 1TB SSD, dedicated to 24/7 operation
  • SATA DVD recorder, black
Preț de la 8.230,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

Specificație tehnică

Processor
Processor Intel Core i7-13700 2.1/5.2 GHz
Socket LGA 1700
RAM
RAM 16 GB DDR-5 industrial version
Graphics
Controller Intel® UHD Graphics
VGA 1 (up to 1920 x 1200 @60Hz)
HDMI 1 (up to 4096 x 2160 @24Hz)
DisplayPort 1 (up to 4096 x 2304 @60Hz)
H/W Monitor
Watchdog Timer 255 - level Watchdog Timer
Smart Fan Function Yes
TPM
Controller Infineon® SLB9672VU2.0
I/O
USB 8 x USB 3.2 Gen 2
COM 6 x COM-Ports for COM1 ~ 6 (1 x Rear, 5 x Internal)
COM1/2 RS232/422/485 with Ring/0V/5V/12V Auto-flow Control Supported (Default set to Ring)
COM3/4/5/6 RS-232 with 0V/5V/12V
Parallel Yes
Złącze PS/2 1 x PS/2 port by Y-cable for keyboard and mouse
GPIO 16-bits (8 x GPI; 8 x GPO), 5V
Expansions
PCIe x16 2 (Signal configured as 1 PCIe x16 or 2 PCIe x8)
PCIe x4 4
PCIe x1 -
PCI -
M.2 1 x M key 2280/22110,
1 x M key 2242/2280
Mini-PCIe -
Mass memory
SATA 4 x SATA 3.0 (RAID 0/1/5/10)
Environment
Working temp. 0 ~ 60°C
Humidity 10 ~ 90%, non-condensing
Operating System Windows 10 IoT Enterprise 2021 LTSC (64-bit)
Windows 11 IoT Enterprise 22H2 (64-bit)
Linux (Support by request)
Noted : All driver base on Intel & chip vendorsupported
Chassis
Storage

5.25" 4x available from outside
3.5" 1x available from outside and 2x from internal
Dimensions
(W. x D. x H.)
480 x 480 x 176.8 mm
Chassis weight 15.6 kg
Front I/O  2 x USB 3.0
Chassis cooling 12 cm front cooler and 8 cm back cooler
Other Temperature, voltage and fan monitoring
