Elmatic EagleEYE 50

A true entry-level server dedicated to CCTV installations. Supports up to 50 cameras with room for further expansion.

2U industrial rack enclosure
Number of channels: up to 50
Up to 36TB Memory (2 hot-swap bays)

Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

Elmatic EagleEYE 50

Descriere

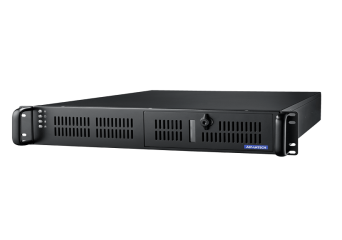

EagleEYE 50 is a high-performance server designed to handle up to 50 channels, with a maximum disk capacity of up to 36 TB. It is based on a 2U chassis with dimensions of 482 x 88 x 480 mm, intended for mounting in a 19" rack cabinet.

The server is equipped with an AIMB-788G2 motherboard and an i3-13100 processor, supported by 16 GB of RAM and integrated graphics. It features three video ports: 1x VGA, 1x HDMI, and 1x DisplayPort, as well as two RJ45 network ports. The operating system is Windows 10 IoT 2021 LTSC.

EagleEYE 50 includes a 256 GB M.2 NVMe system disk and two 3.5" hot-swap storage disks. It supports RAID 0/1 software configurations, with an option for hardware RAID. The server is powered by a 350W power supply

Specificație tehnică

General Information
Number of channels (max. recommended)	50
Disk capacity (max)	Up to 36TB
Chassis
Model	ACP-2320
Format	Rack 2U
Dimensions	482 x 88 x 480 mm
Mounting	Rack 19"
Motherboard
Model	AIMB-788G2
Processor	i3-13100
RAM	16 GB
Graphics	Integrated with processor
Video Ports	1x VGA, 1x HDMI, 1x DisplayPort
Ethernet	2 x RJ45
Operating System	Windows 10 IoT 2021 LTSC
Storage
System disk	256 GB (M.2 NVMe)
Storage	2x 3,5” (hot-swap)
RAID	0/1 software, hardware (optional)
Power supply
Power	350W
Power supply redundancy	No
