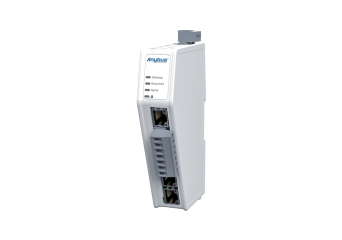

ABC3061 Modbus RTU Master - EtherCAT Slave
Integrate your serial RS-232/485 based industrial devices and equipment to EtherCAT control systems without any changes to the device. Just connect, configure and you’re done.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareABC3061Serial Master – EtherCAT slaveOut of stock Garanție: 4.038,00 RON4.966,74 RONIntră în cont pentru a vedea prețurile ABC3061Serial Master – EtherCAT slaveDisponibilitate: Out of stockPreț net:4.038,00 RON
Useful products
Descriere
The Anybus Communicator can transfer large amounts of data, is fast to configure thanks to its’ drag and drop web interface and is built on trusted Anybus technology.
CONVERT ALMOST ANY TYPE OF SERIAL PROTOCOL
The Communicator can convert both standard serial protocols such as Modbus RTU and proprietary serial request/response or produce/consume based protocols.
TYPICAL SERIAL APPLICATIONS
Typical serial applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.
Basic parameters
- Transfer up to 1 486 bytes of data in both directions
- Convert standard and proprietary RS-232/485 protocols
- Web-based drag and drop configuration interface
- -25 to +70 °C industrial temperature range
- Powered by award winning NP40 network processor
Transfer up to 1 486 bytes of data
Demand for more data is constantly growing and the Communicator has been equipped to handle the challenge. It can transfer 1 486 bytes from the PLC to the Gateway and 1 486 bytes from the gateway to the PLC, 2 972 bytes in total. Support for up to 150 Modbus commands means even complex configurations with multiple nodes can be handled with ease.
Drag and drop web interface
To make sure you spend as little time as possible configuring the Communicator, we have built a graphical and responsive web-based user interface. No software needed to be installed, just open your favorite web browser and get started.
Industrial temperature range
An industrial operating temperature range of -25 to +70 °C ensures the Communicator can excel under harsh conditions.
Powered by proven NP40 technology
The Communicator is built on the award-winning and proven Anybus NP40 network processor. With hundreds of thousands NP40:s used in Embedded applications across the world, it is the industry benchmark for reliable industrial communication.
Security switch
Even with sophisticated security measures, human error is still the main cause of security breaches. To simplify security, we added a physical security switch on the Communicator. It locks your configuration and prevents any access to the web-based configuration interface. Just flip it when your configuration is done and watch the padlock LED on the product light up.
Ethernet configuration port
With a dedicated Ethernet configuration port you don’t need any special configuration cable. In addition, it is easy to connect to the gateway to monitor network traffic.
Optimized for DIN-rail mounting
The slim form factor, front facing network connectors, screw in serial cable connector and the neat cable tie ensure it is fast and simple to install and connect the Communicator.
Diagnostics
When opening the Communicator web interface you immediately see the status of the PROFINET connection and serial connection. You can even see the status of individual serial nodes. It’s also equipped with a serial log and an event log for further analysis.
Support
Sometimes you run into a problem where you need help. That’s why we have included a support page in the user interface with contact information. There is even a button to generate a support package to simplify troubleshooting.
Specificație tehnică
SERIAL RS232/485 PORT
Ports | 1 x RS232/RS485 |
Baud rate | 1200 bps to 128 kbps |
Max stations | 31 |
Isolation | Galvanic isolation |
Connector | 7-pole Phoenix connector |
Max nodes | 31 |
MODBUS RTU
Modes | Master |
Functions supported | 1,2,3,4,5,6,15,16,22,23 |
Max number of commands | 150 |
Input data size | 1500 bytes |
Output data size | 1500 bytes |
GENERAL
Dimensions (L x W x H) with serial and power connector | 98 x 27 x 144 mm 3.85 x 1.06 x 5,67 in |
Weight | 150 grams, 0.33 lb |
Buttons and switches | Reset button and security switch |
LEDs | Gateway, Network 1 and Serial status |
IP rating | IP20 |
Housing material | PC ABS, UL 94 VO |
Mounting | DIN rail (35 * 7,5/15) |
ENVIRONMENT
Operating temperature | -25 to 70° C, -13 to 158° F |
Storage temperature | -40 to 85° C, -40 to 185° F |
Relative humidity | 0-95% non condensing |
Installation altitude | Up to 2 000 m |
POWER
Input voltage | 12 - 30 VDC |
Current consumption | Typical: 160 mA @ 24V Max: 400 mA @ 12V |
Power connector | 3-pin plug with screw terminal |
Protection | Reverse voltage protection and short circuit protection |
ETHERNET PORTS
Ports | 2 x Ethernet |
Isolation | Galvanic isolation |
Bitrate | 10/100 Mbit full duplex |
Connector | RJ45 |
Switch. | Dual port cut-through switch |
ETHERCAT
Mode | EtherCAT slave according to IEC 61158 Type 12 (ETG.1000) |
Addressing modes | Logical, node, and position |
Synchronization modes | Free run |
Input data size | 1 486 bytes |
Output data size | 1 486 bytes |
Network redundancy | Device Level Ring (DLR), beacon-based |
Minimum cycle time | 100 μs |
Features | Supports CANopen over EtherCAT (CoE) |
ESI File | Available |
CERTIFICATIONS AND STANDARDS
UL | CULUSfile number E214107 |
CE | 2014/30/EU |
KC | R-R-ABJ-Communicator (Pending for EtherCAT MainDevice) |
EMC |
EN 61000-6-2 |
Environment |
IEC 60068-2-1 Ab |
Vibration and shock |
IEC 60068-2-27 |
Waste certification | WEE |
CONFIGURATION
Configuration software | Web based configuration |
Configuration ports | Dedicated 10/100 Mbit RJ45 Ethernet configuration port and Ethernet ports |
SECURITY
Secure boot | Ensures software authenticity |
Security switch | Physical switch that enable/disable access to the web based configuration interface |
PRODUCT PACKAGING
Content | Gateway, power connector, start-up guide, compliance information sheet |
Box material | Cardboard |
MEAN TIME BETWEEN FAILURE
MTBF | > 1 500 000 h, Telcordia Method I Case 3 at 30° C |
