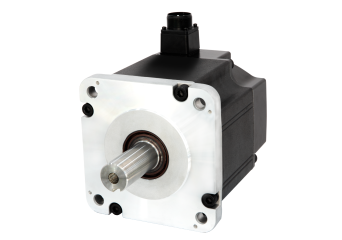

UMM-B5 0,05 kW
Producător: UNITRONICS
Producător: UNITRONICS
- rated torque 0,159 Nm (max. 0,557 Nm)
- rated speed 3000 RPM (max. 7000 RPM)
- Absolute 23bit encoder
- IP67
- optional brake
Preț de la 2.463,90 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
UMM-B5 0,05 kW
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareUMM-0000BA-B5SERVO MT 50W 200V, 1phase A23 B5Out of stock Garanție: 2.463,90 RON3.030,60 RONIntră în cont pentru a vedea prețurile UMM-0000BA-B5SERVO MT 50W 200V, 1phase A23 B5Disponibilitate: Out of stockPreț net:2.463,90 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareUMM-0000BAB-B5SERVO MT 50W 200V, 1phase A23 B5 + brakeOut of stock Garanție: 4.176,00 RON5.136,48 RONIntră în cont pentru a vedea prețurile UMM-0000BAB-B5SERVO MT 50W 200V, 1phase A23 B5 + brakeDisponibilitate: Out of stockPreț net:4.176,00 RON
Descriere
The wide power range of Unitronics servo motors allows them to be adapted to any size of machine. However, if the application requirements are higher, we offer planetary gears (LINK) that will significantly improve the performance of servo motors. Full motor specification later in the description.
What makes Unitronics servo unique?
- Program PLC and servo drives in one UniLogic environment. This will speed up work and integration for larger industrial applications or machines.
- Automatic configuration and communication of PLC with servo drive. Just select the servo drive model and the rest of the configuration will be done by the software.
- Copy real life mechanical connections to avoid errors at the design stage and increase application safety.
- UniLogic includes a built-in, quick diagnostic tool to check servo drive performance and operating parameters in real time.
- Autotune and single-parameter adjustments optimize movement with minimal effort.
- CAM and axis synchronization (only in EtherCAT) make Unitronics servo drives suitable for the most complex applications.
Power and encoder cables
We also need appropriate cables for the selected servo motor. The choice depends on:
- motor series (B5/B6),
- usage of brake in servo (PN – power cable without brake, PB – power cable with brake),
- cable type (standard /R – robotic),
- length (03 – 3 meters, 05 – 5 meters, 10 – 10 meters).
Specificație tehnică
| Rated Output Power (kW) | 0,05 |
| Rated Torque (Nm) | 0,159 |
| Peak Torque (Nm) | 0,557 |
| Rated Current (A) | 0,9 |
| Max. Current (A) | 3,3 |
| Rated Speed (RPM) | 3000 |
| Max. Speed (RPM) | 7000 |
| Rotor Moment of Inertia (with brake) (kg*cm^2) | 0,023 (0,0268) |
| Weight (kg) | 0,4 (0,6) |
| Brake Rated Voltage | DC24V |
| Brake Holding Torque (Nm) | 0,32 |
| Insulation class | F |
| Enclosure | IP67 |
Note: The values in parentheses "()" represents the values of motors with brake.
- Torque/speed curve
Descarca documentatie
