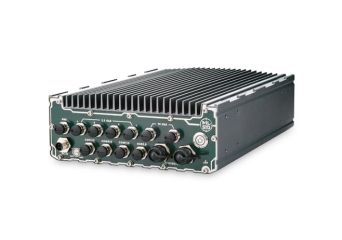

SEMIL-2200
2U 19“/2 rack mount IP69K mission critical computer supporting Intel 14th/ 13th/ 12th-Gen Core processor
- 2U IP69K mission critical computer
- Up to 128 GB ECC/ non-ECC DDR5 4800 SDRAM
- -40°C to 70°C wide-temperature fanless operation
- 2x 10GbE, 4x 2.5GbE, 1x GbE via M12 X-coded connectors
- 2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
- 9V to 36V wide-range DC input with built-in ignition power control
- MIL-STD-810H, MIL-STD-461G, MIL-STD-1275D compliant
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
SEMIL-2200
Descriere
SEMIL-2200 series is a cutting-edge, AI-enabled mission-critical computer engineered for demanding environments. Housed in a 2U 19"/2 rackmount chassis, this IP69K-rated system is impervious to dust, water, and capable of flawless operations in -40°C to 70°C environments. The SEMIL-2200 series is powered Intel's 14th, 13th, or 12th generation processors and supports up to 128GB ECC/ non-ECC DDR5 memory to offer exceptional computing power and efficiency.
The system employs a corrosion-resistant stainless steel and aluminum chassis to safeguard against moisture and salinity. Its ruggedized M12 connectors can withstand shock and vibration, making it ideal for harsh industrial and field applications. Its comprehensive connectivity options include dual CAN bus 2.0, multiple USB 3.2, and seven Ethernet ports including two 10GbE to connected high-speed devices.
The SEMIL-2200 series is MIL-STD-810H compliant, proven to withstand extreme temperatures, humidity, vibration, and shock. Additionally, it complies with MIL-STD-461G standards, ensuring immunity to electromagnetic interference. For applications in mobile or vehicular environments, this platform meets the requirements of MIL-STD-1275D. With its exceptional performance, rugged construction, and adherence to stringent military standards, the SEMIL-2200 series is the ideal solution for critical applications demanding reliability and durability in mission-critical environments.
Specificație tehnică
| System Core | |
|---|---|
| Processor | |
| Supported CPUs (Intel® 14th Gen, LGA1700, 35W TDP) | Core™ i9-14900T; Core™ i7-14700T; Core™ i5-14500T; Core™ i3-14100T |
| Supported CPUs (Intel® 13th Gen, LGA1700, 35W TDP) | Core™ i9-13900TE; Core™ i7-13700TE; Core™ i5-13500TE; Core™ i3-13100TE |
| Supported CPUs (Intel® 12th Gen, LGA1700, 35W TDP) | Core™ i9-12900TE; Core™ i7-12700TE; Core™ i5-12500TE; Core™ i3-12100TE |
| Chipset | Intel® R680E platform controller hub |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) |
| Memory | Up to 128 GB ECC / non-ECC DDR5 4800 SDRAM (2 × SODIMM) |
| AMT | Supports Intel vPro / AMT 16.0 |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |
| Ethernet Ports | 2 × 10GbE (Intel X550-AT2, WoL) (M12 X-coded) 4 × 2.5GbE (Intel I226-IT) (M12 X-coded) 1 × GbE (Intel I219-LM, WoL) (M12 X-coded) |
| CAN Bus | 2 × isolated CAN 2.0 ports, supporting SocketCAN in Linux |
| USB | 2 × Type-C USB 3.2 Gen1x1 (5Gbps) ports (shared DisplayPort) 2 × USB 2.0 ports (M12 A-coded) |
| Video Port | 2 × Type-C USB connector supporting DP output (shared USB 3.2 Gen1x1) |
| Serial Ports | 2 × isolated 3-wire RS-232 (COM1/COM2) 1 × isolated 3-wire RS-232 (COM3) + 1 × RS-422/485 (COM4) |
| Storage Interface | |
| SATA | 2 × internal SATA for 2.5" HDD/SSD, RAID 0/1 support |
| M.2 (NVMe) | 1 × M.2 2280 M-key NVMe (PCIe Gen4 x4) for NVMe SSD |
| Expansion Bus | |
| Mini PCIe | 3 × full-size mini PCI Express sockets with SIM slot |
| M.2 (B-key) | 1 × M.2 2242/3052 B-key with dual SIM slot for 5G/4G module |
| M.2 (E-key) | 1 × M.2 2230 E-key for Wi-Fi |
| Power Supply | |
| DC Input | 9V to 36V DC input with reverse polarity protection (M12 L-coded) |
| Ignition Control | Built-in ignition power control (IGN/GND via M12 L-coded connector) |
| Mechanical | |
| Dimensions (W × D × H) | 220 × 310 × 90.5 mm (excl. rack-mount bracket) |
| Weight | 6.2 kg |
| Mounting | Rack-mounting (standard) and wall-mounting (standard) |
| Environmental | |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 10% to 90%, non-condensing |
| Vibration | MIL-STD-810H: 514.8C-VII, Category 4 |
| Shock | MIL-STD-810H: 516.8, Procedure I |
| EMC / Electrical / Protection | |
| EMC | MIL-STD-461G: CE102 (10kHz–10MHz), RE102 (2MHz–18GHz), RS103 (2MHz–18GHz, 50V/m) |
| Electrical Systems | MIL-STD-1275D: Normal operating mode (ripples, surges, spikes) |
| IP Rating | IP69K |
