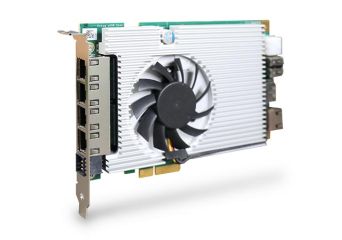

PCIe-NX154PoE
100 TOPS Intelligent Frame Grabber Card with 4x PoE+ ports for IVA or AI Inspection
Producător: Neousys Technology
Producător: Neousys Technology
- Powered by NVIDIA® Jetson Orin™ NX bundled with JetPack 5.1.1
- Single-slot half-length PCIe card form factor
- 4x PoE+ 2.5 GbE ports with a 50W total power budget
- 100 TOPS AI inference performance capable of up to four simultaneous streams of 4K@30FPS video decoding
- 1x isolated RS-485 and 1x RS-232
- x1 Gen2 PCI Express interface offering 2.5Gb/s
- -25°C to 60°C operating temperature with airflow (No throttling at 60°C with Orin NX 20W TDP mode)
- Compatible with Windows and Linux host computers
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
PCIe-NX154PoE
Descriere
Specificație tehnică
| PCIe-NX154PoE | |
| Processor | NVIDIA® Jetson Orin™ NX SoM, copmrising NVIDIA Ampere GPU and ARM Cortex CPU |
| RAM | 8GB/ 16GB LPDDR5 |
| Display port | 1 |
| HDMI | - |
| PoE+ | 4 |
| M.2 NVMe | 1x M.2 2242 M key for NVMe SSD |
| USB 3.0 | - |
| USB 2.0 | 2 |
| RS-232 | 1 |
| RS-485 | 1 (isolated) |
| RS-232/422/485 | - |
| TPM | - |
| Working temp. | -25°C ~ +60°C |
