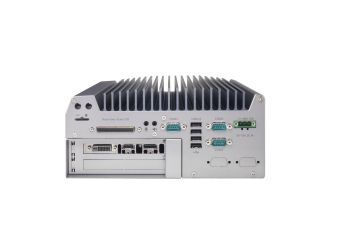

Nuvis-5306RT
Intel® 6th-Gen Skylake machine vision controller with vision-specific I/O, real-time control & GPU computing
- Intel® 6th Gen Core™ i7/i5 65W/35W CPU, up to 32 GB DDR4
- Integrated vision-specific I/O
- 4-CH CC/CV lighting controller
- 4-CH camera trigger outputs
- 1-CH quadrature encoder input
- 8-CH isolated DI and 8-CH isolated DO
- Patented MCU-based, real-time I/O control by DTIO V2 and NuMCU
- Built-in camera interfaces
- 4-CH IEEE 802.3at Gigabit PoE+ ports
- 4-CH USB 3.1 Gen1 ports
- Supports NVIDIA 75W GPU for GPU-accelerated MV
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Nuvis-5306RT
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNuvis-5306RT-NuMCU(EA)Core gen 6,2xGbE,4xPoE+,1xPCIe,NuMCUOut of stock Garanție: Nuvis-5306RT-NuMCU(EA)Core gen 6,2xGbE,4xPoE+,1xPCIe,NuMCUDisponibilitate: Out of stock- -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNuvis-5306RT-DTIO(EA)Core gen 6,2xGbE,4xPoE+,1xPCIe,DTIOV2Out of stock Garanție: Nuvis-5306RT-DTIO(EA)Core gen 6,2xGbE,4xPoE+,1xPCIe,DTIOV2Disponibilitate: Out of stock-
Descriere
Introducing the most powerful vision controller ever built! Nuvis-5306RT integrates every single function you need for machine vision applications in a compact footprint, including exceptional computing power, built-in camera interfaces and real-time vision-specific I/O control.
To ensure high quality images, a MV system requires accurate interaction between lighting, camera, actuator and sensor devices. Nuvis-5306RT integrates LED lighting controller, camera trigger, encoder input, PWM output and digital I/O, to connect and control all the vision devices. All the vision-specific I/O are managed by Neousys’ patented MCU-based architecture and DTIO/NuMCU firmware to guarantees microsecond-scale real-time I/O control.
Computing power is another crucial requirement for a vision system. In addition to the remarkable performance brought by its Intel® 6th Gen Core™ i7/i5 CPU, Nuvis-5306RT can further accommodate NVIDIA® 75W TDP GPU to leverage GPU-accelerated vision library or deep-learning vision software. Combining built-in PoE+ and USB 3.1 Gen1 interfaces and the expandability for CameraLink and CoaXPress, Nuvis-5306RT is the ideal platform for demanding MV applications.
Specificație tehnică
| Processor | Supports 6th-Gen Intel® Core™ LGA1151 CPU - Intel® Core™ i7-6700 (8M Cache,3.4/4.0 GHz, 65W TDP) - Intel® Core™ i5-6500 (6M Cache, 3.2/3.6 GHz, 65W TDP) - Intel® Core™ i7-6700TE (8M Cache, 2.4/3.4 GHz, 35W TDP) - Intel® Core™ i5-6500TE (6M Cache, 2.3/3.3 GHz, 35W TDP) |
|---|---|
| Chipset | Intel® Q170 Platform Controller Hub |
| Graphics | Integrated Intel® UHD Graphics 530 |
| Memory | Up to 32 GB DDR4 2133 (one SODIMM slots) |
| AMT | Supports AMT 11.0 |
| TPM | Supports TPM 2.0 |
| Ethernet Port | 6x Gigabit Ethernet ports by 1x I219 and 5x I210 |
| POE+ | IEEE 802.3at PoE+ PSE on GigE Port 3 ~ Port 6, 80 W total power budget |
| USB | 4x USB 3.1 Gen1 4x USB 2.0 |
| Video Port | 1x VGA , supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI/PCI Express | 1x PCIe x16 slot @ Gen3, 8-lanes PCIe signals in Cassette, supporting - 75W NVIDIA® GPU card - COTS CameraLink and CoaXPress camera interface card |
| Mini PCI-E | 1x internal mini PCI Express socket with front-accessible SIM socket 1x internal mini PCI Express socket with internal SIM socket (mux with mSATA) |
| M.2 | N/A |
| Expandable I/O | 1x MezIO™ expansion port for Neousys MezIO™ modules |
| SATA HDD | 2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 | N/A |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote Ctrl. & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 4.5 kg |
| Mounting | Wall-mounting |
| Operating temperature | with i7-6700TE, i5-6500TE (35W TDP) -25°C ~ 60°C ** with i7-6700, i5-6500 (65W TDP) -25°C ~ 60°C */ ** (configured as 35W CPU mode) -25°C ~ 50°C */ ** (configured as 65W CPU mode) |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | IEC60068-2-68 |
| Shock | IEC60068-2-27 |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
*For i7-6700 running at 65W mode, the high operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
