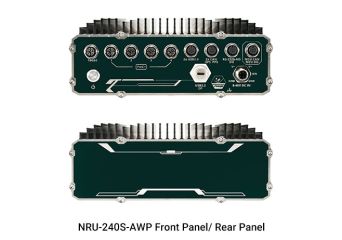

NRU-240S-AWP

IP66 Waterproof AGX Orin Computer, 4x PoE+ GbE, and 1x 10GbE Ports, 2x CANBus

Producător: Neousys Technology
Producător: Neousys Technology
  • Powered by NVIDIA Jetson AGX Orin SoM
  • IP66 waterproof and dustproof
  • -25°C to 70°C fanless operation
  • 4x PoE+ GbE and 1x 10GBASE-T via M12 X-coded connectors
  • 2x isolated CAN 2.0, 1x RS232, and 1x isolated RS485 via M12 A-coded connectors
  • 1x system monitoring port by automotive-grade MCU
  • 8V to 48V wide-range DC input with built-in ignition power control
Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Descriere

Specificație tehnică

CPU NVIDIA Jetson AGX Orin system-on-module (SOM), comprising NVIDIA Ampere GPU and Arm Cortex-A78AE CPU
RAM 32GB/ 64GB LPDDR5 (JAO 32GB/ JAO 64GB) @ 3200 MHz on SOM
eMMC 64GB eMMC 5.1 on SOM
Gigabit Ethernet 5
USB 2x USB 2.0
1x USB 3.2 (Type C shared with DisplayPort)
CANBus 2
Serial Port 1x RS-485/232
miniPCIe 1x full-size mini PCI Express socket for WiFi 6 or CAN
1x full-size mini PCI Express socket for GNSS or 4G LTE
2,5" SDD 2
Slot M.2 1x M.2 3042/ 3052 B key for LTE/ 5G module with dual micro SIM support
1x M.2 2280 M key NVMe socket for NVMe SSD
Working temp. -25°C ~ +60°C (30W TDP, with full function)
