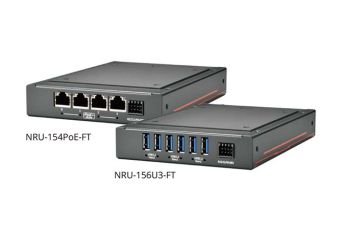

NRU-154PoE-FT/ NRU-156U3-FT
NVIDIA® Jetson Orin™ NX Edge AI Computer with 4x 2.5GbE PoE+/ 6x USB 3.2 ports and Flattop Heatsink
Producător: Neousys Technology
Producător: Neousys Technology
- Powered by NVIDIA® Jetson Orin™ NX bundled with JetPack 5.1
- Flattop heatsink design for conduction-cooled, in-cabinet deployment
- Up to 100 TOPS AI inference performance
- 4x 2.5GbE PoE+ ports (NRU-154PoE-FT)
- 6x USB 3.2 ports (NRU-156U3-FT)
- 1x RS-232 and 1x isolated RS-485
- 1x M.2 2242 M key NVMe for BSP and data storage
- -25°C to 60°C fanless operating temperature (with heat spreader attachment
- No throttling at 60°C with Orin NX 20W TDP mode
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
NRU-154PoE-FT/ NRU-156U3-FT
Descriere
Specificație tehnică
| NRU-154PoE-FT | NRU-156U3-FT | |
| Processor | NVIDIA Jetson Orin NX SoM, comprising NVIDIA Ampere GPU and ARM Cortex CPU |
NVIDIA Jetson Orin NX SoM, comprising NVIDIA Ampere GPU and ARM Cortex CPU |
| RAM | 8GB/ 16GB LPDDR5 | 8GB/ 16GB LPDDR5 |
| VGA (DSub) | - | - |
| HDMI | - | - |
| Display Port | 1 | 1 |
| Ethernet | 1x GbE | 1x GbE |
| PoE++ | 4 | - |
| Mini PCIe | - | - |
| M.2 | 1x M.2 2242 M key socket (PCIe Gen4 x2) for NVMe SSD | 1x M.2 2242 M key socket (PCIe Gen4 x2) for NVMe SSD |
| USB 3.2 | - | 6 |
| USB 2.0 | 2 | 2 |
| RS-232/485 | 1 | 1 |
| TPM | - | - |
| Working temp. | -20°C ~ +60°C | -20°C ~ +60°C |
