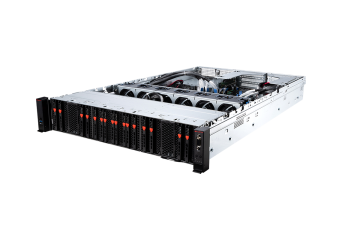

S2301(POC)
2U chassis, Dual Socket SP5 supports AMD EPYC 9005/9004 Series processors, 2x PCIe 5.0 x16 FHHL expansion slots
Producător: MSI EPS
Producător: MSI EPS
- 2U, Dual Socket SP5 supports AMD EPYC 9005/9004 Series processors
- (24) DDR5 DIMM slots, 1DPC, up to 6000MT/s, RDIMM/RIMM-3DS
- (8) Hot-swap E3.S 1T PCIe5.0 x4 NVMe
- (8) Hot-swap E3.S 2T PCIe5.0 x4 CXL2.0 CMM-D
- (2) PCIe 5.0 x16 FHHL expansion slots
- (2) 1000Base-T Ethernet ports (Intel I350AM2) on motherboard support NCSI function
- (1) OCP3.0 PCIe 5.0 slot, supports NCSI funtion
- (1) 1000Base-T Dedicated server management port for ASPEED AST2600 with IPMI & DMTF Redfish support, dual BIOS and BMC
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
S2301(POC)
Descriere
Application
- HPC
- Data Center
- EDA
- Private/Public Cloud
- In-Memory Database
Specificație tehnică
| Feature | S2301 |
|---|---|
| Form Factor | 2U |
| Dimensions | 438mm (17.2") W x 87mm (3.4") H x 770mm (30.3") D |
| Processor | Dual AMD EPYC 9005/9004 Series processors, up to TDP 500W |
| Socket | (2) LGA6096 (Socket SP5) |
| Memory | (24) DDR5 DIMM slots, 12 channels per CPU (1DPC), RDIMM/RDIMM-3DS - Max. Frequency: 6000MT/s - Max. Capacity per DIMM: 256GB |
| Drive Bays | (8) Hot-swap E3.S 2T drive bays support CXL2.0 CMM-D (8) Hot-swap E3.S 1T drive bays support PCIe 5.0 x4 NVMe |
| Internal Storage | (2) M.2 2280 PCIe 3.0 x2 ports from CPU0 |
| Expansion Slots | Riser 1: (1) PCIe 5.0 x16 slot from CPU0 supports FHHL PCIe card Riser 2: (1) PCIe 5.0 x16 slot from CPU1 supports FHHL PCIe card |
| Networking | (2) 1000Base-T Ethernet Ports (Intel® I350AM2, NCSI supported) (1) PCIe 5.0 x16 OCP3.0 slot from CPU0 (NCSI supported) |
| Front I/O | (8) Hot-swap E3.S 2T drive bays (8) Hot-swap E3.S 1T drive bays (1) USB 3.0 Type-A Port (1) USB 2.0 Type-A Port (1) System Power LED Button (1) UID LED Button (1) Reset Button (4) Status LEDs: Fault/LAN/M.2 |
| Rear I/O | (2) 1000Base-T Ethernet Ports (1) 1000Base-T Dedicated Server Management Port (2) USB 3.0 Type-A Ports (1) VGA D-Sub Port (1) COM RJ45 Port (1) UID LED Button |
| TPM | (1) TPM header with SPI interface, Optional TPM2.0 module |
| Security | TPM 2.0 |
| Server Management | ASPEED AST2600 with AMI MegaRAC firmware supporting IPMI 2.0 and DMTF Redfish API Dual BIOS and BMC (1) 1000Base-T Dedicated Server Management Port (1) MicroSD card slot for BMC log |
| Environment | System Operating Temperature: 0°C ~ 35°C Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% to 85% (non-condensing) |
| Power Supply | (1+1) 2400W CRPS 80+ Titanium Dimension (WxHxL): 73.5 x 40 x 185 mm AC Input: 1000W, 100-127Vac, 15A, 47-63Hz (Not for China/India/Korea) 2400W, 200-240Vac, 15A, 47-63Hz |
| Cooling | (2) EVAC air cooling modules for max. 500W CPU (6) 6056 Hot-swap System Fans |
| Certification | CE, FCC (Class A) |
