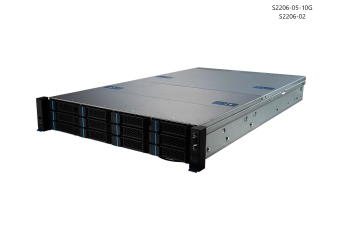

S2206
2U chassis, up to 24x Hot-swap 2.5” front drive bays, 2x 10G SFP+
- 2U
- Dual Socket SP5, supports AMD EPYC 9004/9005 series processors
- (24) DDR5 DIMM Slots, 1DPC, upto 6400MT/s, RDIMM/RIMM-3DS
- (24) Hot-swap 2.5” front drive bays support (16) U.2 PCIe 4.0 NVMe + (8) SATA 3.0/SAS (S2206-04, S2206-06-10G)
- (12) Hot-swap 3.5"/2.5” front drive bays support (8)SATA 3.0/SAS + (4)U.2 PCIe 4.0 NVMe (S2206-02, S2206-05-10G)
- (7) PCIe 5.0 expansion slots including (3) PCIe5.0 x16 FH slots can support max 3 GPU cards with TDP up to 450W and (4) PCIe5.0 x16(x8 signal) slots (S2206-02, S2206-05-10G)
- (3) PCIe 5.0 x16 expansion slots (S2206-04, S2206-06-10G)
- (2) 1000Base-T Ethernet Ports (Intel I350AM2) on motherboard support NCSI function (S2206-02, S2206-04)
- (1) OCP3.0 PCIe 5.0 slot, supports NCSI funtion (S2206-02, S2206-04)
- (2) 10G SFP+ Ethernet Ports (Intel X710-BM2) through OCP3.0 NIC OCP-321 (S2206-05-10G, S2206-06-10G)
- (1) 1000Base-T Dedicated Server Management Port
- ASPEED AST2600 with IPMI & DMTF Redfish Support
- Dual BIOS and BMC
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Descriere
Application
- Cloud Computing Service
- Content Delivery Network
- Network Function Virtualization
- 5G Core and Edge Telecom Micro Data Center
- AI Inference and Machine Learning
Specificație tehnică
| Feature | S2206-04 | S2206-02 | S2206-05-10G | S2206-06-10G |
|---|---|---|---|---|
| Form Factor | 2U | |||
| Dimensions | 438mm (17.2") W × 87mm (3.4") H × 770mm (30.3") D | |||
| Processor | Dual AMD EPYC 9004/9005 series processors, up to 400W TDP | Dual AMD EPYC 9004/9005 series processors, up to 400W TDP | Dual AMD EPYC 9004 and EPYC 9004 with AMD 3D V-Cache, up to 400W TDP | Dual AMD EPYC 9004/9005 series processors, up to 400W TDP |
| Socket | (2) AMD Socket SP5 | |||
| Chipset | N/A | N/A | – | N/A |
| Memory | (24) DDR5 DIMM slots, 12 channels/CPU (1DPC), RDIMM/RDIMM-3DS, up to 6400MT/s Max. per DIMM: RDIMM 96GB, RDIMM-3DS 256GB (S2206-05-10G supports up to 256GB) |
|||
| Drive Bays | (24) Hot-swap 2.5" (16× U.2 NVMe + 8× SATA/SAS) | (12) Hot-swap 3.5"/2.5" (8× SATA/SAS + 4× U.2 NVMe) | (12) Hot-swap 3.5"/2.5" (8× SATA/SAS + 4× U.2 NVMe) | (24) Hot-swap 2.5" (16× U.2 NVMe + 8× SATA/SAS) |
| Internal Storage | (2) M.2 2280 PCIe 3.0 x2 slots | |||
| Expansion Slots | Riser 1: (1) PCIe 5.0 x16, (2) PCIe 5.0 x16 (x8 signal) OCP3.0: (1) PCIe 5.0 x16 |
Riser 1-3: up to 7 PCIe 5.0 x16 slots (FHFL/FHHL GPU) OCP3.0: (1) PCIe 5.0 x16 |
Riser 1-3: up to 7 PCIe 5.0 x16 slots (FHFL/FHHL GPU) OCP3.0: (1) PCIe 5.0 x16 |
Riser 1: (1) PCIe 5.0 x16, (2) PCIe 5.0 x16 (x8 signal) OCP3.0: (1) PCIe 5.0 x16 |
| Networking | (2) 1GbE ports (Intel® I350AM2) | (2) 10G SFP+ ports (Intel® X710-BM2, via OCP3.0 NIC OCP-321) | ||
| RAID | N/A | N/A | N/A | – |
| Front I/O | (24) Drive bays, (2) USB 3.0, VGA, Status LEDs, Control buttons | (12) Drive bays, (2) USB 3.0, VGA, Status LEDs, Control buttons | (12) Drive bays, (2) USB 3.0, VGA, Status LEDs, Control buttons | (24) Drive bays, (2) USB 3.0, VGA, Status LEDs, Control buttons |
| Rear I/O | (2) 1GbE, (1) Management port, (2) USB 3.0, VGA, COM RJ45, UID LED | (1) Management port, (2) USB 3.0, VGA, COM RJ45, UID LED | ||
| Security | TPM 2.0 | |||
| Server Management | ASPEED AST2600, IPMI 2.0, Redfish, Dual BIOS+BMC, 1GbE management port, MicroSD for log storage | |||
| Environment | Operating Temp: 0°C–35°C, Storage Temp: -20°C–70°C, Humidity: 5–85% | |||
| Power Supply | (1+1) 1600W CRPS 80PLUS Platinum | (1+1) 2000W CRPS 80PLUS Platinum | (1+1) 2000W CRPS 80PLUS Platinum | (1+1) 1600W CRPS 80PLUS Platinum |
| Cooling | (2) EVAC cooling modules for CPU up to 360W, (6) Hot-swap 6038 fans, Air shroud (2U/FL GPU/PCIe depending on model) | |||
| Certification | CE, FCC (Class A) | |||
