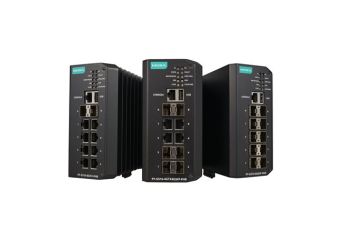

main product photo

PT-G510

IEC 61850-3 10-port Layer 2 full Gigabit PRP/HSR managed Ethernet switches

Producător: MOXA
Producător: MOXA
  • IEC 61850-3 Edition 2 Class 2 compliant
  • IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
  • IEEE 1588 hardware time stamp supported
  • Supports IEEE C37.238 and IEC 61850-9-3 power profiles
  • GOOSE Check for easy troubleshooting
  • Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
  • -40 to 75°C operating temperature range
În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 12 model

Promocja cenowa na model HDR-15-5

PT-G510

PT-G510

Modele

  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-8GSFP-PHR-HV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature
    		 Out of stock Garanție:
    PT-G510-8GSFP-PHR-HV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-8GSFP-PHR-WV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature
    În stoc
    		Garanție:
    PT-G510-8GSFP-PHR-WV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature
    Disponibilitate:
    În stoc
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-8GTX-PHR-HV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature
    		 Out of stock Garanție:
    PT-G510-8GTX-PHR-HV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-8GTX-PHR-WV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature
    		 Out of stock Garanție:
    PT-G510-8GTX-PHR-WV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-4GTX4GSFP-PHR-HV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature
    		 Out of stock Garanție:
    PT-G510-4GTX4GSFP-PHR-HV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-4GTX4GSFP-PHR-WV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature
    		 Out of stock Garanție:
    PT-G510-4GTX4GSFP-PHR-WV
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-8GSFP-PHR-HV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature, Conformal Coating
    		 Out of stock Garanție:
    PT-G510-8GSFP-PHR-HV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature, Conformal Coating
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-8GSFP-PHR-WV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating
    		 Out of stock Garanție:
    PT-G510-8GSFP-PHR-WV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 10 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-8GTX-PHR-HV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature, Conformal Coating
    		 Out of stock Garanție:
    PT-G510-8GTX-PHR-HV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature, Conformal Coating
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-8GTX-PHR-WV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating
    		 Out of stock Garanție:
    PT-G510-8GTX-PHR-WV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 8 100/1000BaseT(X) ports and 2 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-4GTX4GSFP-PHR-HV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature, Conformal Coating
    		 Out of stock Garanție:
    PT-G510-4GTX4GSFP-PHR-HV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (88 to 300 VDC or 85 to 264 VAC), -40 to 75°C operating temperature, Conformal Coating
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    PT-G510-4GTX4GSFP-PHR-WV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating
    		 Out of stock Garanție:
    PT-G510-4GTX4GSFP-PHR-WV-CT
    IEC 61850-3 and IEC 62439-3 full Gigabit Managed Ethernet switch with 4 100/1000BaseT(X) ports and 6 100/1000Base SFP ports, isolated dual power supply (24/48 VDC), -40 to 75°C operating temperature, Conformal Coating
    Disponibilitate: Out of stock
    -

Descriere

The PT-G510 Series is designed to deliver the highest level of system availability and data integrity for mission-critical applications in digital substations that demand zero-recovery-time redundancy. The PT-G510 Series supports PRP/HSR to achieve seamless redundancy for substations and process automation systems. Hardware-based IEEE 1588v2 PTP is also supported for time-critical applications. Featuring a highly durable design, the PT-G510 Series is certified for IEC 61850-3 Edition 2 Class 2 to fulfill demanding requirements in substation applications.

The PT-G510 Series comes with eight 100/1000BaseT(X) Ethernet ports or 100/1000BaseSFP slots with two dedicated 100/1000BaseSFP PRP/HSR ports combined with support for a complete redundancy protocol suite including PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability. The PT-G510 Series further supports GOOSE Check to efficiently monitor GOOSE packets and features a built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA systems.

Specificație tehnică

  • Ethernet Interface
100/1000BaseT(X) Ports (RJ45 connector) PT-G510-8GTX-PHR models: 8
PT-G510-4GTX4GSFP-PHR models: 4
100/1000BaseSFP Ports PT-G510-8GSFP-PHR models: 10
PT-G510-4GTX4GSFP-PHR models: 6
Standards IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3x for flow control
  • Ethernet Software Features
Management HTTPS
Dying Gasp
Back Pressure Flow Control
DHCP Option 66/67/82
Fiber check
Flow control
LLDP
Port Mirror
SNMP Inform
BOOTP
DHCP Server/Client
HTTP
IPv4/IPv6
RARP
SMTP
SNMPv1/v2c/v3
Syslog
Telnet
TFTP
MIB MIB-II
Ethernet-like MIB
Bridge MIB
P-BRIDGE MIB
Q-BRIDGE MIB
RSTP MIB
RMON MIB Groups 1, 2, 3, 9
Filter IGMP v1/v2/v3
GMRP
GVRP
802.1Q
QinQ VLAN
Redundancy Protocols Link Aggregation
MSTP
RSTP
STP
Turbo Chain
Turbo Ring
MRP
HSR
PRP
Coupling
RSTP grouping
Security RADIUS
TACACS+
SSH
Port Lock
Broadcast storm protection
MAB authentication
Sticky MAC
Access control list
Time Management NTP Server/Client
SNTP
IEEE 1588v2 PTP (hardware-based)
Power Substation GOOSE Check
IEC 61850 QoS
MMS
  • Switch Properties
Priority Queues 8
Max. No. of VLANs 256
VLAN ID Range 1 to 4094
RSTP Grouping ID Range 1 to 4094
IGMP Groups 4096
MAC Table Size 16 K
Packet Buffer Size 12 Mbits
  • Serial Interface
Console Port RS-232 (RJ45)
  • USB Interface
Storage Port USB Type A
  • Power Parameters
Input Voltage -HV models:
110-220 VAC, 110-220 VDC (88 to 300 VDC, 85 to 264 VAC)

-WV models:
24-48 VDC (18 to 72 VDC)

Note: Both -HV and -WV models support dual power inputs with a single power module.
Input Current -HV models:
0.5 A @ 110-220 VAC
0.3 A @ 110-220 VDC

-WV models:
1.1 A @ 24-48 VDC
Alarm Contact Channels Resistive load: 1 A @ 24 VDC
Overload Current Protection Supported
Reverse Polarity Protection Supported
  • Physical Characteristics
IP Rating IP30
Dimensions (without ears) 74 x 148 x 120 mm (2.91 x 5.83 x 4.72 in)
Weight 1476 g (3.25 lb)
Installation DIN-rail mounting
  • Environmental Limits
Operating Temperature -40 to 75°C (-40 to 167°F) -40 to 85°C (-40 to 185°F) for 16 hrs (tested in accordance with IEC 60068-2-2)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/35
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
EN 61000-4-11
Power Substation IEC 61850-3 Edition 2.0 Class 2 IEEE 1613
Railway EN 50121-4
Maritime -WV models:
DNV
IEC 60945
Safety IEC 62368-1
UL 62368-1
  • MTBF
Time 688,584 hrs
Standards Telcordia (Bellcore) Standard TR/SR
  • Warranty
Warranty Period 5 years

Descarca documentatie
