UG67

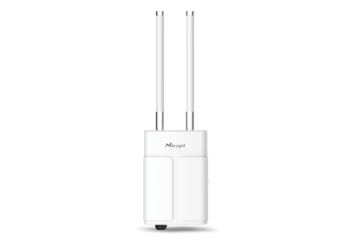

UG67 is a robust 8-channel outdoor LoRaWAN gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG67 supports connection with more than 2000 nodes. UG67 has line of sight up to 15 km and IP67 waterproof case, which is ideally suited to smart agriculture, smart metering and many other outdoorapplications. UG67 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated main stream network servers (such as The Things Stack, ChirpStack, etc.), built-in network server and Milesight Development Platformfor easy deployment.

Features:

• Quad-core industrial processor with big memory
• Equip with SX1302 chip, handing a higher amount of traffic with lower consumption
• 8 half/full-duplex channels
• IP67 waterproof enclosure and industrial design for harsh environment applications
• Wall or pole mounting optional
• PoE or DC supply optional
• Capacitor for sending alarms in case of power failure
• Multi backhaul backups with Ethernet, cellular (4G) and Wi-Fi
• Enable security communication with multiple VPNs like IPsec/OpenVPN/LT2P/PPTP/DMVPN/WireGuard
• Devicehub and Milesight Development Platformprovide easy and centralized management of remote devices
• Compatible with main stream network servers like The Things Stack, ChirpStack, Actility, AWS, etc.
• Detect and analyze the noise level andprovideintuitive diagram for deployment
• Built-in network server and MQTT(s)/HTTP(s)API for easily integration
• Support BACnet/IP and Modbus to integrate LoRaWAN data to BMS/PLC systemeasily
• Embedded Python SDK for users secondary development
• Fast and user-friendly programming by Node-RED development tool
