UG65

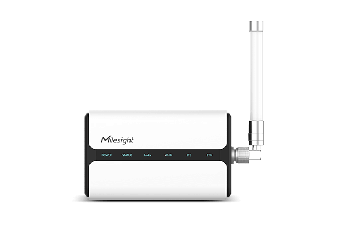

UG65 is a robust 8-channel indoor LoRaWAN gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG65 supports connection with more than 2000 nodes. UG65 has line of sight up to 15 km and can cover about 2 km in urbanized environment, which is ideally suited to smart office, smart building and many other indoor applications. UG65 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated main stream network servers (such as The Things Stack, ChirpStack, etc.) and built-innetwork server for easy deployment.

Features:

• Quad-core industrial processor with big memory
• Equip with SX1302 chip, handling a higher amount of traffic with lower consumption
• 8 half/full-duplex channels
• IP65 enclosure and industrial design for parts of outdoor environment applications like eaves
• Desktop, wall or pole mounting
• Multi backhaul backups with Ethernet, cellular(4G) and Wi-Fi
• DeviceHub and Milesight Development Platform provide easy and centralized management of remote devices
• Enable security communication with multiple VPNs like IPsec/OpenVPN/L2TP/PPTP/DMV PN/WireGuard
• Compatible with main stream network servers like The Things Stack, ChirpStack, Actility, AWS, etc. Detect and analyze the noise level andprovideintuitive diagram for deployment
• Built-in network server and MQTT(s)/HTTP(s)API for easily integration
• Support BACnet/IP and Modbus to integrate LoRaWAN data to BMS/PLC systemeasily
• Embedded Python SDK for users secondary development
• Fast and user-friendly programming by Node-RED development tool
