P1J DC adapters
Preț de la 2,70 RON Net
Dacă se plasează comanda până în ora 15:00, coletul va fi expediat în aceeași zi În stoc

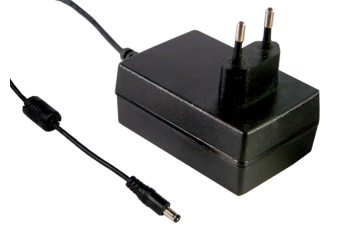

GS18E
Plug-in power supply
- wide input voltage range of 90-264VAC
- no-load power consumption <0.3W
- compliant with ErP 2 and EISA 2007
- protections: short circuit, overvoltage and overload protection
- class II insulation
- working temperature 0 ~ + 50 ° C (-20 ~ + 50 ° C for GS36)
- compliance with many standards and certificates
- fully enclosed plastic housing
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionaleUseful products
Descriere
GS series plug-in power supplies are designed to power a wide range of electronic equipment, including switches, converters, routers, laptops, cash registers, landline telephones, printers, etc. They are characterized by very good parameters, compliance with new standards and low power consumption in the state without load.
Specificație tehnică
- GS18E: Plug-in power supply 15~18W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
| GS18E05-P1J | 5V, 0~3A | +/-5% | 50mV | 76.5% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E07-P1J | 7.5V, 0~2A | +/-5% | 80mV | 80% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E09-P1J | 9V, 0~2A | +/-5% | 80mV | 80.5% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E12-P1J | 12V, 0~1.5A | +/-3% | 80mV | 81% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E15-P1J | 15V, 0~1.2A | +/-3% | 100mV | 82% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E18-P1J | 18V, 0~1A | +/-3% | 150mV | 83% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E24-P1J | 24V, 0~0.75A | +/-2% | 180mV | 85% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E28-P1J | 28V, 0~0.64A | +/-2% | 240mV | 85% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
| GS18E48-P1J | 48V, 0~0.375A | +/-2% | 240mV | 85% | P1J 2.1Øx5.5Øx11mm | 79x54x33mm |
