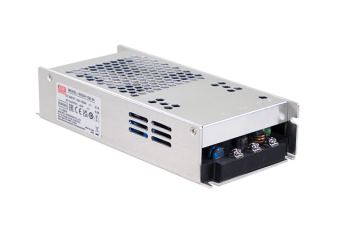

RSDH-150

Single-output converter with a wide range input voltage

Producător: MEAN WELL
Producător: MEAN WELL
  • wide input voltage range: 250~1500Vdc
  • I/O isolation 4000VDC
  • protections: overvoltage, short-circuit, overload
  • Thermal protection
  • input reverse polarity protection
  • low profile 1U
  • open-air cooling
  • built-in DC current limitation
  • operating temperature from -40~+80°C
  • low cost high reliability
  • 3 years warranty

Prices with discounts and exact stock levels are visible after logging in to the e-shop.

Preț de la 353,30 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În livrare

Livrare gratuita de la 500 RON

Vezi 4 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

The RSDH-150 is a MEAN WELL DC/DC converter with a wide input voltage range: 250~1500 Vdc. The device is dedicated to photovoltaic and wind installations, and other applications where conversion from high DC to low voltage is required. The device has the following protections: short-circuit, overload, overvoltage, temperature, reverse polarity protection.

Specificație tehnică

Model Input Output Ripple&Noise Efficiency Dimensions
RSDH-150-12 250~1500Vdc 12V, 0~10A 120mV 88% 191x86x41mm
RSDH-150-24 250~1500Vdc 24V, 0~6.2A 240mV 90% 191x86x41mm
RSDH-150-32 250~1500Vdc 32V, 0~4.68A 240mV 91% 191x86x41mm
RSDH-150-48 250~1500Vdc 48V, 0~3.12A 300mV 92% 191x86x41mm
