Producător: MEAN WELL
- wide input voltage range 80-264VAC
- compliance with medical standards (2xMOPP)
- power consumption in no-load condition <0.075W
- low leakage current <100uA
- compliance with level VI energy efficiency
- protection: short circuit, overvoltage and overload
- Class II insulation
- operating temperature -30~+70°C
- compliance with many standards and certificates
- fully enclosed plastic housing
- Plugs available as a separate item - AC Plug
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Preț de la 277,80 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
În livrare
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-

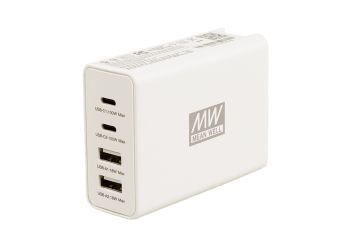

Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNGE1004 port USB GaN fast chargerÎn livrare Garanție: 277,80 RON341,69 RONIntră în cont pentru a vedea prețurile NGE1004 port USB GaN fast chargerDisponibilitate: În livrarePreț net:277,80 RON
Descriere
The MEAN WELL NGE90 medical plug-in power supply can be equipped with optional plugs enabling the power supply to operate in the EU, USA, UK. Plugs are available as a separate item.
Specificație tehnică
- NGE90I: Medical power supply 75~90W (SPECIFICATION)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| NGE90I12-P1J | 12V, 0~6.25A | +/-4% | 120mV | 90% | 62x30x85.5mm |
| NGE90I15-P1J | 15V, 0~5.5A | +/-4% | 150mV | 91% | 62x30x85.5mm |
| NGE90I18-P1J | 18V, 0~5A | +/-4% | 180mV | 91.5% | 62x30x85.5mm |
| NGE90I24-P1J | 24V, 0~3.75A | +/-3% | 240mV | 92% | 62x30x85.5mm |
| NGE90I48-P1J | 48V, 0~1.875A | +/-3% | 240mV | 92% | 62x30x85.5mm |
| NGE90I55-P1J | 55V, 0~1.64A | +/-3% | 240mV | 92% | 62x30x85.5mm |
