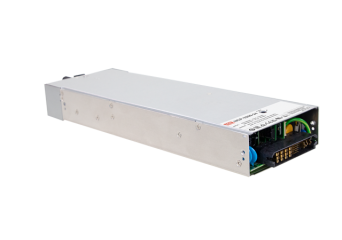

main product photo

NCP-3200

System of modular power supplies with battery charger mode for RACK cabinets

Producător: MEAN WELL
Producător: MEAN WELL
  • Wide input voltage range: 90 ~ 264VAC, 127 ~ 400VDC
  • Efficiency up to 94.5%
  • Selectable operating mode: power adapter / charger (24V/48V models)
  • Selectable 2 or 3 step charging curve
  • Ability to remotely control the output current and voltage
  • MOSFET transistors supporting the hot-swap function
  • Possibility of parallel connection of up to 4 NCP-3200 modules using the DHP-1UT-B module and up to 10
  • DHP-1UT-B modules in parallel
  • Built-in IIC, PMBus/CANBus interface
  • Short-circuit, over-current, over-voltage and temperature protection
  • Rack mounting - 1U profile
  • 5 years warranty
Preț de la 3.299,20 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 3 model

Promocja cenowa na model HDR-15-5

NCP-3200

NCP-3200

Modele

Descriere

The NCP-3200 is a 3200W single-output AC/DC power supply dedicated for use with the DHP-1UT-B enclosure in rack cabinets. The power supply is available in three versions of the output voltage: 24V, 48V and 380V. The input voltage range is: 90 ~ 264VAC, 127 ~ 400VDC.

Models NCP-3200-24 and NCP-3200-48 have the function of switching to battery charger mode. It is possible to choose a 2 or 3-stage charging curve. Changes in charging parameters are made via the PMBus / CANBus interface or by means of an external MEAN WELL SBP-001 programmer.


The device has extensive functions of remote communication. Using the PMBus interface, it is possible to remotely change the output current and voltage, remotely turn the module on and off. PMBus communication also enables constant viewing and monitoring of the device's operating status, output and input parameters. The operating status of the device is also shown by the LED located on the housing.

Thanks to the possibility of connecting up to 4 modules into one system using the DHP-1UT-B housing and connecting up to 10 systems in parallel, the device can be used, for example, as a charging station for electric vehicles.

The ability to combine modules allows you to create a centrally controlled DC power system for various industrial processes.

In addition to the above-mentioned applications, MEAN WELL NCP-3200 will also be used, for example, in powering large exchanges and telecommunication transmitters, and (thanks to remote control functions) in redundant power supply systems.

Specificație tehnică

  • NCP-3200: System of modular power supplies with battery charger mode - SPECIFICATION
Model Output Tolerance Ripple&Noise Efficiency Dimensions
NCP-3200-24 24V, 133A +/-1% 300mV 93,5% 325.8x107x41mm
NCP-3200-48 48V, 67A +/-1% 480mV 94,5% 325.8x107x41mm
NCP-3200-380 380V, 9.6A +/-1% 4000mV 94% 325.8x107x41mm

Descarca documentatie
