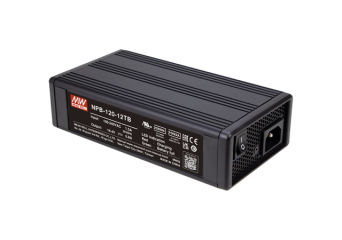

NPB-120

Desktop battery charger: NPB-120-12, NPB-120-24, NPB-120-48

Producător: MEAN WELL
Producător: MEAN WELL
  • Wide input voltage range: 90 ~ 264VAC, 127 ~ 370VDC
  • Charging different types of batteries: lead-acid, lithium-ion (nickel-cobalt and LiFePO4)
  • Cooling with free air circulation
  • Regulation of output current and voltage
  • Choice of 2 or 3 step charge curve
  • Low power consumption in no-load state (<0.15W)
  • A wide range of acceptable operating temperatures: -30 ~ + 70 ° C
  • Short-circuit, overvoltage, temperature and reverse polarity protection
  • LED to indicate device status
  • Compliance with EN62368, EN60335-1 / 2-29 standards
  • 3-year warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Preț de la 240,10 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 9 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

NPB is a series of chargers dedicated to lead-acid and lithium-ion batteries. Works with both nickel-cobalt and iron-phosphate (LiFePO4) batteries. The NPB-120 model has a nominal power of 120W and offers an output voltage (depending on the model): 12, 24 or 48VDC. Both the charging current and voltage can be easily adjusted using the potentiometers on the housing. The device offers a 2 or 3 step charging curve. The selection is made with a switch on the housing. Despite the use of free air cooling, the permissible operating temperature range is: -30 ~ + 70 ° C. Depending on the model, the NPB series can be equipped with an XLR, AD1 output or a screw terminal.



Application examples:

  • Charging batteries, e.g. electric tools
  • Charging scooters, bicycles and other electric vehicles
  • Small power backup systems



Specificație tehnică

Model Output Efficiency Plug DImensions
NPB-120-12 12V, 6.8A 86.5~87% XLR/AD1/screw treminal 180x96x49mm
NPB-120-24 24V, 4A 89~89.5% XLR/AD1/screw treminal 180x96x49mm
NPB-120-48 48V, 2A 90.5% XLR/AD1/screw treminal 180x96x49mm
