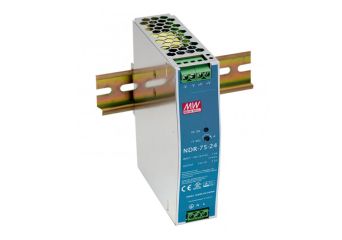

NDR-75
75W economical DIN rail power supply
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
- 100% full load burn-in test
- 3 years warranty
Prices with discounts and exact inventory can be seen after logging into the e-store.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNDR-75-12DIN rail power supply 75W 12V 6.3AÎn stocGaranție: 117,50 RON144,52 RONIntră în cont pentru a vedea prețurile NDR-75-12DIN rail power supply 75W 12V 6.3ADisponibilitate:În stocPreț net:117,50 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNDR-75-24DIN rail power supply 75W 24V 3.2AÎn stocGaranție: 117,50 RON144,52 RONIntră în cont pentru a vedea prețurile NDR-75-24DIN rail power supply 75W 24V 3.2ADisponibilitate:În stocPreț net:117,50 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNDR-75-48DIN rail power supply 75W 48V 1.6AÎn stocGaranție: 117,50 RON144,52 RONIntră în cont pentru a vedea prețurile NDR-75-48DIN rail power supply 75W 48V 1.6ADisponibilitate:În stocPreț net:117,50 RON
Descriere
NDR-75 is one economical slim 75W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 32mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. NDR-75 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 89%, the entire series can operate at the ambient temperature between -20℃ and 70℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make NDR-75 a very competitive power supply solution for industrial applications.
Specificație tehnică
NDR-75 series → Manufacturer documentation (specification, certificates, others)
| Model | Efficiency | Output parameters | Output voltage adjustment | Output voltage tolerance | Rated power | Dimensions (W.xH.xD.) |
| NDR-75-12 | 85.5% | 12 V, 0~6.3 A |
12~14 V | +/-2% | 75.6 W | 32x125.2x102mm |
| NDR-75-24 | 88% | 24 V, 0~3.2 A |
24~28 V | +/-1% | 76.8 W | |
| NDR-75-48 | 89% | 48 V, 0~1.6 A |
48~55 V | +/-1% | 76.8 W |
