- battery power module in UPS systems
- connection parallel to the DC bus
- designed for 24V systems
- load current up to 20A
- built-in battery test function
- protection against reverse battery connection
- relay connectors and LEDs informing about the functioning of the DC power bus, failure and battery discharge
- open air cooling
- width 40mm
- working temperature -30 ~ + 70 ° C
- compliance with a number of standards and certificates
- 3-year warranty
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDUPS20UPS module 24~29V 20AÎn stocGaranție: 132,30 RON162,73 RONIntră în cont pentru a vedea prețurile DUPS20UPS module 24~29V 20ADisponibilitate:În stocPreț net:132,30 RON
Descriere

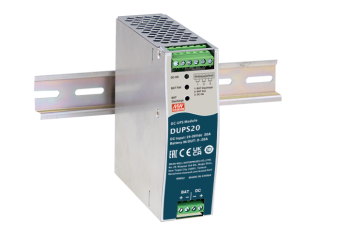

The DUPS20 is a DIN rail UPS module. In conjunction with the power supply and an external battery, it forms an emergency power supply system. In the event of a power failure, the DUPS20 automatically switches the load to battery power, thus ensuring the continuous operation of the device. DUPS20 has a built-in battery test function and protection against reverse polarity. LEDs and relay connectors provide information about the functioning of the DC power bus, failure and battery discharge. The product will work in data centers, emergency lighting, UPS systems, central monitoring systems, etc.
Specificație tehnică
- DUPS20: UPS module for DIN rail 20A SPECIFICATION
| Model | DC output BUS | DC BUS current | Dimension |
| DUPS20 | 24~29V | 20A | 40x125.2x113.5mm |
