MDD02-N

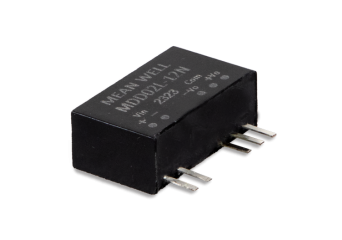

MEAN WELL MDD02-N - 1W Medical DC / DC Converter with Dual Output
- SIP7 package with international standard pinout
- Operating temperature range -40 ~ +95°C
- Comply with IEC/UL62368-1 and LVD IEC60601-1
- Medical safety approved (1xMOPP/2xMOOP) according to
IEC60601-1 - Low patient leakage current <2uA
- Protections: Short circuit (Continuous)
6kVDC hight I/O isolation (Reinforced insulation) - 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
MDD02-N
Descriere
MEAN WELL MDD02-N series are 2W isolated and unregulated module type medical grade Dual Output DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40~+95°C, 6KVDC I/P-O/P hight isolation voltage, short circuit protection, etc. The models account for different input voltage 5V/12V/24V+10%, and various output voltage 3.3V/5V/12V/15V, which are suitable for medical systems, ultra low leakage current or industrial control, telecommunication field, distributed power architecture, and so on.
Specificație tehnică
- MDD02-N: 2W Dual Output Medical DC/DC Converter → Manufacturer documentation (specification, certificates, others)
| Model | Input | Output | Efficiency | Dimensions |
| MDD02L-05N | 5V+/-10% | ±5VDC | 82% | 19.7x7.1x11.5mm |
| MDD02L-12N | 5V+/-10% | ±12VDC | 84% | 19.7x7.1x11.5mm |
| MDD02L-15N | 5V+/-10% | ±15VDC | 86% | 19.7x7.1x11.5mm |
| MDS02M-05N | 12V+/-10% | ±5VDC | 80% | 19.7x7.1x11.5mm |
| MDS02M-12N | 12V+/-10% | ±12VDC | 83% | 19.7x7.1x11.5mm |
| MDS02M-15N | 12V+/-10% | ±15VDC | 84% | 19.7x7.1x11.5mm |
| MDS02M-05N | 12V+/-10% | ±5VDC | 83% | 19.7x7.1x11.5mm |
| MDS02N-12N | 24V+/-10% | ±12VDC | 83% | 19.7x7.1x11.5mm |
| MDS02N-15N | 24V+/-10% | ±15VDC | 84% | 19.7x7.1x11.5mm |
